Metra Electronics 95-8733B Installation Instructions

For mercedes-benz c-class 2008-2011 (w204)

Download this manual

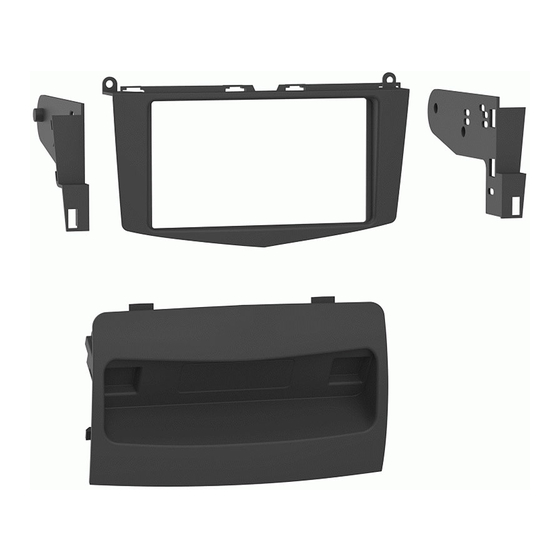

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Button housing • D) Button trim panel • E) Button blanks • F) Button panel hooks

• G) #4 x 3/8" Phillips screws (9) • H) Panel clips (2)

Metra. The World's Best Kits.

Mercedes-Benz C-class

Visit

MetraOnline.com

for more detailed information about the product and up-to-date vehicle

specific applications

KIT FEATURES

• ISO DDIN radio provision

• Painted scratch resistant matte black

MetraOnline.com

2008-2011

(W204)

95-8733B

I N S TA L L AT I O N I N S T R U C T I O N S

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Preparation .......................................................3

Kit assembly ...........................................................3

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: See metraonline.com or

axxessinterfaces.com for interface/harness.

Antenna Adapter: 40-EU56

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• T-20 Torx driver

Attention!

Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

REV. 5/5/20 INST95-8733B

Page 1 When testing the aftermarket equipment, ensure that all factory equipment is connected before cycling the key to ignition. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 5/5/20 INST95-8733B...
Page 2 DASH DISASSEMBLY 1. Unclip the air vents, unplug and remove 4. Unclip the trim at the bottom of the (do not cycle the key while unplugged). radio and unscrew the factory buttons to (Figure A) be relocated to the button trim panel in kit assembly.
Page 3 KIT PREPARATION KIT ASSEMBLY 1. Secure the button panel hooks to the 1. Route the factory button wiring up to button housing with (4) #4 x 3/8” the top of the dash opening. Philips screws included. (Figure A) 2. Attach the radio brackets to the radio 2.
Page 4 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 5/5/20 INST95-8733B...
