Metra Electronics 95-8904B Installation Instructions

Car radio kit

Download this manual

INSTALLATION INSTRUCTIONS FOR PART 95-8904B

METRA. THE WORLD'S BEST KITS.™

1-800-221-0932

metraonline.com

INSTALLATION INSTRUCTIONS FOR PART 95-8904B

APPLICATIONS

SUBARU

LEGACY & OUTBACK

(non-NAV models)

95-8904B

KIT FEATURES

• DDIN radio provision

• ISO stacked provision

• Painted scratch resistant matte black

Note: Minor sub-dash modifications required. Part

# 95-8903B does not require these modifications.

KIT COMPONENTS

• A) DDIN Trim Plate • B) DDIN Brackets

TOOLS REQUIRED

• Phillips Screwdriver • Panel Removal Tool • Utility Knife

• Small Flat Blade Screwdriver • Hacksaw (or similar cutting tool)

METRA. THE WORLD'S BEST KITS.™

1-800-221-0932

2010

WIRING & ANTENNA CONNECTIONS

(SOLD SEPARATELY)

• 70-8901 Subaru Harness 1990-UP

• 70-7552 Nissan Harness 2007-UP

• 40-SB10 Subaru Antenna Adapter 2005-UP

metraonline.com

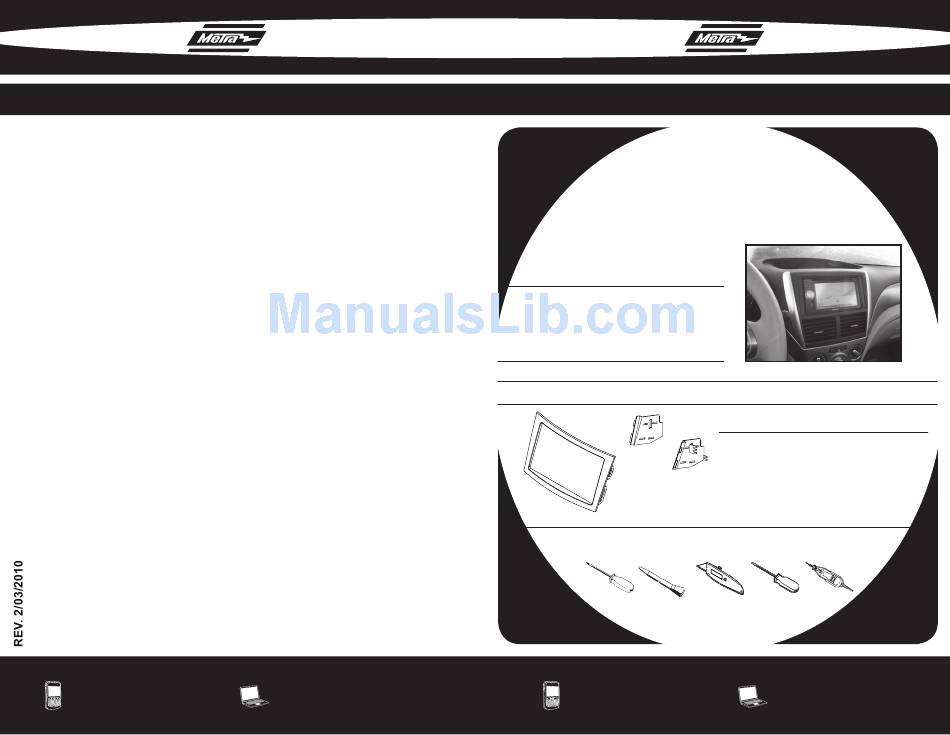

Page 1 INSTALLATION INSTRUCTIONS FOR PART 95-8904B METRA. THE WORLD’S BEST KITS.™ 1-800-221-0932 metraonline.com © COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION INSTALLATION INSTRUCTIONS FOR PART 95-8904B APPLICATIONS SUBARU LEGACY & OUTBACK 2010 (non-NAV models) 95-8904B KIT FEATURES • DDIN radio provision • ISO stacked provision •...
Page 2: Dash Disassembly
95-8904B TABLE OF CONTENTS DASH DISASSEMBLY • 2010 SUBARU LEGACY/OUTBACK ..1 KIT ASSEMBLY • 2010 SUBARU LEGACY/OUTBACK • DDIN / STACKED ISO HEAD UNIT PROVISION. . 2 *NOTE: Refer Also to the instructions included with the aftermarket radio.
Page 3 95-8904B NOTES 95-8904B DASH DISASSEMBLY 2010 SUBARU LEGACY / OUTBACK Disconnect the negative battery terminal to prevent an accidental short circuit. Unclip and remove the radio trim panel including the a/c vents. (Fig. A) Remove (4) Phillips screws securing the factory radio.
