Metra Electronics 95-8152 Installation Instructions Manual

Car radio kit

INSTALLATION INSTRUCTIONS FOR PART 95-8152

APPLICATIONS

LEXUS GS 300/400

1998-2005

Not For Use In Vehicles

With Factory Navigation

95-8152

KIT FEATURES

• Double DIN Radio Provision

• Stacked ISO Mount Units Provision

KIT COMPONENTS

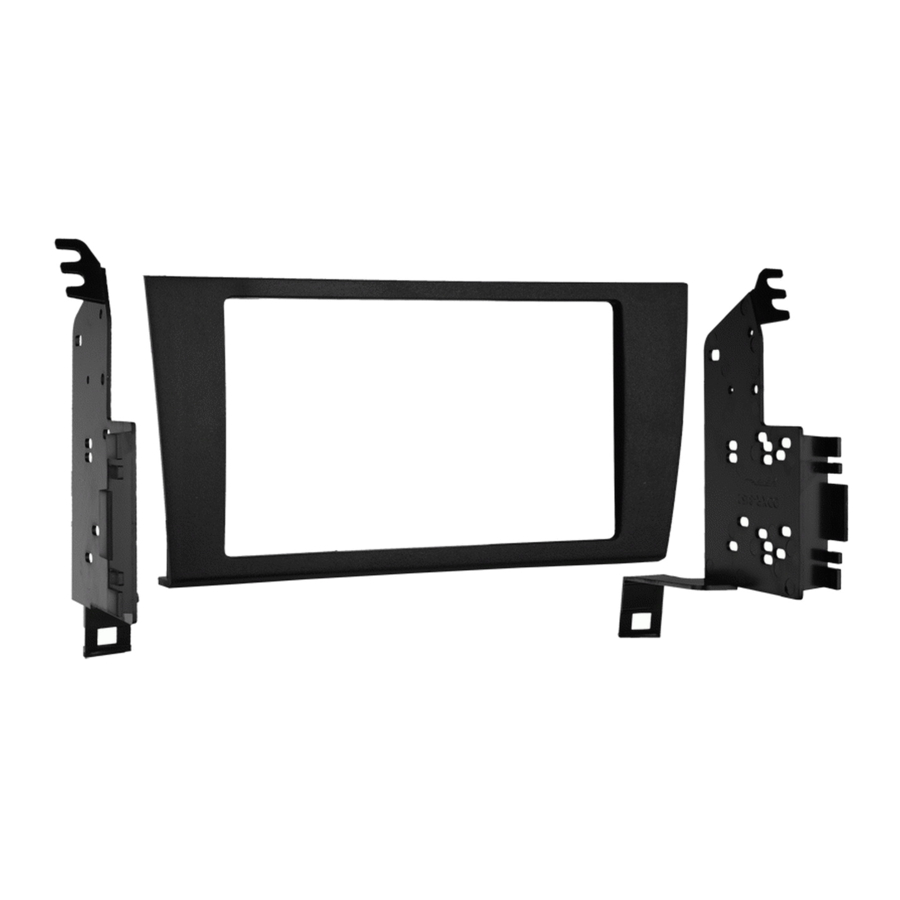

A) Double DIN Radio Housing B) Double DIN Brackets

TOOLS REQUIRED:

Small Flat Blade Screwdriver/ Panel Removal Tool

• Phillips Screwdriver

1-800-221-0932

www.metraonline.com

Table of Contents

Need help?

Do you have a question about the 95-8152 and is the answer not in the manual?

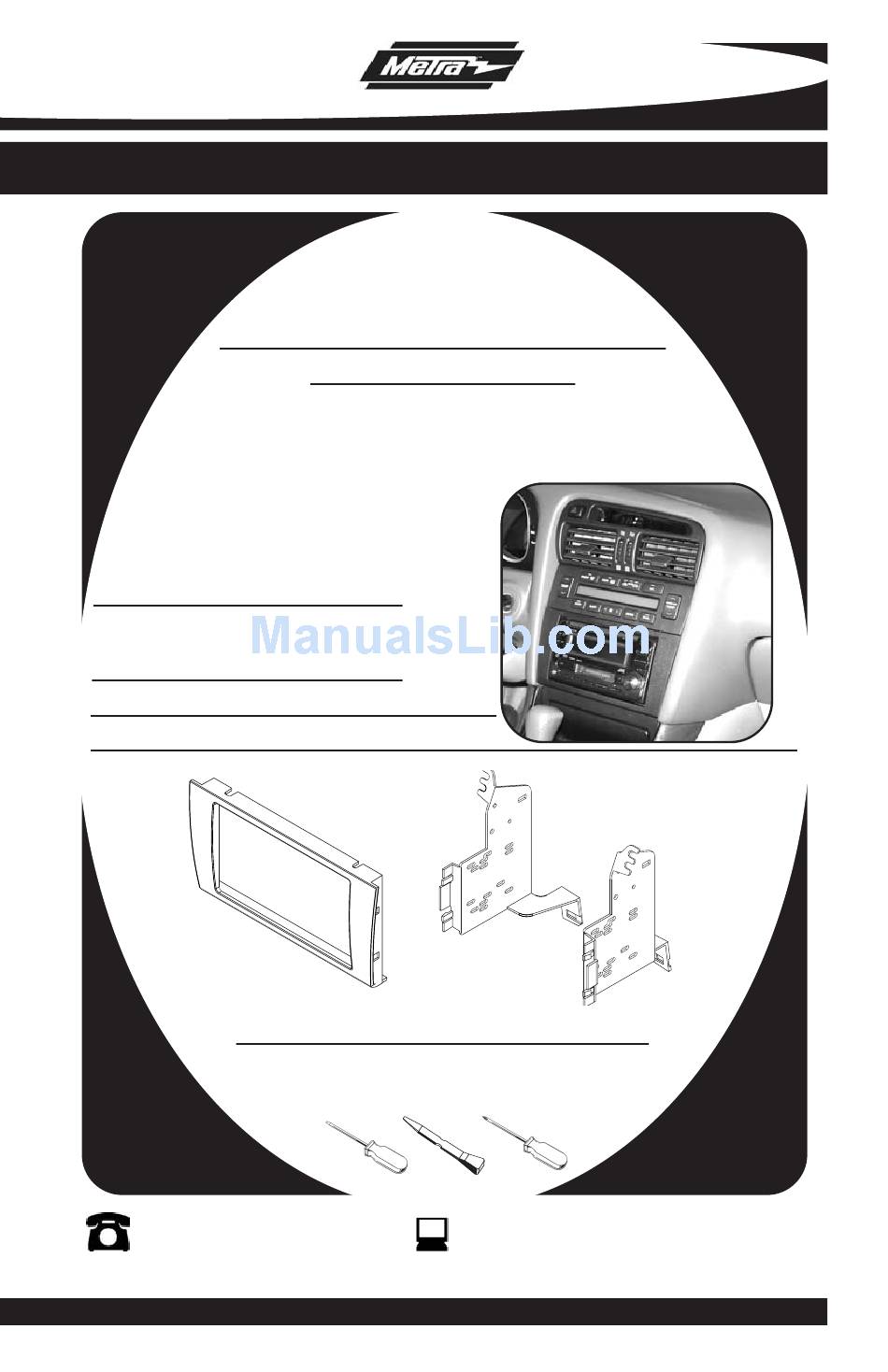

Page 1 INSTALLATION INSTRUCTIONS FOR PART 95-8152 APPLICATIONS LEXUS GS 300/400 1998-2005 Not For Use In Vehicles With Factory Navigation 95-8152 KIT FEATURES • Double DIN Radio Provision • Stacked ISO Mount Units Provision KIT COMPONENTS A) Double DIN Radio Housing B) Double DIN Brackets...
Page 2 Final Assembly ......... . . 4 *Note: Refer also to the instructions included with the aftermarket radio. 95-8152 ....1,2...
Page 3 Unsnap and remove vent/clock assembly from above climate con- trols. (Figure A) Remove two screws from behind vent/clock assembly. (Figure B) Unsnap and remove ashtray assembly from below radio. (Figure C) Continued on next page. 95-8152 DASH DISASSEMBL Y...
Page 4 (Figure D) Unplug and remove radio/climate controls assembly. (Figure E) Remove side brackets to separate the radio from the climate controls. (Retain the climate controls for reuse during kit assembly.) (Figure F) Continue to kit assembly. 95-8152 DASH DISASSEMBL Y...
Page 5 Double DIN or stacked ISO mount units to the assembly using the screws supplied with the Double DIN or stacked ISO mount units. (Figure C) Continue to final assembly. 95-8152 KIT ASSEMBL Y DOUBLE DIN RADIO...
Page 6 *NOTE: When a Black wire is not present, ground radio to vehicle chassis. All colors may not be present on all leads due to manufacturer’s specifications. 95-8152 FINAL ASSEMBL Y (A) Strip wire ends back 1/2" B) Twist ends together...
Page 7 95-8152 NOTES...
