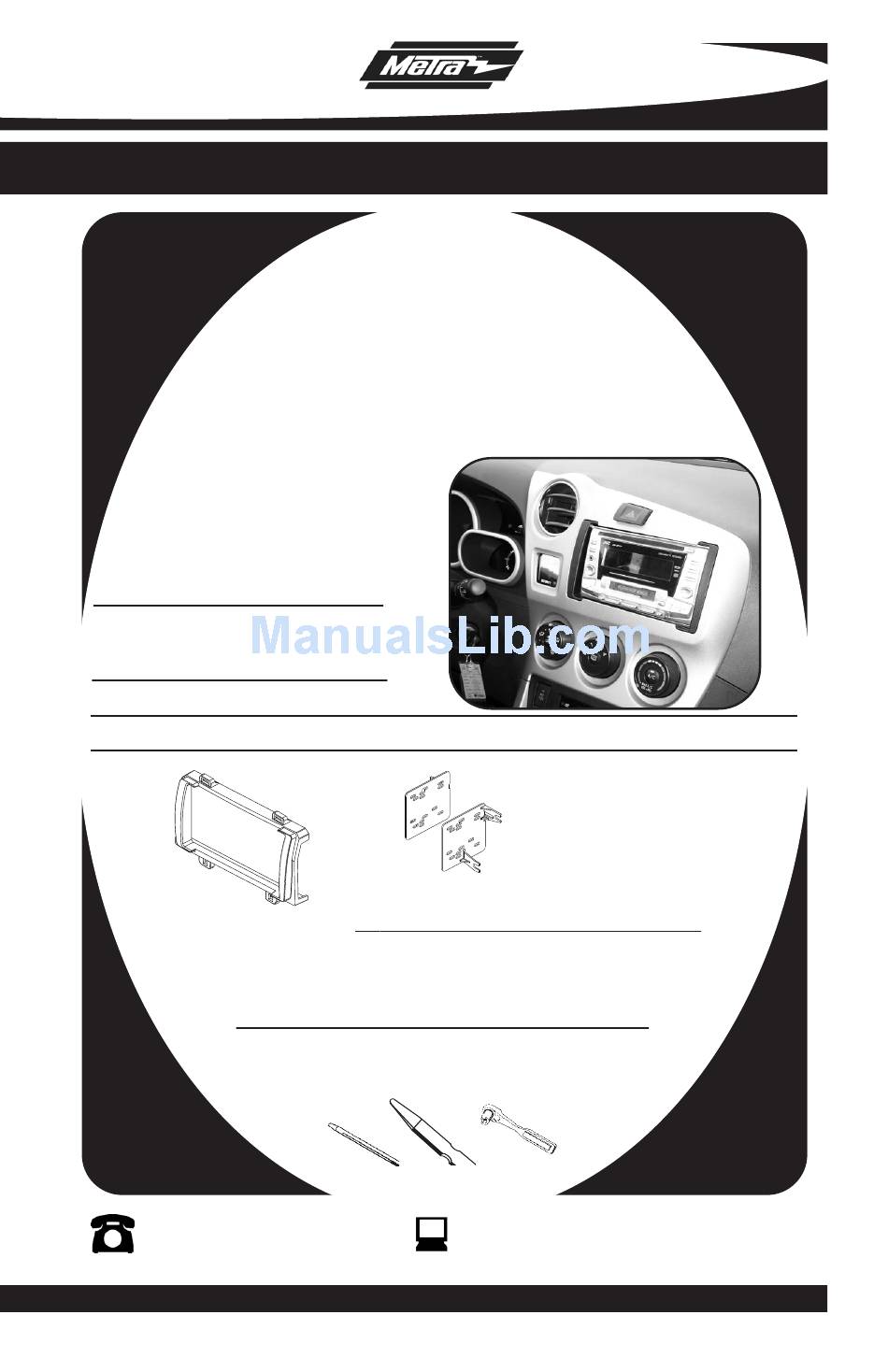

INSTALLATION INSTRUCTIONS FOR PART 95-8224
(Excluding Factory Navigation Models)
95-8224
KIT FEATURES
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
KIT COMPONENTS
• A) Double Din Trim Plate • B) Double DIN Brackets
A
1-800-221-0932
© COPYRIGHT 2010
APPLICATIONS
Toyota Matrix 2009-10
Pontiac Vibe 2009-10
B
Harness & Antenna Connections (sold separately)
• 70-1761 - Toyota Harness 87-up
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Socket Set
METRA ELECTRONICS CORPORATION
www.metraonline.com
Advertisement
Related Manuals for Metra Electronics 95-8224
Summary of Contents for Metra Electronics 95-8224
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 95-8224 Toyota Matrix 2009-10 Pontiac Vibe 2009-10 (Excluding Factory Navigation Models) 95-8224 KIT FEATURES • Double DIN Radio Provision • Stacked ISO Mount Units Provision KIT COMPONENTS • A) Double Din Trim Plate • B) Double DIN Brackets...
-
Page 2: Table Of Contents
Final Assembly ......... . . 4 *Note: Refer also to the instructions included with the aftermarket radio. 95-8224... -
Page 3: Toyota Matrix/Pontiac Vibe 2009-10
Unclip and remove the radio trim panel including the a/c vent. (Figure A) Remove (4) 10 MM bolts securing the radio. Unplug and remove the radio. (Figure B) Continue to kit preparation. 95-8224 DASH DISASSEMBLY PASSENGER SECURITY... -
Page 4: Kit Preparation
95-8224 KIT PREPARATION DOUBLE DIN RADIO PROVISION STACKED ISO MOUNT UNITS Note: Refer also to the instructions included with the aftermarket radio. Snap the Double DIN Trim plate into the rear of the factory radio trim panel. (Figure A) Continue to kit assembly. -
Page 5: Double Din Radio Provision
95-8224 KIT ASSEMBLY DOUBLE DIN RADIO PROVISION STACKED ISO MOUNT UNITS PROVISION Note: Refer also to the instructions included with the aftermarket radio. Attach the Double DIN brackets to the Double DIN or the stacked ISO mount unit(s) using the screws supplied with the unit(s). -
Page 6: Final Assembly
Dimmer ....Orange / White *NOTE: When a Black wire is not present, ground radio to vehicle chassis. All colors may not be present on all leads due to manufacturer’s specifications. 95-8224 FINAL ASSEMBLY (A) Strip wire ends back 1/2" B) Twist ends together... - Page 7 95-8224 NOTES...
