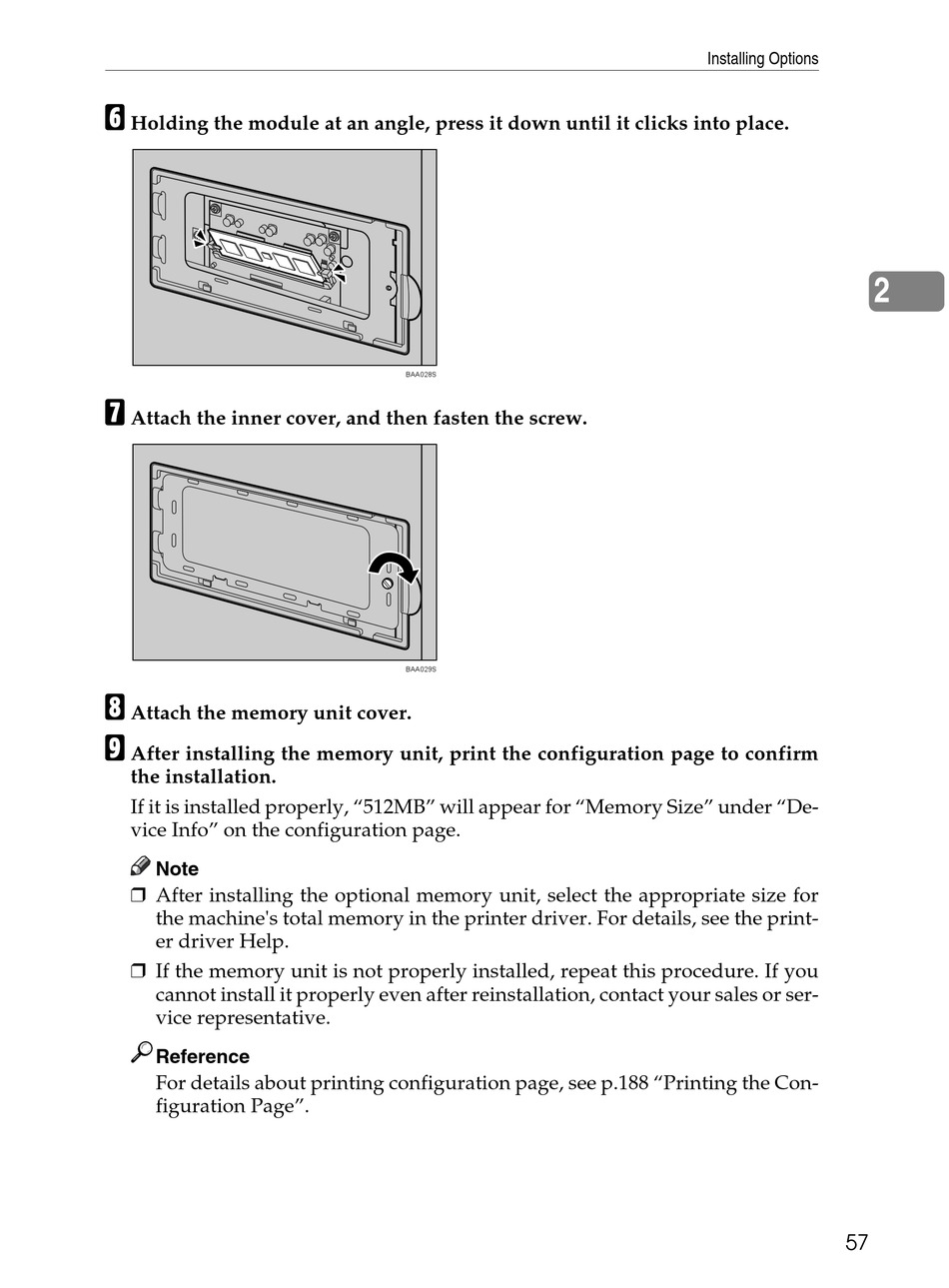

Ricoh Aficio SPC222SF User Manual page 65

F
Holding the module at an angle, press it down until it clicks into place.
G
Attach the inner cover, and then fasten the screw.
H
Attach the memory unit cover.
I
After installing the memory unit, print the configuration page to confirm
the installation.
If it is installed properly, "512MB" will appear for "Memory Size" under "De-
vice Info" on the configuration page.
Note
❒ After installing the optional memory unit, select the appropriate size for
the machine's total memory in the printer driver. For details, see the print-
er driver Help.
❒ If the memory unit is not properly installed, repeat this procedure. If you
cannot install it properly even after reinstallation, contact your sales or ser-
vice representative.
Reference
For details about printing configuration page, see p.188 "Printing the Con-
figuration Page".
BAA028S
BAA029S
Installing Options
2
57
