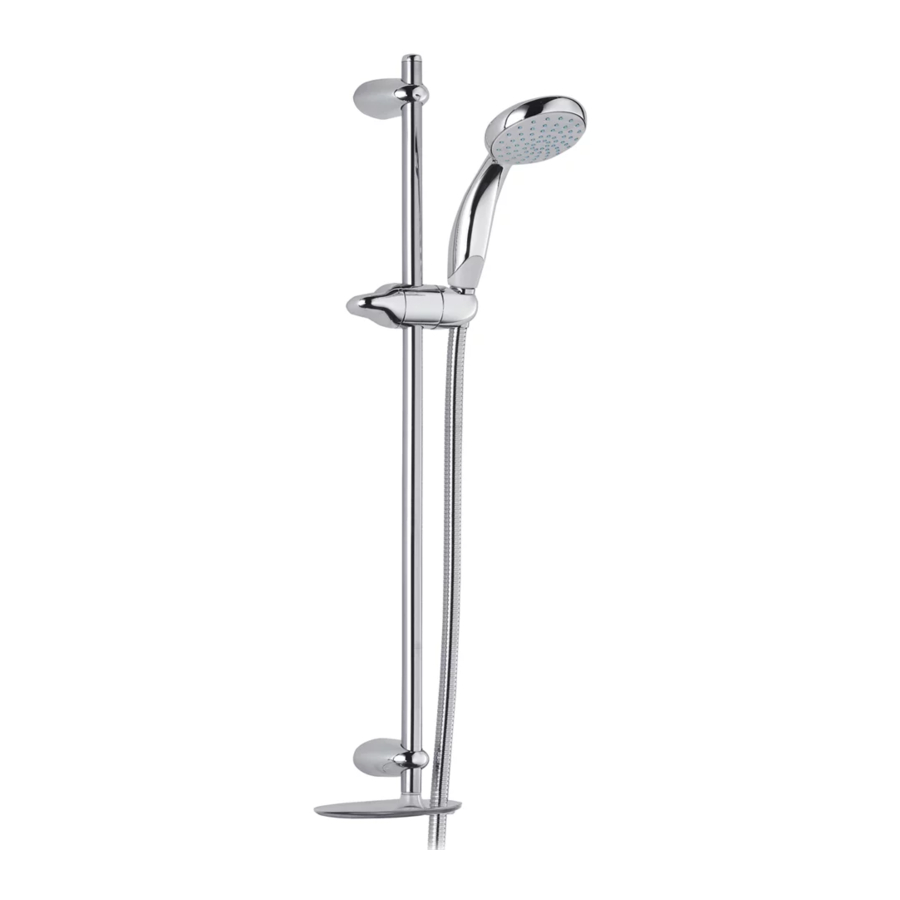

Kohler Mira Beat, Mira Nectar - Easy Fit Shower Fittings Manual

General

1. Make sure that the shower fittings are installed by a competent installer.
2. Installations must comply with Water Regulations (Bye-Laws, Scotland), and any other Local Regulations and Building Regulations in force at the time of installation.
3. The shower fittings should be positioned at a convenient height for all the family. Position the fittings to spray across rather than towards the opening of the cubicle and also away from the shower control. Avoid layouts where the shower hose will be sharply kinked. This may reduce the life of the hose.
4. A hose retaining ring is supplied to prevent the showerhead from dropping below the spill over level of the bath or shower, which could lead to contamination from back-siphonage.
   The position of the shower and shower fittings must provide a minimum gap of 25 mm between the showerhead and the spill over level of any bath, shower tray or basin and 30 mm between the showerhead and the spill over level of any toilet or bidet.
5. Do not fit any form of flow control in the outlet pipe work if the shower fittings are installed in conjunction with a product that requires the fittings to act as a vent (e.g. an electric shower).
6. Wall screws and wall plugs are supplied with this product.
   Special consideration should be given to the fixing arrangements when installing onto a dry lined, stud partition, shower cubicle or laminated panel wall structures. Installers may wish to obtain alternative proprietary cavity fixings, or choose other options, however, these methods of fixing are beyond the scope of this guide.
   Hose retaining ring fitted and shower fittings fixed at a suitable height preventing dirty water backflow


Installation

1. We recommend that the slide bar is installed with the ends flush. Mark the wall fixing positions and drill two holes to suit the wall fixings.

   Do not drill into cables or pipes in the wall. Note: Installation fixing centres are 630 mm for the 660 mm slide bar and 520 mm for the 550 mm slide bar.
2. Install the wall plugs and the mounting brackets and secure with the wall screws.
   Note: Ensure locking peg orientated correctly.
   Note: Check for vertical alignment before tightening. The mounting brackets are slotted to aid this alignment. Then fully tighten.
3. Install the clamp bracket, the hose retaining ring (smallest hole) and the slide bar supports to the slide bar.
   Note: Orientate hole in line with locking peg on mounting bracket.
4. Ensure an equal length of slide bar protrudes from the top and bottom slide bar support (or flush with the end of the slide bar for new installations) and push onto mounting bracket. Ensure it clicks into place.

   Ensure that the locking peg clicks in and is fully engaged in the hole in the slide bar support.
5. Install the end caps, push fit into both ends of the slide bar.
   Note: Slide bar support removal. Using a suitable tool, push and hold down the locking peg through the hole in the slide bar support and pull off.

Hose and Showerhead Installation

1. Fit a hose seal into the conical nut and screw onto the outlet of the shower.

   DO NOT over tighten.
2. Feed the hose through the hose retaining ring.
3. Fit a hose seal into the conical nut and screw onto the showerhead.

   DO NOT over tighten.
4. Place the showerhead assembly into the clamp bracket assembly.
5. Only use the supplied handset with this product.

User Instructions

Clamp Bracket Adjustment


Slide bar must not be used as a grab rail.

DO NOT force assembly on to the mounting brackets, re-align slide bar support if required.

User Maintenance

Always read the IMPORTANT SAFETY INFORMATION in your shower user guide.

Cleaning
Many household and commercial cleaners, including hand and surface cleaning wipes contain abrasives and chemical substances that can damage plastics, plating and printing and should not be used. These finishes should be cleaned with a mild washing up detergent or soap solution, and then wiped dry using a soft cloth.

De-scaling the Showerhead and Inspecting the Hose

Keeping the Showerhead and Hose clean and free from blockage will make sure your shower performs to its optimum. The showerhead MUST be regularly cleaned and the hose MUST be regularly inspected to ensure there is no internal/external collapse or blockage that could reduce the water flow.

Failure to keep the showerhead nozzles clear or inspect the hose for blockage or internal/external collapse can restrict the flow rate from the showerhead. This can cause damage to the shower or may result in the temperature delivered to the user rising to unsafe levels with a risk of scalding. You MUST ALWAYS check the temperature before using the shower.

Use your thumb or a soft cloth to wipe any limescale from the soft nozzles.

Unscrew the hose from the showerhead and the shower outlet.

Inspect the hose.

Customer Service

What to do if something goes wrong
If your product does not work correctly refer to this manual for fault diagnosis and check that it is installed and commissioned in accordance with our instructions.
If this does not resolve the issue, contact us for help and advice.

	Helpdesk Service - Our Customer Services Team is comprehensively trained and can offer help and advice, spare parts and accessories. Please provide your model name or number and date of purchase.
	Showers Website (www.mirashowers.co.uk) From our website you can download additional user guides, diagnose faults, purchase our full range of accessories and popular spares and refer to our FAQs.
	Spares and Accessories - We hold the largest stocks of genuine Mira spares and accessories. Contact us for a price or visit our website to purchase items from our accessory range and popular spares.

To Contact Us

	0800 001 4040
	Fax: 01 242 282595
	E-mail: Visit www.mirashowers.co.uk/contactus
	Mira Customer Services Dept, Cromwell Road, Cheltenham, Gloucestershire, GL52 5EP

To Contact Us: Eire Only

	01 531 9337
	E-mail: CustomerServiceEire @mirashowers.com
