Handset Installation
Handset
Assembly

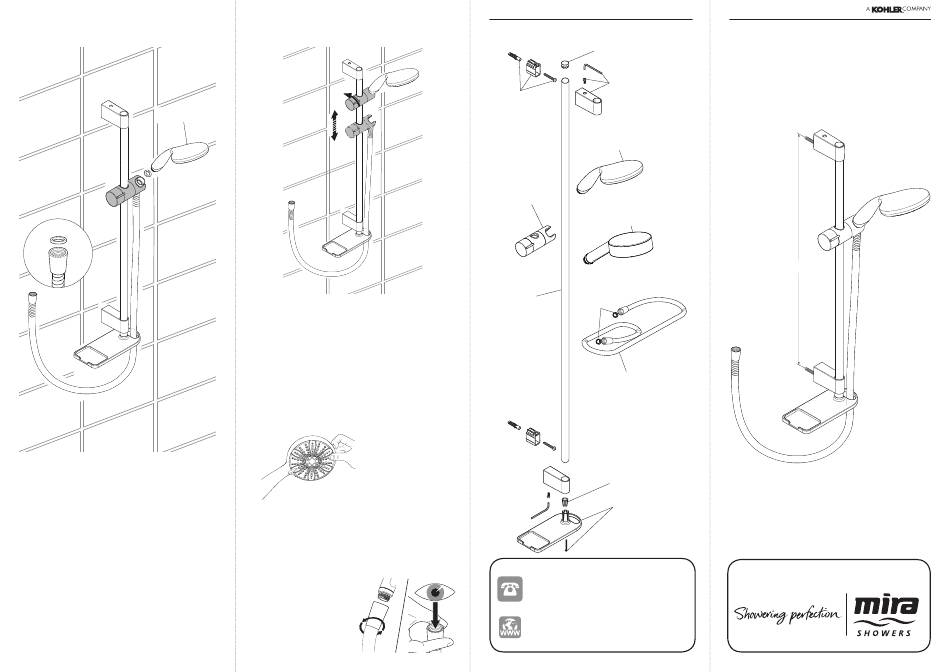

Hose and Handset Installation
1. Fit a hose seal into the conical nut and screw
onto the outlet of the shower.
Caution! Do not over tighten.
2. Feed the hose through the soap dish.
3. Fit a hose seal into the conical nut and screw
onto the handset assembly.
Caution! Do not over tighten.
4. Place the handset assembly into the clamp
bracket assembly.
6
Operation
Clamp Bracket Adjustment
1. Slide the Clamp Bracket up and down on the
Slide Rail until the Showerhead is positioned to
your preference.
Cleaning and User Maintenance
De-scaling the Showerhead
Important! Keeping the showerhead clean and
free from limescale will ensure that your shower
and showerhead continue to perform to their
maximum. A blocked showerhead can restrict the
flow rate and may cause damage to your shower.
Use your thumb or a
soft cloth to wipe any
limescale from the
nozzles
Inspecting the Hose
Important! The shower hose should be inspected
periodically for damage or internal collapse,
internal collapse can restrict the flow rate from the
showerhead and may cause damage to the shower.
1. Unscrew the hose
from the showerhead
and the shower outlet.
2. Inspect the hose.
3. Replace if necessary.
7
Spare Parts
1703.196
Cap (x2)
1740.595 (White)
1740.596 (Chrome)
Slide Bar Support (x2)
1703.194
Mounting Pack
1740.616 (Multi Mode - White)
1740.615 (Multi Mode - Chrome)

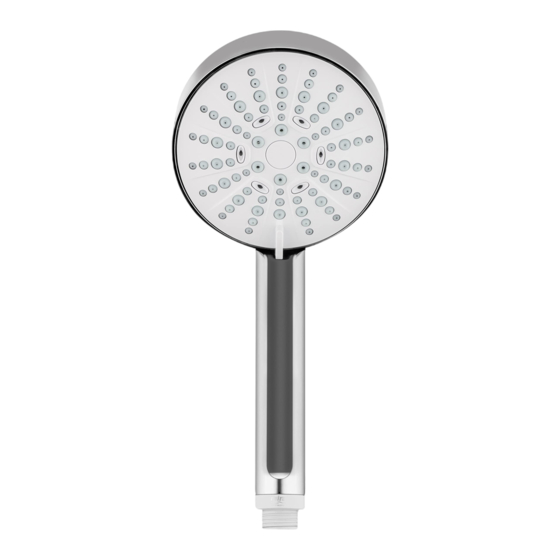

Handset Assembly
1703.202 (White)
1703.203 (Chrome)
Clamp Bracket
Assembly
1740.368 (Multi Mode - White)
1740.369 (Multi Mode - Chrome)
Handset Assembly
632.73
Hose Seal (x2)
1264164
Slide Bar
1703.210
Shower Hose (1.25 m)
1603.104
Shower Hose (Metal)
1603.137
Shower Hose (Plastic)
1703.195
Taper Block
1703.197
Soap Dish
To Contact Us: UK
0844 571 5000
Calls cost 7p per minute plus your phone
company's access charge
www.mirashowers.co.uk - Full details of
the manufacturer's guarantee is available
on the website.
© Kohler Mira Limited, October 2017
Mira Beat Shower Fittings
Installation & User Guide
6 3
5 m
m
These instructions must be left with the user
1327877-W2-A
