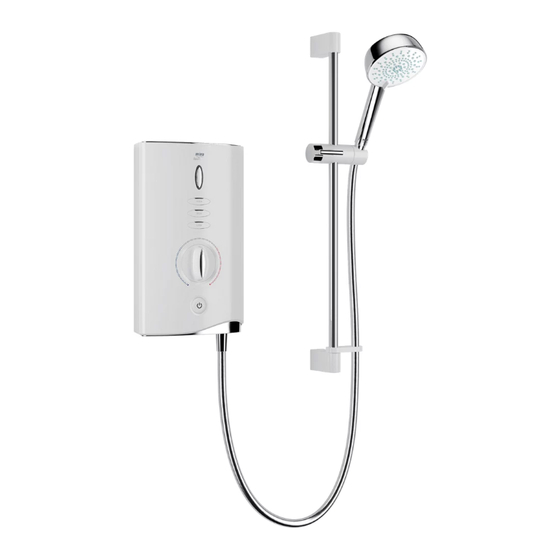

- Page 1 Mira Sport Max with Airboost 9.0 and 10.8 kW For SPARES, For Safety! ADVICE or REPAIRS Before installing please call us free or using this shower, on 0800 001 4040 you MUST read this (UK only) guide. Installation and User Guide...
-
Page 2: Important Safety Information
Important Safety Information Warning! This shower can deliver scalding temperatures, cause fire, electric shock or other personal injury if not operated, or maintained in accordance with the instructions, warnings and cautions contained in this guide and on the appliance. Please read the important safety information and the operation section of this guide before using the shower. - Page 3 DO NOT restrict the water flow from the shower outlet, temporarily bending the shower hose or blocking the shower head, such as placing against your body while in use can cause a very hot shot of water to be discharged. The outlet must not be connected to any tap or fitting other than those specified.
- Page 4 Only Kohler Mira recommended accessories should be used. DO NOT perform any unspecified modifications, or drill or cut holes in the product other than instructed by this guide.
- Page 5 DO NOT connect this shower to a Waste Water Heat Recovery System as this may cause unstable or scalding temperatures to be delivered from the shower head. Always check the water temperature is safe before entering the shower. The water supply to this product must be isolated if the product is not to be used for a long period of time.
-
Page 6: Pack Contents
Pack Contents Tick the appropriate boxes to familiarize yourself with the part names and to confirm that the parts are included. 1 x Mira Sport Max with Airboost Electric Shower 1 x Olive 1 x Compression Nut 3 x Fixing Screws ... -
Page 7: Products Covered
Introduction Thank you for purchasing a quality Mira Sport Max with Airboost Electric Shower. To enjoy the full potential of your new shower, please take time to read this guide thoroughly, and keep it handy for future reference. Products manufactured by Kohler Mira Ltd are designed to be safe provided, that they are installed used and maintained in good working order, in accordance with our instructions and recommendations. -
Page 8: Disposal And Recycling
Guarantee The Mira Sport Max with Airboost has been designed for domestic use only, Mira Showers guarantee the Mira Sport Max with Airboost against any defect in materials or workmanship for a period of two years from the date of purchase (shower fittings for one year). -
Page 9: Specifications
Specifications Sport Max with Airboost Variant Plumbing 10.8 Minimum Dynamic Pressure 70 kPa (0.7 bar)** 100 kPa (1.0 bar)** Maximum Dynamic Pressure * 500 kPa (5 bar) Minimum Static Pressure 20 kPa (0.2 bar) Maximum Static Pressure * 1000 kPa (10 bar) Maximum Inlet Temperature 30°C Minimum Inlet Temperature... - Page 10 UK & EU Conformity Information This product is in conformity with the relevant statutory requirements applicable to the product: UK Legislation: • S.I. 2016/1091 Electromagnetic Compatibility Regulations • S.I. 2016/1101 Electrical Equipment (Safety) Regulations • S.I. 2012/3032 Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment •...
-
Page 11: Installation Requirements
Installation Requirements Plumbing 1. The plumbing installation must comply with all national or local water regulations and all relevant building regulations, or any particular regulation or practice specified by the local water supply company. 2. DO NOT use any other shower fittings. Only install and use the shower hose and handset provided with this product. - Page 12 18. A water treatment device should be installed where the water hardness may exceed 200 ppm. Malfunctions caused by excessive limescale formation are not covered by this shower’s guarantee (see back page for details). 19. The installation must not cause the hose to be sharply kinked during normal use.
- Page 13 Electrical 1. The electrical installation must comply with BS 7671 (commonly referred to as the IEE Wiring Regulations) and all relevant building regulations, or any particular regulation or practice specified by the local electricity supply company. 2. Ensure that all circuit protection devices, switches and cabling is adequate for the rated current of the shower and that the rating of the electricity supply company fuse and the consumer unit are adequate for the additional demand.
-
Page 14: Installation
Installation Warning! Turn off the electrical and water supplies before proceeding with the installation of the shower. Remove the three screws that Screws hold the cover on and remove Service the cover. Tunnel Remove the service tunnel. Using the holes in the case, mark the positions of the three fixing holes. - Page 15 Determine the direction and route of the incoming water supply: falling (entering the shower from the top), or rising (entering the shower from the bottom). N O T E : D O N O T u s e a n incoming supply entering the shower directly from the back.
- Page 16 Connect the inlet supply pipe to the inlet connector using Inlet the compression nut and olive Connector (supplied). Always provide mechanical support when making plumbing connections. Upon Olive completion of the installation ensure connections and back Compression case are not under any stress due to misaligned pipework or Inlet Supply electrical cables.
- Page 17 Screws Ensure the earth bonding complies with relevant regulations. Cover Replace the service tunnel. Plug the multi-connector into the Multi- cover PCB socket Note: The Connector multi-connector will only locate correctly into the socket in one direction. Ensure the temperature control dial is aligned with the spindle Screw Spindle...
- Page 18 Commissioning TEMPERATURE Turn temperature control Switch on the electrical Push START/STOP to the cold position. supply. button. Light in the button illuminates. COLD 0 - 15 secs TEMPERATURE Push LOW button. Low Water flows freely within a Slowly turn the button illuminates.
- Page 19 HIGH COLD 5 - 10 secs Temperature will rise slightly. Push HIGH button. High button illuminates COLD 5 - 10 secs TEMPERATURE Temperature will rise further. Adjust temperature as required. Flow rate will adjust automatically. Normal Flow AIRBOOST Airboost Enabled Check Airboost function.
- Page 20 COLD 0 - 5 secs The shower will purge water from Switch off the electrical supply. its tank for a few seconds. Note: A slight hissing sound may be heard from the Mira shower during operation. High mains water pressure and high shower temperatures will affect the tone.
-
Page 21: Operation
Operation Read the section “IMPORTANT SAFETY INFORMATION” first. BOOST HIGH POWER Switch on the electrical P u s h S TA R T / S T O P Push power button for the supply. button. Light in the button desired output. The button illuminates.* illuminates. - Page 22 A small amount of water may continue to drain over a few minutes. Warning! Turning the shower off and back on or adjusting the temperature control during showering may result in unstable temperatures at the showerhead. Always ensure the temperature has stabilised before re-using the shower. DO NOT hold the showerhead against the body.
-
Page 23: User Maintenance
The Effect of Seasonal Changes Incoming mains water temperature is not constant throughout the seasons of the year i.e. cooler during the winter, warmer during the summer, these changes can affect the outlet temperature of the shower, therefore the shower temperature may need to be increased or decreased to maintain the desired showering temperature. - Page 24 Cleaning the showerhead Many household and commercial cleaners, including hand and surface cleaning wipes contain abrasive and chemical substances that can damage plastics, plating and printing and should not be used. These finishes should be cleaned with a mild washing up detergent or soap solution, and then wiped dry using a soft cloth. De-scaling the Showerhead and inspecting the hose: It is IMPORTANT to keep the showerhead and hose clean and free from blockage to make sure your shower performs to its optimum.
-
Page 25: Fault Diagnosis
Fault Diagnosis If the malfunction has not been detailed in the fault finding table or it was not possible to correct the malfunction, professional assistance may be required. Any fault diagnosis remedies MUST be carried out by a competent person or contact Mira Customer Services to arrange a service engineer. - Page 26 Symptom Possible Cause Possible Remedy No hot water Insufficient water supply Contact local water authority. from the shower, pressure. with the controls in ECO/HIGH Potential product fault Contact Mira Customer Services. position Remove and clean the showerhead spray plate. The showerhead spray plate is Refer to the shower fittings User Guide.
- Page 27 Servicing Always read the Important Safety Information before carrying out any servicing or maintenance. Warning! There are no user serviceable parts inside the shower. Servicing of the shower must only be carried out by qualified, competent personnel following the instructions provided in this guide and those provided with any spare part.
-
Page 28: Customer Support
Kohler Mira Limited. Cromwell Road, Kohler France S.A.S. Cheltenham, 30 Boulevard de la Bastille, The company reserves the right Gloucestershire 75012 Paris, to alter product specifications GL52 5EP France without notice. 14648 © Kohler Mira Limited, October 2023 1561661-W2-A...
