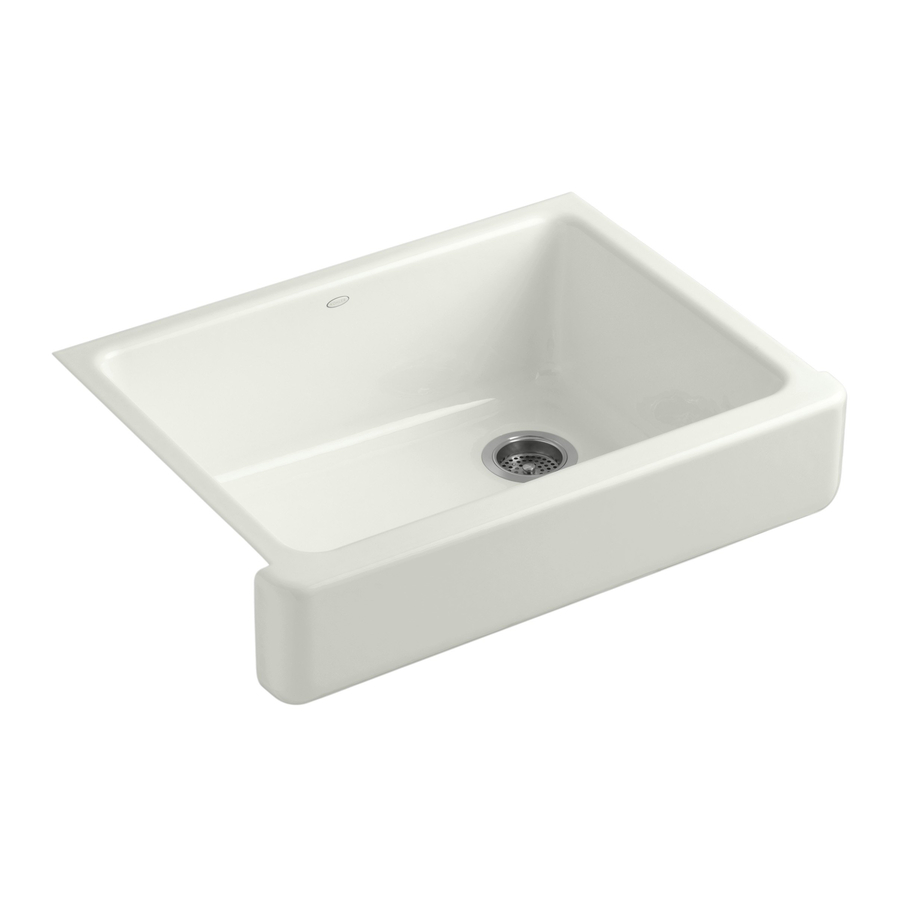

Kohler K-6486, K-5826, K-6488 Installation Manual

Tools and Materials

Plus:

• Suitable Support Framing Material [1/2" (13 mm)] Max Thickness
• Screws

Roughing-In and Preparation

1. Top of Cabinet to Bottom of Drawer Opening
2. Top of Cabinet to Top of Doors

Before installing this sink, verify that the opening height (A) is less than the apron height, and the distance to the top of the doors (B) is greater than the apron height.
NOTE: For cabinets with flat fronts (no false drawer openings), proceed to the "Prepare the Cabinet - Flat Front" section.

• Remove the false drawer front from your cabinet. Use care not to damage the cabinet.

TIP: Apply painter's tape to the cabinet to mark cuts and to protect cabinet surfaces when cutting.

• Measure and mark 7/8" (22 mm) in from the outside edge of the cabinet. Repeat for the other side.
• Cut along each marked line until the cut extends slightly beyond the top of the drawer opening/top rail of the cabinet.
• Following the bottom edge of the rail, extend your cut until it intersects with the previous cut. Repeat for the other side.

• If your cabinet has a center support, cut along the bottom of the support, even with the drawer opening.
• Remove and discard the rail.
• Continue to the 'Install the Support Framing' section.

Prepare the Cabinet - Flat Front

• TIP: Apply painter's tape to the cabinet to mark cuts and protect the cabinet surfaces when cutting.
• Position the template on the front of the cabinet flush with the top and centered left to right; secure with tape.
• Trace the template and remove.
• Cut the cabinet along the traced line.

Install the Support Framing

Horizontal and vertical support framing is required to support the weight of the sink.

NOTICE: For proper countertop installation, the top of the sink must not extend above the top of the cabinet.

• Cut two lengths of support framing to extend horizontally along the inside walls on each side of the cabinet.
• Measure and mark the support mounting locations; ensure that the sink rim will sit at or slightly below the top of the cabinet.
• Position and level the supports.
  TIP: Use clamps to hold the supports in position.
• Secure the supports with construction adhesive and screws (not provided).

Optional Vertical Supports

• Cut four lengths of support framing to extend from the bottom of the horizontal supports to the floor of the cabinet.
• Secure the vertical supports with construction adhesive and screws (not provided).

Install the Countertop

• Apply a bead of 100% silicone sealant around the side and back of the sink.
• Install the countertop.
• Apply a thin bead of 100% silicone sealant where the sink meets the countertop and cabinet.
• Immediately wipe away any excess sealant.

Complete the Installation

• Install the faucet and the strainers according to the installation instructions.
• Connect the trapway to the strainers.

Care and Cleaning
For best results, keep the following in mind when caring for your KOHLER product:

• Always test your cleaning solution on an inconspicuous area before applying to the entire surface. Cleaners containing chloride are not recommended.
• Wipe surfaces clean and rinse completely with water immediately after applying cleaner. Rinse and dry any overspray that lands on nearby surfaces.
• Do not allow cleaners to soak on surfaces.
• Use a soft, dampened sponge or cloth. Never use an abrasive material such as a brush or scouring pad to clean surfaces.
• Be careful not to leave staining materials in contact with the surface for extended periods of time.
• The ideal cleaning technique is to rinse thoroughly and blot dry any water from the surface after each use.

For detailed cleaning information and products to consider, visit www.kohler.com/clean. To order Care & Cleaning information, call 1-800-456-4537.
