Kraus Kore KWT311-15 Installation Manual

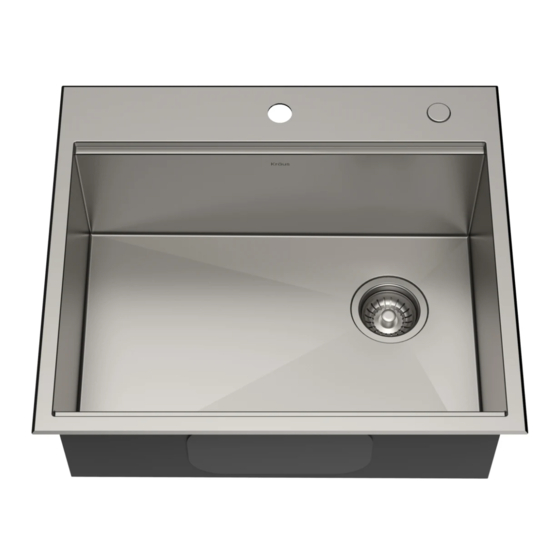

Workstation stainless steel dual mount kitchen sinks
Hide thumbs Also See for Kore KWT311-15:
Table of Contents

Advertisement

Quick Links

Download this manual
R
INSTALLATION MANUAL
Kore Workstation Stainless
Steel Dual Mount Kitchen Sinks
KWT311-15, KWT311-15/316, KWT321-15,
,
KWT321-15/316, KWT301-25
KWT311-25,
KWT311-25/5.5, KWT300-28, KWT310-28,
,
,
KWT300-30
KWT302-30, KWT310-30
KWT300-33, KWT302-33, KWT310-33/5.5,
KWT310-33/PGM, KWT330-33
www.kraususa.com I Toll Free: 1.800.775.0703 I © 2018 Kraus USA Inc. I REV. February 1, 2021

Advertisement

Table of Contents
loading

Related Manuals for Kraus Kore KWT311-15

Summary of Contents for Kraus Kore KWT311-15

  • Page 1 Kore Workstation Stainless Steel Dual Mount Kitchen Sinks KWT311-15, KWT311-15/316, KWT321-15, KWT321-15/316, KWT301-25 KWT311-25, KWT311-25/5.5, KWT300-28, KWT310-28, KWT300-30 KWT302-30, KWT310-30 KWT300-33, KWT302-33, KWT310-33/5.5, KWT310-33/PGM, KWT330-33 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2018 Kraus USA Inc. I REV. February 1, 2021...
  • Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...

  • Page 3: Tools You Will Need

    Toll-Free: 800-775-0703 or customerservice@kraususa.com The step-by-step guidelines in the installation instructions are a general reference for installing a Kraus sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to install all Kraus products by hiring a licensed professional.

  • Page 4: Parts List

    Parts List KWT311-15 & KWT311-15/316 KWT311-25/5.5 · Cut-Out Template · Cut-Out Template · Mounting Hardware · Mounting Hardware · Strainer ST-1 · Bottom Grid KBG-UN1-25 · Drain Cap STC-2 · Strainer ST-1 · Cover Board KCB-WS13BB · Drain Cap STC-2 ·...
  • Page 5 Parts List KWT302-30 · KWT310-33/5.5 Cut-Out Template · · Cut-Out Template · Mounting Hardware · Mounting Hardware · Bottom Grid KBG-WSU1-30 x 2 · Bottom Grid KBG-UN1-33 · Strainer ST-1 x 2 · Strainer ST-1 · Drain Cap STC-2 x 2 ·...
  • Page 6 Dimensions: 15" (381mm) 15" (381mm) 13" (330.2mm) 13" (330.2mm) 12" (304.8mm) Ø1 3/8" Ø1 3/8" (35mm) (35mm) R 0" R 0" (0mm) 3 1/2" (0mm) (90mm) 3 1/2" (90mm) Model #: KWT311-15 & KWT311-15/316 Model #: KWT321-15 & KWT321-15/316 Sink Dimensions: 15” x 22” x 9” Sink Dimensions: 15”...
  • Page 7 Dimensions: Typical note: *= Special Order 25" (635mm) 28" (711.2mm) 23" (584.2mm) 26" (660.4mm) 5" (127mm) Ø1 3/8" Ø1 3/8" 3 1/2" (35mm) (35mm) (89mm) R 0" R 0" (0mm) 3 1/2" 3 1/2" (0mm) (90mm) (90mm) Model #: KWT311-25/5.5* Model #: KWT300-28 Sink Dimensions: 25”...
  • Page 8 Dimensions: 30" (762mm) 30" (762mm) 28" (711.2mm) 28" (711.2mm) Ø1 3/8" 3 1/2" 5" (35mm) (89mm) (127mm) Ø1 3/8" 3 1/2" (35mm) (89mm) R 0" (0mm) 3 1/2" R 0" 3 1/2" (90mm) (0mm) (90mm) 13 7/8" 13 7/8" (353.6mm) (353.6mm) 1/8"...
  • Page 9 Dimensions: 33" (838mm) 33" (838mm) 31" (787mm) 31" (787mm) 5" (127mm) 5" Ø1 3/8" 3 1/2" (127mm) (35mm) (89mm) Ø1 3/8" 3 1/2" (35mm) (89mm) R 0" 3 1/2" (0mm) R 0" (90mm) 3 1/2" (0mm) (90mm) Model #: KWT310-33/5.5 Model #: KWT310-33/PGM Sink Dimensions: 33”...

  • Page 10: Top Mount Installation

    Top Mount Installation Step 1. Position Template · Check the cut-out template against the actual sink to ensure a proper sized cut-out. Place the cut-out template in the desired location on the countertop. · NOTE: Make sure clearance is suitable for backsplash, faucet and plumbing for the sink. Step 2.
  • Page 11 Step 3. Cut Countertop · Cut the opening in the countertop by carefully following the traced line. NOTE: Please use the appropriate saw that best fits your countertop material.

  • Page 12: Step 4. Attach Mounting Hardware

    Step 4. Attach Mounting Hardware · Attach mounting hardware to the prongs protruding from the underside of the sink rim. · Make sure the hooked side of the mounting clip is facing away from the sink. NOTE: Maximum countertop thickness for Top Mount installation is 1 1/2". Push...
  • Page 13 Step 5. Apply Silicone or Plumber's Putty · Clean and dry the surface around the opening of the sink. · Turn the unit upside down to apply sealant. Apply silicone-based sealant (not included) underneath the edge of the sink.
  • Page 14 Step 6. Secure Sink to Countertop · Insert the sink into the opening, check the alignment of the sink to the cutout in the countertop and press firmly. · Tighten the screws in the front of the sink, followed by the ones in the back and on the sides of the sink. ·...

  • Page 15: Maintenance

    Step 7. Install Plumbing Fixtures · Connect drain to sink. Connect trap to drain. Connect water supply connections to faucet according to manufacturer's instructions. · Run water into sink and check for leaks. Note: Before installation, please check that the drain kit complies with ASME A112.18.2/CSA B125.2 and with CUPC ·...
  • Page 16 Undermount Installation Step 1. Determine reveal type · Use scissors to cut along the line of the paper template for your desired reveal type (Negative, Positive, or Flush Reveal) KRAUS Recommended Installation Type 3/8" Positive Reveal Flush/Zero Reveal 3/8" POSITIVE...
  • Page 17 Step 2. Position template · Check the cut-out template against the actual sink to ensure a proper sized cut-out. · Place the cut-out template in the desired location on the countertop. NOTE: Make sure clearance is suitable for backsplash, faucet and plumbing for the sink. Step 3.
  • Page 18 Step 4. Cut Countertop · Cut the opening in the countertop by carefully following the traced line. NOTE: Please use the appropriate saw that best fits your countertop material. Step 5. Set up mounting brackets · Turn countertop over and align sink with countertop. Decide location for mounting brackets.
  • Page 19 Step 6. Drill hole in countertop · Drill 3/8" diameter x 1/2" deep hole in the countertop. Step 7. Install anchors · Insert anchors into drilled holes and lightly tap with a hammer until flush.
  • Page 20 Step 8. Secure sink to countertop · Use a bead of silicone (or preferred adhesive) around the rim of the sink. Check the alignment of the sink to the cutout in the countertop. Place sink over cutout hole and press firmly. Step 9.
  • Page 21 Step 10. Install Plumbing Fixtures · Connect drain to sink. Connect trap to drain. Connect water supply connections to faucet according to manufacturer's instructions. · Run water into sink and check for leaks. · Note: Before installation, please check that the drain kit complies with ASME A112.18.2/CSA B125.2 and with CUPC certification.
  • Page 22 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
  • Page 23 Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 Customerservice@kraususa.com If you are a plumbing contractor or trade professional please contact a Kraus Pro Representative at: Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
  • Page 24 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
