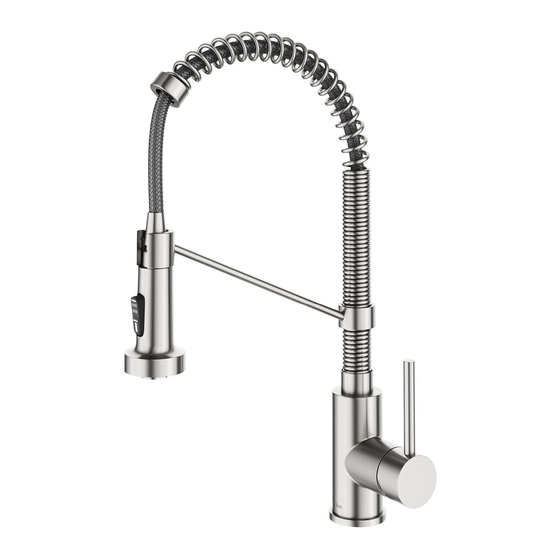

Sensor single handle pull down kitchen faucet
Hide thumbs
Also See for Bolden KSF-1610:
- Installation manual (17 pages) ,
- Installation manual (16 pages)
Related Manuals for Kraus Bolden KSF-1610
Summary of Contents for Kraus Bolden KSF-1610
- Page 1 INSTALLATION MANUAL Bolden™ Sensor Single Handle Pull Down Kitchen Faucet KSF-1610 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2023 Kraus USA Plumbing LLC I Rev. March 13, 2023...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: DO NOT RETURN TO STORE...
- Page 3 Make sure you have all necessary parts by checking the diagram and · parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement. Read all instructions and safety warnings and ensure you have all tools, ·...
- Page 4 Diagram and Parts List J2 J3 I. Sensor Control Box A. Spray Head J. Battery Pack B. Faucet Body J1. Battery Pack C. Washers J2. Screw D. Mounting Nut J3. Anchor E. Screws K. Battery F. Weight L. 2.5mm Hex Wrench G.
- Page 5 Faucet Dimensions 10 3/4" [273.5mm] 4 1/2" 8 5/8" [115.4mm] [220.0mm] Ø2 1/8" [54.0mm] 3/8”compression Installer Tip: Shut off main water supply before installing new faucet.
- Page 6 Step 1: Installing the faucet Shut off the water supply. Insert faucet body (B) through the hole in the sink. Step 2: Securing the faucet assembly Install the washers (C) onto the threaded mounting shank. Thread the mounting nut (D) onto the mounting shank.
- Page 7 Step 3: Installing the sensor control box Install the data cable (1) to the control box connection (2). Ensure the arrows on the data cable and control box connection are aligned to one another to ensure proper installation. Ensure they are tightly connected by firmly pushing together.
- Page 8 Step 5: Installing the counterweight Install the weight clip (G) at the point of the hose marking "weight here". Insert the weight (F) onto the weight clip (G) by sliding it down onto the weight clip (G). Step 6: Installing the battery pack To open the battery housing, squeeze the tabs (1) on the cover (2), then remove the cover (2).
- Page 9 Step 7: Installing the battery pack Drill a hole in the wall using a 6mm (1/4 in.) diameter drill bit. Install the battery pack (J1) using the molly anchor (J3) and screw (J2) provided. Insert the battery pack cable (1) into the control box connection (2).
- Page 10 Step 9: Flush faucet Flushing and checking for leaks: After the installation is complete, unscrew and remove the spray head in order to flush the line. Turn on the water supply and allow both hot and cold water to run for at least one minute each. This flushes away any debris that could cause damage to internal parts.
- Page 11 Replacement Parts Replacement Parts List Finish / Color Part # 1. Sprayer Head SFS, MB, SFACB, BB** KP27216 2. Washer KP27208 3. Sprayer Hose BLMB, GRSFS, BLBB KP27217 BLSFACB, BLSFS* 4. Spring Assembly SFACB, SFS, BB** KP27322 4. Spring Assembly MB** KP27220 5.
- Page 12 Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: Problem 1: Water will not shut off when turning the handle to the OFF position. This indicates that the cartridge When you turn the handle to But when you turn the handle is damaged.
- Page 13 Problem 4: The sensor is not activating the water flow. When you turn the handle to However, when you move your Check whether the switch the full on position, the water hand in front of the sensor, the button (1) is tight, if it is will turn on.
- Page 14 Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
- Page 15 TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY DOES NOT COVER, AND KRAUS USA PLUMBING, LLC SHALL NOT BE LIABLE FOR, ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING LABOR CHARGES TO REPAIR, REPLACE, INSTALL OR REMOVE THIS PRODUCT), WHETHER ARISING OUT OF BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, BREACH OF CONTRACT, TORT, OR OTHERWISE.
- Page 16 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
