Kraus KWU111-17 Installation Manual

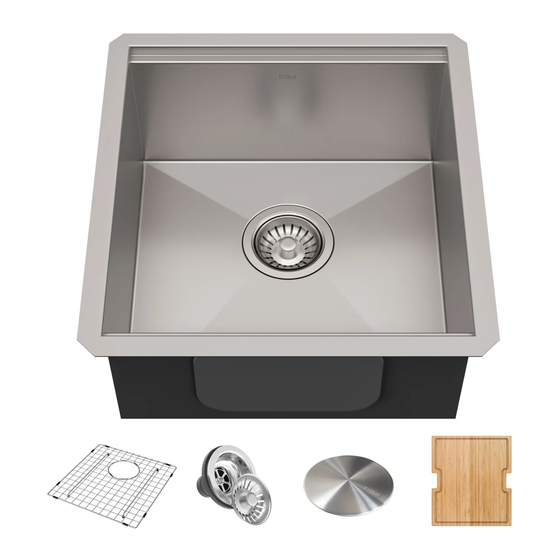

Kore workstation stainless steel undermount kitchen sinks
Hide thumbs
Also See for KWU111-17:
- Installation manual (23 pages) ,
- Installation manual (36 pages) ,
- Installation manual (19 pages)
Related Manuals for Kraus KWU111-17
Summary of Contents for Kraus KWU111-17
- Page 1 INSTALLATION MANUAL Kore Workstation Stainless Steel Undermount Kitchen Sinks KWU111-17, KWU111-23, KWU110-27, KWU110-30, KWU110-32, KWU112-33, KWU120-45 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2018 Kraus USA Inc. I REV. August 6, 2019...
-
Page 2: Kwu111
Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com... -
Page 3: Kwu110
Toll-Free: 800-775-0703 or customerservice@kraususa.com The step-by-step guidelines in the installation instructions are a general reference for installing a Kraus sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to install all Kraus products by hiring a licensed professional. -
Page 4: Table Of Contents
Parts List KWU110-32 KWU111-17 · Cut-Out Template · Cut-Out Template · Mounting Hardware · Mounting Hardware Bottom Grid KBG-UN1-32 · · Bottom Grid KBG-WSU1-17 · Strainer ST-1 · Strainer ST-1 · Drain Cap STC-2 Drain Cap STC-2 · Rolling Mat KRM-11BL ·... - Page 5 (90mm) 3 1/2" (90mm) R 1/4" R 1/4" (5mm) (5mm) Model #: KWU111-17 Model #: KWU111-23 Sink Dimensions: 17” x 19” x 10” Sink Dimensions: 23” x 19” x 10” Min Cabinet Size: 21” Min Cabinet Size: 27” 27" 30"...
- Page 6 Dimensions 32" (812.8mm) 33" (838.2mm) 30" (762mm) 31" (787.4mm) 5" (127mm) 3 1/2" (90mm) 3 1/2" (90mm) 4" 101.6mm) R 1/4" R 1/4" (5mm) (5mm) Model #: KWU110-32 Model #: KWU112-33 Sink Dimensions: 32” x 19” x 10” Sink Dimensions: 33” x 19” x 10” Min Cabinet Size: 36”...
-
Page 7: Kwu110
Step 1. Determine Reveal Type · Use scissors to cut along the line of the paper template for your desired reveal type (Negative, Positive, or Flushed Reveal) KRAUS Recommended Installation Type 3/8” Positive Reveal Flushed/Zero Reveal 3/8” POSITIVE FLUSHED/ZERO Centerline... -
Page 8: Kwu110
Step 2. Position Template Check the cut-out template against the actual sink to ensure a proper sized cut-out. · · Place the cut-out template in the desired location on the countertop. NOTE: Make sure clearance is suitable for backsplash, faucet and plumbing for the sink. -
Page 9: Kwu112
Step 3. Trace Template · Trace template on countertop with a pencil. - Page 10 Step 4. Cut Countertop · Cut the opening in the countertop by carefully following the traced line. NOTE: Please use the appropriate saw that best fits your countertop material.
- Page 11 Step 5. Set up Mounting Brackets • Turn countertop over and align sink with countertop. Decide location for mounting brackets. • Mounting holes should be 1/2" from edge of sink. 1/2" (13mm) Step 6. Drill Hole in Countertop • Drill 3/8" diameter x 1/2" deep hole in the countertop.
- Page 12 Step 7. Install Anchors • Insert anchors into drilled holes and lightly tap with a hammer until flush. Step 8. Secure Sink to Countertop · Use a bead of silicone (or preferred adhesive) around the rim of the sink. Check the alignment of the sink to the cutout in the countertop.
- Page 13 Step 9. Attach Mounting Hardware • Attach mounting hardware to secure bowl. Remove excess sealant from inside lip. • Allow sealant to set for 30 - 60 minutes. NOTE: Use acetone or rubbing alcohol to remove any excess sealant. Step 10. Install Plumbing Fixtures ·...
- Page 14 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
- Page 15 Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 Customerservice@kraususa.com If you are a plumbing contractor or trade professional please contact a Kraus Pro Representative at: Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
- Page 16 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
