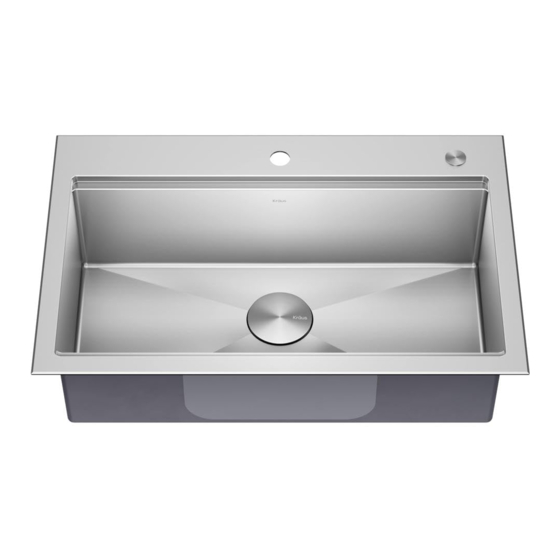

Kraus Kore KWT300-32 Installation Manual
Workstation stainless steel top mount kitchen sink
Hide thumbs
Also See for Kore KWT300-32:
- Installation manual (21 pages) ,
- Installation manual (19 pages)
Related Manuals for Kraus Kore KWT300-32
Summary of Contents for Kraus Kore KWT300-32
- Page 1 INSTALLATION MANUAL Kore Workstation Stainless Steel Top Mount Kitchen Sink KWT300-32 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2021 Kraus USA Plumbing LLC I REV. November 1, 2021...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 3: Cleaning And Maintenance
Toll-Free: 800-775-0703 or customerservice@kraususa.com While these step-by-step instructions are intended to assist in the safe installation of a Kraus sink, this product is likely to perform best when installed by a licensed professional. The failure to follow these instructions or to hire a professional when needed may result in personal injury or property damage and may void the warranty. -
Page 4: Tools You Will Need
Tape Measure Putty Knife Pencil Scissors Screwdriver Closed Toe Shoes NOTE: Specialized tools may be necessary to install Kraus Stainless Steel Kitchen sinks with countertop materials other than wood, marble or granite. Parts List: Sink KWT300-32 Strainer ST-1 Cover Cap STC-2... - Page 5 Dimensions: 31 1/4" (793.8mm) 28 1/2" (723.9mm) 3 1/2" Ø1 3/8" (89mm) (35mm) 3 1/2" (90mm) R 3/8" (10mm) 1 3/8" (35mm) Model #: KWT300-32 Sink Dimensions: 31 1/4” x 20 1/2” x 9” Min Cabinet Size: 33”...
- Page 6 Step 1. Position Template · Check the cut-out template against the actual sink to ensure a proper sized cut-out. · Place the cut-out template in the desired location on the countertop. NOTE: Make sure clearance is suitable for backsplash, faucet and plumbing for the sink. Step 2.
- Page 7 Step 3. Cut Countertop · Cut the opening in the countertop by carefully following the traced line. ! CAUTION - To avoid the risk of personal injury, wear safety glasses and cut resistant gloves with non-slip grip when cutting. NOTE: Please use the appropriate saw that best fits your countertop material.
- Page 8 Step 4. Attach Mounting Hardware · Attach mounting hardware to the prongs protruding from the underside of the sink rim. · Make sure the hooked side of the mounting clip is facing away from the sink. Insert...
- Page 9 Step 5. Apply Silicone or Plumber's Putty · Clean and dry the surface around the opening of the sink. · Turn the unit upside down to apply sealant. Apply silicone-based sealant (not included) underneath the edge of the sink.
- Page 10 Step 6. Secure Sink to Countertop • Insert the sink into the opening, check the alignment of the sink to the cutout in the countertop and press firmly. • Tighten the screws in the front of the sink, followed by the ones in the back and on the sides of the sink. •...
- Page 11 Step 7. Install Plumbing Fixtures · Connect drain to sink. Connect trap to drain. Connect water supply connections to faucet according to manufacturer's instructions. Run water into sink and check for leaks. ·...
- Page 12 Kraus warrants the structure and finish of the Kitchen Sink to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the sink was Kitchen Sink was first installed.
- Page 13 TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY DOES NOT COVER, AND KRAUS USA PLUMBING, LLC SHALL NOT BE LIABLE FOR, ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING LABOR CHARGES TO REPAIR, REPLACE, INSTALL OR REMOVE THIS PRODUCT), WHETHER ARISING OUT OF BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, BREACH OF CONTRACT, TORT, OR OTHERWISE.
- Page 14 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
