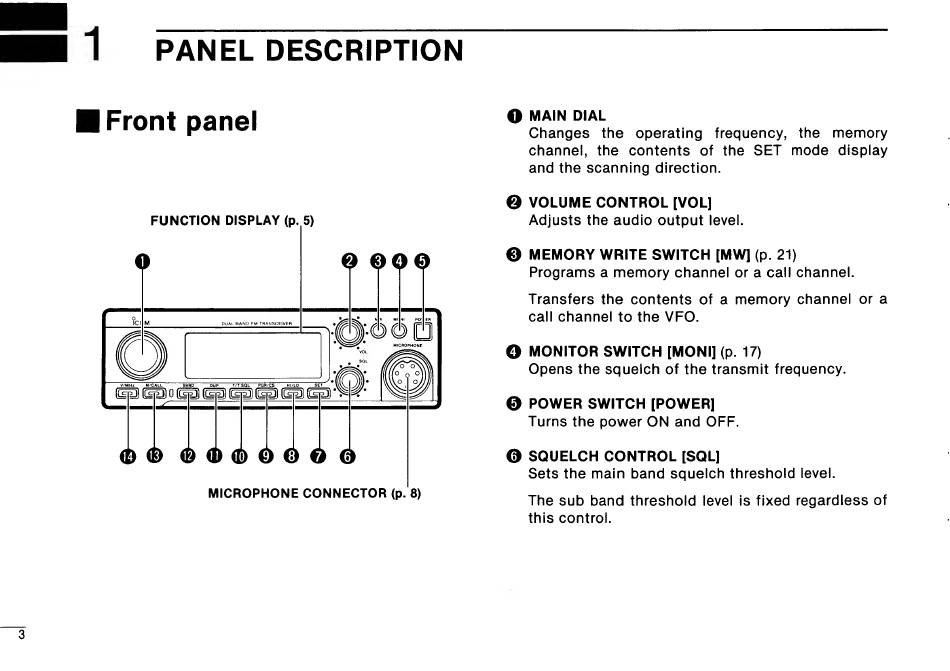

PANEL DESCRIPTION
—
|
W Front panel
FUNCTION DISPLAY (p. 5)
viz
M/CALL
BAND
DUP,
TIS
D
CICD GJ ČA GIGA ©
MICROPHONE CONNECTOR (p. 8)
wl
@ MAIN DIAL
Changes
the
operating
frequency,
the
memory
channel,
the
contents
of the SET
mode
display
and the scanning direction.
© VOLUME CONTROL [VOL]
Adjusts the audio output level.
© MEMORY WRITE SWITCH [MW] (p. 21)
Programs a memory channel or a call channel.
Transfers the contents
of
a memory
channel
or a
call channel to the VFO.
© MONITOR SWITCH [MONI] (p. 17)
Opens the squelch of the transmit frequency.
© POWER SWITCH [POWER]
Turns the power ON and OFF.
@ SQUELCH CONTROL [SQL]
Sets the main band squelch threshold level.
The sub band threshold level is fixed regardless of
this control.
