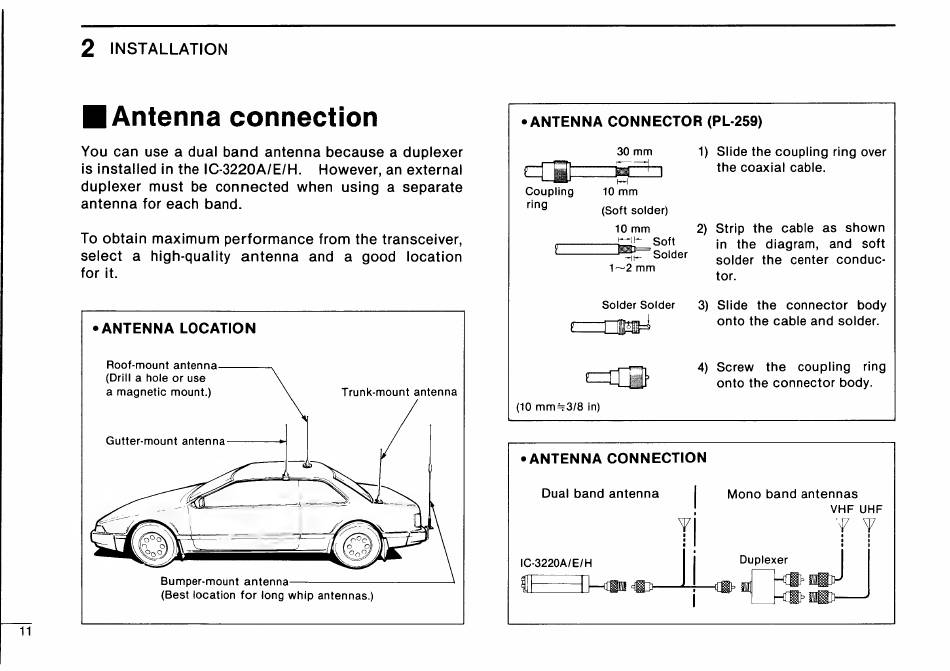

2 INSTALLATION
Mi Antenna connection e ANTENNA CONNECTOR (PL-259)
You can use a dual band antenna because a duplexer 1) Slide the coupling ring over
is installed in the IC-3220A/E/H. However, an external Ex the coaxial cable.
duplexer must be connected when using a separate Couplin rear
antenna for each band. ring (Soft solder)
Solder Solder 3) Slide the connector body
Roof-mount antenna i 4) Screw the coupling ring
(10 mm=3/8 in)
Gutter-mount antenna
e ANTENNA CONNECTION
Dual band antenna Mono band antennas
VHF UHF
yY Y
IC-3220A/E/H
Bumper-mount antenna {t+ SR 4
(Best location for long whip antennas.)
