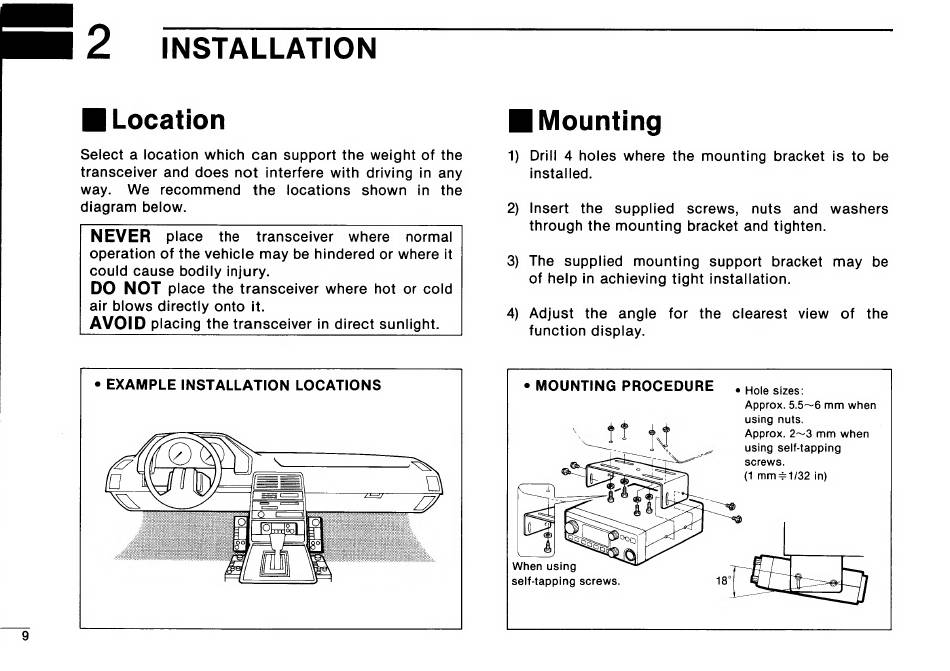

2 INSTALLATION
i Location
Select a location which can support the weight of the
transceiver and does not interfere with driving in any
way. We recommend the locations shown in the
diagram below.
NEVER place the transceiver where normal
operation of the vehicle may be hindered or where it
could cause bodily injury.
DO NOT place the transceiver where hot or cold
air blows directly onto it.
AVOID placing the transceiver in direct sunlight.
e EXAMPLE INSTALLATION LOCATIONS
W Mounting
1) Drill 4 holes where the mounting bracket is to be
installed.
2) Insert the supplied screws, nuts and washers
through the mounting bracket and tighten.
—
3) The supplied mounting support bracket may be
of help in achieving tight installation.
—
4) Adjust the angle for the clearest view of the
function display.
e MOUNTING PROCEDURE ə Hole sizes:
Approx. 5.5~6 mm when
using nuts.
Approx. 2~3 mm when
using self-tapping
screws.
(1 mm=1/32 in)
When using
self-tapping screws.
