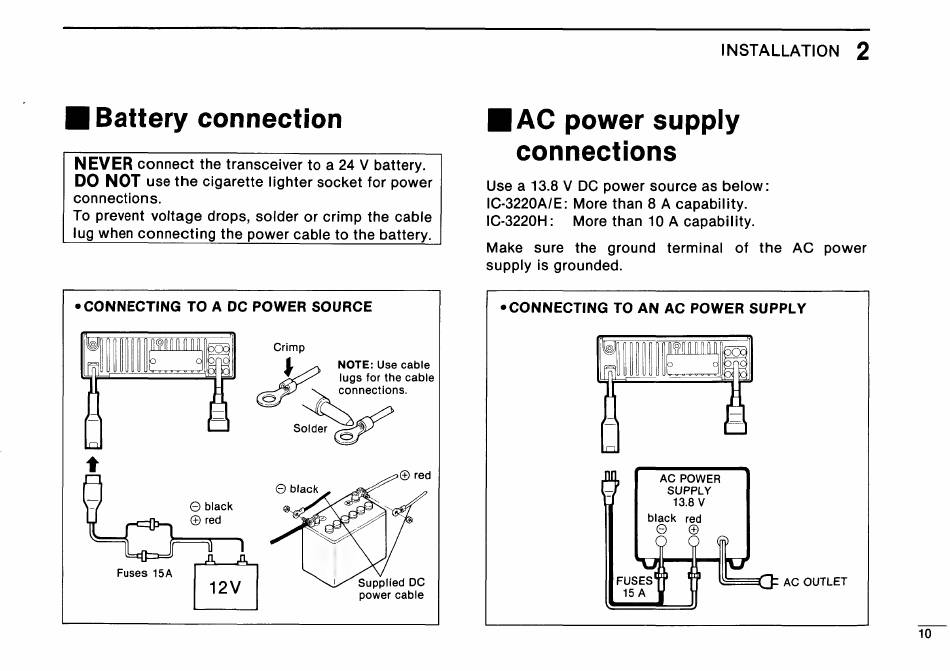

W Battery connection
NEVER connect the transceiver to a 24 V battery.
DO NOT use the cigarette lighter socket for power
connections.
To prevent voltage drops, solder or crimp the cable
lug when connecting the power cable to the battery.
e CONNECTING TO A DC POWER SOURCE
NOTE: Use cable
lugs for the cable
connections.
Solder
Fuses 15A
Supplied DC
power cable
INSTALLATION 2
W AC power supply
connections
Use a 13.8 V DC power source as below:
IC-3220A/E: More than 8 A capability.
1C-3220H: More than 10 A capability.
Make sure the ground terminal of the AC power
supply is grounded.
e CONNECTING TO AN AC POWER SUPPLY
AC POWER
SUPPLY
13.8 V
black red
O ©
CE AC OUTLET
10
