Idemia VisionPass SP Installation Manual

Hide thumbs Also See for VisionPass SP:

Advertisement

Quick Links

Download this manual

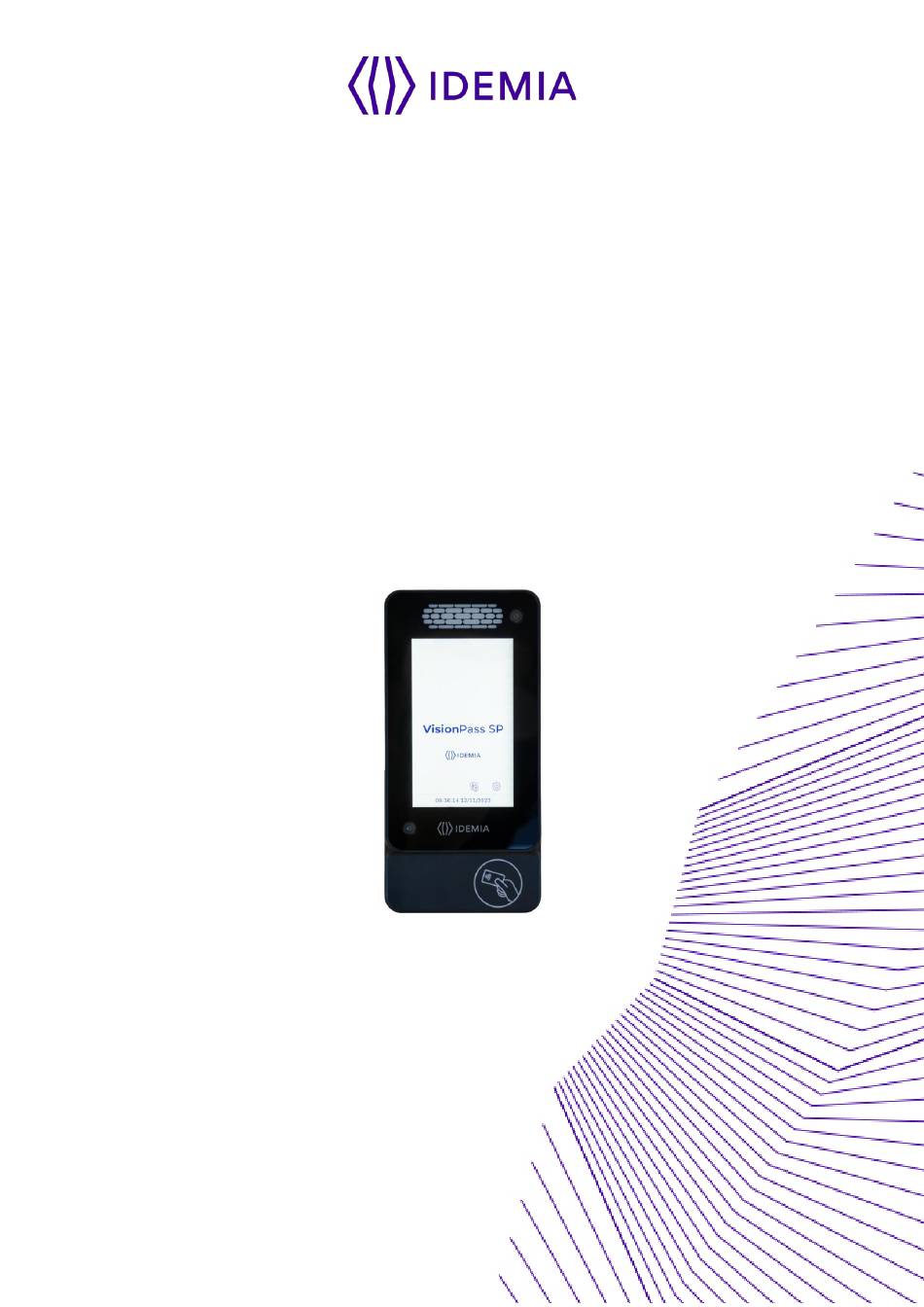

VisionPass SP
Installation guide
Copyright IDEMIA 2023
2023_2000073596

Advertisement

loading
Need help?

Need help?

Do you have a question about the VisionPass SP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Idemia VisionPass SP

Summary of Contents for Idemia VisionPass SP

  • Page 1 VisionPass SP Installation guide Copyright IDEMIA 2023 2023_2000073596...
  • Page 2 All Information and Intellectual property rights reserved at ©IDEMIA 2023. Reproduction in whole or in part in any form or medium without the express written permission of IDEMIA is prohibited. The trademarks identified herein are the trademarks of registered trademarks of IDEMIA, or other third party.

  • Page 3: Revision History

    Revision history Version Date Reference Description January 2023_2000073596 Document creation 2024 April Update for UL294 certification 2024 VisionPass SP - 2023_2000073596...

  • Page 4: Table Of Contents

    2 / General description 2.1 > Components of the initial package 2.2 > Terminal's front view description 2.3 > Terminal's rear view description 2.4 > VisionPass SP Technical Characteristics 3 / Installation procedure 3.1 > Before proceeding to the installation 3.2 > Installation 3.3 >...
  • Page 5 6.2 > Compatible PC applications 7 / Recommendations 8 / Annex 1: placement recommendations 8.1 > Main principles 8.2 > Positioning Guidelines 8.2.1 > Overview 8.2.2 > Specific guidelines for gates or turnstiles 8.2.3 > Lower positioning: 1105 mm VisionPass SP - 2023_2000073596...
  • Page 6 9 / Annex 2: Bibliography 9.1 > How to get the latest versions of documents 9.2 > Documents about the VisionPass SP terminal 10 / Annex 3: Support 10.1 > Troubleshooting 10.2 > Technical Support and Hotline VisionPass SP - 2023_2000073596...

  • Page 7: Introduction

    To ensure the most effective use of your VisionPass SP terminal, we recommend that you read this Installation Guide completely. 1.2 > Scope of the document This guide deals with the installation of VisionPass SP, which is made up of the following list of products: Contactless smartcard reader...

  • Page 8: Safety Instructions

    In case of building to building connection it is recommended to connect 0V to ground. Ground cable must be connected with the terminal block Power Ground. Note that all connections of the VisionPass SP terminal described hereafter are of SELV (Safety Electrical Low Voltage) type.

  • Page 9: Wiring Recommendations

    1.4 > Wiring Recommendations IDEMIA recommends using an AWG16 gauge and 24V power supply when PoE+ supply is not used. voltage specified measured product block connector: 12V-24V (-15% / +10%). The voltage drop due to the cable shall be taken into account. The following table shows the maximum...

  • Page 10: Regulatory, Safety And Environmental Notices

    Compliance with these directives is assessed using applicable European Harmonised Standards. VisionPass SP terminals are intended to be used for professional application only (buildings, airport...). The full Declaration of Conformity is available on demand to your reseller. Please, provide him the product model name or its Regulatory Model Number (Model on the label).

  • Page 11: Usa (Fcc) Regulatory Notices

    This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device must be fixed installed. Responsible Party: IDEMIA Identity & Security, N.A 14 Crosby Drive, 2nd Floor Bedford MA, 01730 NOTA : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 12: Brazil (Anatel) Regulatory Notices

    This symbol means do not dispose of your product with your other household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment. VisionPass SP - 2023_2000073596...

  • Page 13: Recommendations For Terminal Implementation

    Every installation is unique. Sometimes the issues are well defined and can be handled in a standard fashion; sometimes the issues are very specific and may not be immediately recognizable. IDEMIA recommends following these steps for a successful installation: Plan the installation - Choose the type of hardware required, decide if a network is required, and decide on the location and number of required terminals.
  • Page 14 To secure properly an access, IDEMIA recommends installing the VisionPass SP terminal as a part of the typical Access Control environment described in the figure below. NON SECURED SECURED AREA AREA Dry contact TCP/IP, Wiegand, Dataclock, RS485 ACCESS ALARM CONTROLLER...
  • Page 15 An access request log (who and when, access granted or denied ...), An event log (i.e. tamper detection, access control for evacuation of the building ...). The VisionPass SP terminal is able to work alone, without Controller, but the protection level of the secured area is lower.

  • Page 16: General Description

    Cover Terminal Wall plate Cable kit Documentation package plate Figure 3: Box content The cable kit is composed of 5 cable nappes with connectors. Description of colors and functions are provided in 4.1 > Wiring overview. VisionPass SP - 2023_2000073596...

  • Page 17: Terminal's Front View Description

    2.2 > Terminal's front view description Visible camera White leds (RGB) 5" WVGA Touchscreen IR lights RG-IR camera Contactless card area Figure 4: VisionPass SP terminal front view VisionPass SP - 2023_2000073596...

  • Page 18: Terminal's Rear View Description

    2.3 > Terminal's rear view description RELAY-SWITCH POWER SUPPLY RJ45 GPIO WIEGAND RS485 TAMPER SWITCH USB port (for configuration and maintenance) Figure 5: VisionPass SP terminal rear view VisionPass SP - 2023_2000073596...

  • Page 19: Visionpass Sp Technical Characteristics

    2.4 > VisionPass SP Technical Characteristics Item Description Access control modes Identification (search for faces in a local database) Authentication with contactless smartcard, with or without face check Multi-factor: identification or authentication Proxy: the access control check is fully driven by a remote system Man Machine Interface 5”...
  • Page 20 Note: only WIEGAND was evaluated by UL GPIO 3 GPI, 3 GPO (not evaluated by UL) Access granted: 1 switch two outputs (normally “open” and Output relay switches normally “closed”) 30VDC – 1A max (Resistive loads, 100 000 cycles) VisionPass SP - 2023_2000073596...
  • Page 21 Storage humidity 5% < RH < 95 % For UL 294 compliance, the product is rated for indoor use The terminal should be installed in controlled lighting conditions Avoid direct exposure to sunlight or to UV lights VisionPass SP - 2023_2000073596...

  • Page 22: Installation Procedure

    For an optimal use, the terminal must be installed in an area where the lighting conditions are controlled. Avoid direct exposure of the sensor to the sun light and ensure good ambient lighting for face detection if used.  READ FIRST §8 / Annex 1: placement recommendations VisionPass SP - 2023_2000073596...

  • Page 23: Installation

    For UL 294 compliance, an earthed screen in the wire or around all wires to/from product is only required when the wires share space/compartment/tube with high voltage cables. Equipment from the initial package to use One (1) Terminal One (1) Wall plate One (1) Cable kit One (1) Cover plate VisionPass SP - 2023_2000073596...

  • Page 24: Step By Step Procedure

    Avoid direct exposure of the sensor to the sun light. Power supply from electrical source shall be switched off before starting the installation. The strength of the attachment depends on the solidity of the wall on which the terminal is mounted. VisionPass SP - 2023_2000073596...

  • Page 25: Drill The Mounting Holes

    This template can be found at the right scale in the “Quick Installation Guide”. The figure below is not at the right scale. 54mm Fixation screws Central fixation screw Ø 67mm Depth ≥ 40mm For fixation on U.S Gang BOX only Center of the hole Figure 8: Drilling template VisionPass SP - 2023_2000073596...
  • Page 26 Drill in the wall 3 holes with a diameter adapted to fixation screws and fit them with the raw plugs (see Figure 8: Drilling template). Figure 9: Fit the hole with the raw plugs Be sure that a sufficient space is reserved in the wall for the passage of cables, in particular for Ethernet. VisionPass SP - 2023_2000073596...

  • Page 27: Make The Connections

    Installation cable for wiring shall be AWG 16 to 22, length shall be adapted to the size of the hole in the wall, to terminal connections, and to the distance between the electric source and the terminal itself. VisionPass SP - 2023_2000073596...

  • Page 28: Attach The Wall Plate On The Wall

    3.3.3 > Attach the wall plate on the wall Fit the cables through the wall plate: Fix the wall plate to the wall with the 3 screws: Figure 11: Wall plate fixation on the wall VisionPass SP - 2023_2000073596...

  • Page 29: Connect The Cables To The Terminal

    3.3.4 > Connect the cables to the terminal Figure 12: Cable connection to the terminal 3.3.5 > Fix the cover plate Tie all the cables on plastic part and close the trap screwing the 3 screws 0.15Nm Figure 13: Fix the cover plate VisionPass SP - 2023_2000073596...

  • Page 30: Add Silicon Around Cable And Cover Plate (Optional)

    3.3.6 > Add silicon around cable and cover plate (optional) Add silicon for dust/particles => required for IP6X sealing only Figure 14: Add silicone (optional) VisionPass SP - 2023_2000073596...

  • Page 31: Fix The Terminal To The Wall Plate

    3.3.7 > Fix the terminal to the wall plate A - Place the device on the wall plate: B - Turn the device: VisionPass SP - 2023_2000073596...
  • Page 32 C - Translate the device upwards and push: D - Keep pushing and translate the device down: Figure 15: Product fixation on wall frame VisionPass SP - 2023_2000073596...
  • Page 33 Depending on storage conditions during transportation, condensation may appear in front of cameras after the first power on and disappear in 2 hours. If the product has to be stored for a long time (more than 2 hours), do not forget to restore its configuration before use. VisionPass SP - 2023_2000073596...

  • Page 34: Electrical Interface

    Electrostatic Discharges (ESD). Power supply ground shall not be used for peripheral ground. All other grounds can be used indifferently. Note that all connections of the VisionPass SP terminal described hereafter are of SELV (Safety Electrical Low Voltage) type. WIEGAND...

  • Page 35: Power Supply

    If sharing power between devices, each unit must receive 2.5A at 12V (e.g. two units would require a 12VDC, 5A supply). IDEMIA recommends using a 24V power supply and AWG16 gauge cable. The voltage measured on the product block connector of the terminal must be equal to 12V-24V (-15% / +10%).
  • Page 36 PoE+ (Power over Ethernet Plus) VisionPass SP terminal's power supply can also be provided by the Ethernet using RJ45 connection (Power over Ethernet Plus mode - IEEE802.3at type 2 compliant). The terminal may be powered via a UL 294B PSE PoE+ Limited power source (IEEE802.3at type 2 compliant).

  • Page 37: Output Relay

    The internal relay is designed for at least 100 000 cycles (resistive load). Inductive load management requires a parallel diode for a better contact lifetime. Example of connection for electrical door locks MorphoWave VisionPass SP Compact terminal terminal Figure 20: Example of electric latch connection VisionPass SP - 2023_2000073596...

  • Page 38: Tamper Switch

    100 mA at 30 VDC max (Resistive load) according to the safety extra low voltage standard. This VisionPass SP terminal is part of security system; it is customer’s responsibility to connect the tamper switch (contact) to physical access controller, in order to prevent the access to the connector blocks.

  • Page 39: Wiegand Wiring

    If pull-up’s to 12V have been added on Wiegand IN D0 and Wiegand IN D1 inputs on a previous installation with a MorphoAccess® 500 Series terminal, these resistors must be removed to avoid any damage to the VisionPass SP terminal. VisionPass SP - 2023_2000073596...

  • Page 40: Wiegand Output

    LED1 and the GND wires, and it means “access granted”. The VisionPass SP terminal uses the timeout of the wait for a low level on the on LED1 wire or LED2 wire as “access denied” answer.
  • Page 41 To minimize at most the waiting time of the user, the VisionPass SP terminal timeout value, must be adjusted to a value a little bit higher than the maximal value of the controller response time. Warning: if the LED2 wire is connected, it must be constantly maintained in the high state.

  • Page 42: Serial Port Wiring

    LED IN 2 (option): panel feedback Blue / Red LED2 (Output type required: Open drain or 5V+/-5%) Green OUT0 Data (5V TTL) White OUT1 Clock (5V TTL) Black Ground for Wiegand Figure 25: Serial port wiring – DataClock Output VisionPass SP - 2023_2000073596...
  • Page 43 RS485 implementation is limited to half-duplex communication. So only Tx+, Tx- and ground reference signals are necessary. Depending on the RS485 network, an impedance adaptation may be required. For farthest terminal, a 120-Ohms resistor termination may be added outside the terminal between TX+ and TX-. VisionPass SP - 2023_2000073596...

  • Page 44: Gpio Wiring

    External Power GPI_0 supply Door GPO_0 strike GPI_1 GPIO GPO_1 GPO2 GPO1 GPO0 GPI2 GPI1 RELAY_COM GPI0 RELAY_NO/NC Door contact Figure 28: SDAC wiring If door contact is not used, GPI1 and GPO1 shall be connected together VisionPass SP - 2023_2000073596...

  • Page 45: Ethernet Connection

    RJ45 plug pinout is compliant with 100 Base T, IEEE802.3 Specification. Ethernet cable shall be shielded Default Ethernet configuration By default, VisionPass SP terminal is configured in STATIC mode with the following configuration: IP address: 192.168.1.10; Subnet Mask: 255.255.254.0 Note: Not evaluated by UL...
  • Page 46 VisionPass SP - 2023_2000073596...

  • Page 47: Internal Usb Connection

    The internal Mini USB-type B can be used for administration only to connect a mass storage USB key (with a standard Mini USB-type B / USB-type A female OTG adapter). Please refer to VisionPass SP Administration Guide for more information. USB connection is limited to USB key connection (power consumption shall not exceed...

  • Page 48: Secure Communication

    This Windows application can also be used for the full terminal configuration. Starting from version 16.3, MorphoManager can also configure the TLS communication of a VisionPass SP terminal as soon as the latter has a valid IP address Terminal integrated in a secure...

  • Page 49: User Interface

    5 / User interface 5.1 > Modes for controlling access rights 5.1.1 > Introduction The VisionPass SP terminal offers several methods for controlling access rights: it needs to be configured in one of the following four modes: Identification mode, Authentication mode,...

  • Page 50: Multi-Factor Mode

    The VisionPass SP terminal is driven through an Ethernet link using TCP, SSL or TLS protocol. The VisionPass SP terminal acts as a server: it is either waiting for a command or executing a command. The commands allowed by the VisionPass SP terminal are described in the VisionPass SP Host System Interface Specification document.

  • Page 51: Anti-Tamper / Anti-Pulling Switches

    How to Activate? External database mode can be activated by setting “ucc.enable_external_database” parameter to 1. Only an admin user can activate polling mode. You can refer to the VisionPass SP Host System Interface Specification document to know how to set this parameter.

  • Page 52: Accessories And Pc Applications

    6 / Accessories and PC applications 6.1 > Compatible Accessories The following items can be ordered directly to IDEMIA or to an official distributor, so as to enjoy all the features of your VisionPass SP terminal. 6.1.1 > Low mounting bracket This mounting bracket with 15°...

  • Page 53: Spacer

    6.1.2 > Spacer This spacer provides a 30mm thickness spacer. Dimensions:  Height: 150mm  Width: 78mm  Thickness: 30mm 6.1.3 > Visor The Visor provides an external protection to the VisionPass SP. VisionPass SP - 2023_2000073596...

  • Page 54: Metal Mount

    6.1.4 > Metal Mount Metal Mount provides a solution to install VisionPass SP on a speed gate. The Speedgate top shall be at 100cm height. 6.2 > Compatible PC applications VisionPass SP terminals are fully compatible with: MorphoManager (version 16.3 or higher) MorphoBioToolBox (version 4.8 or higher)

  • Page 55: Recommendations

    (> 30cm) from metallic elements such as iron fixations or lift gates or radio product (such as contactless smartcard reader). Performances in terms of contactless badge reading distance will decrease when metallic elements are closer. VisionPass SP - 2023_2000073596...
  • Page 56 The commands to set this configuration are: (config)# interface X poe-allocate-by value (config)# interface X poe-value 30 Note : Not evaluated by UL VisionPass SP - 2023_2000073596...
  • Page 57 Use a dry cloth to clean the terminal, especially the front face. It is recommended that the product be cleaned daily to ensure the best performance level over its lifetime. The use of acid liquids, alcohol or abrasive materials is prohibited. Use dry air spray to remove the dust out of the sensor glass. VisionPass SP - 2023_2000073596...

  • Page 58: Annex 1: Placement Recommendations

    For VisionPass SP used for enrollment, those rules must be followed. User walking to the device • VisionPass SP processes biometric data faster when users walk towards the device in the direction of the access point. Avoid position of the VisionPass SP where a user is approaching from the side.

  • Page 59: Positioning Guidelines

    8.2.1 > Overview The field of view of the VisionPass SP camera, representing the geometrical volume in which a face can be identified, is a cone. Please refer to the Quick User Guide to run the device.

  • Page 60: Specific Guidelines For Gates Or Turnstiles

    Figure 33: Avoid positioning 2 devices close to each other (front view) 8.2.2 > Specific guidelines for gates or turnstiles The installation of VisionPass SP terminals on gates or turnstiles, for instance in an entrance lobby, has some specificities that require dedicated recommendations on top of the ones exposed above.
  • Page 61 Figure 35: Rotation based on natural user flow (top view) A rotation angle of 20° is recommended, and a value of 25° should not be exceeded. 20° recommended 25° maximum Figure 36: Rotation angle (top view) VisionPass SP - 2023_2000073596...
  • Page 62 For best user experience and biometric performance, VisionPass SP is to be positioned at 1460 mm from the ground. In case the terminal is installed on a lower stand, IDEMIA recommends compensating the height with a pole. Pole 1460mm Gate...

  • Page 63: Lower Positioning: 1105 Mm

    8.2.3 > Lower positioning: 1105 mm In case VisionPass SP should positioned lower than the recommended height, there is an accessory “Low level wall mount” that can be used (see “6 / Accessories and PC applications”). This accessory allows to position VisionPass SP at 1105mm (from bottom screw) which reduced the height of around 300mm.

  • Page 64: Annex 2: Bibliography

    For the latest firmware, software, document releases, and news, please check our website: biometricdevices.idemia.com To get your login and password please contact your sales representative. 9.2 > Documents about the VisionPass SP terminal Documents about installing the terminal Quick Installation Guide, This document describes the main steps for wall mounting.
  • Page 65 Release note For each firmware version, a release note is published describing the new features, the supported products, the potential known issues, the upgrade / downgrade limitations, the recommendations, the potential restrictions… VisionPass SP - 2023_2000073596...

  • Page 66: Annex 3: Support

    Tel: +91 8929 159 665 India: Mail: support.bioterminals.in@idemia.com Tel: +91 1800 120 203 020 Website For the latest firmware, software, document releases, and news, please check our website: biometricdevices.idemia.com To get your login and password please contact your sales representative VisionPass SP - 2023_2000073596...
  • Page 67 COPYRIGHT IDEMIA 2023 Head office: IDEMIA 2, place Samuel de Champlain 92400 Courbevoie - France www.idemia.com...
