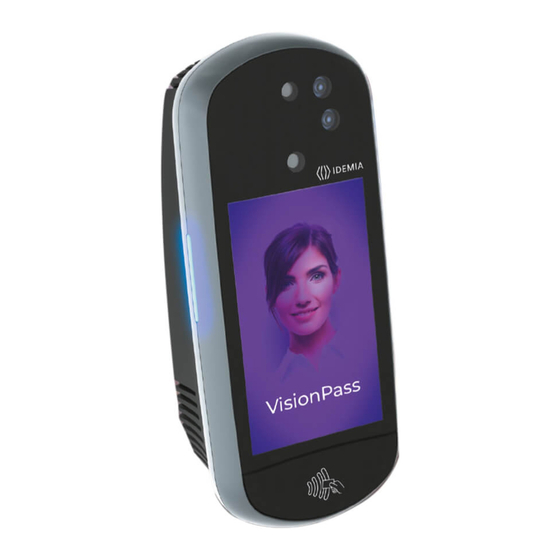

Idemia VisionPass Quick User Manual

Hide thumbs Also See for VisionPass:

Advertisement

Table of Contents

VisionPass
Quick User Guide
All descriptions illustrations, and specifications in this brochure should be
considered approximate and may relate to optional equipment or feature

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VisionPass and is the answer not in the manual?

Questions and answers

Related Manuals for Idemia VisionPass

Summary of Contents for Idemia VisionPass

  • Page 1 VisionPass Quick User Guide All descriptions illustrations, and specifications in this brochure should be considered approximate and may relate to optional equipment or feature...
  • Page 2 ITEM VisionPass terminal Wall Mounting Plate Documentation package ® ® ® ® Electronic documentation is provided in Adobe Acrobat format (PDF). Adobe Acrobat Reader is available at http://www.adobe.com. IDEMIA - 2019_2000045730 – V1 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...

  • Page 3: Regulatory, Safety And Environmental Notices

    Power Ground. Note that all connections of the VisionPass terminal described hereafter are of SELV (Safety Electrical Low Voltage) type. This symbol means do not dispose of your product with your other household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment.

  • Page 4: Optional Features

    Table of Contents Color Step Content Overview Wiring Three Communication Four SDAC (Single Door Access Control) Five Administration Software Seven Enrollment Eight Optional features IDEMIA - 2019_2000045730 – V1 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...

  • Page 5: Product Overview

    Plus, DESFire, HID® Iclass*, HID® PROX*) Universal connectivity (Gigabit Ethernet, Wi-Fi RS485/422, Wiegand, Dataclock) Optional Wifi Anti-tamper sensor interface Microphone Speaker Contactless * Depending on product version card area IDEMIA - 2019_2000045730 – V1 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 6 Installation recommendations / environment Please install Visionpass terminal vertically at the recommended height, and keep the openings clear to allow air flow. VisionPass is designed to operate in most environmental conditions. Anyway, to optimize VisionPass performance, it is better to follow the rules below : •...
  • Page 7 Terminal Implementation To secure an access, IDEMIA recommends installing the VisionPass terminal as a part of a typical Access Control system, which consists of the components described below. The VisionPass terminal Its role is to process the access request from the user. It performs access right checks using one-to-many biometric identification or one-to-one biometric verification, and/or RF card authentication, and/or PIN check.
  • Page 8 Note: One user must be enrolled in the terminal database, in order to be able to perform biometric check. IDEMIA - 2019_2000045730 – V1 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...

  • Page 9: Access Control Modes

    Identifier on the keypad, or a Wiegand frame is received from an external device stored on the contactless card or in the user record in the terminal’s local database (**) IDEMIA - 2019_2000045730 – V1 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 10 General precautions  Do not expose the terminal to extreme temperatures.  When the environment is very dry, avoid synthetic carpeting near the VisionPass terminal, to reduce the risk of unwanted electrostatic discharge. Areas containing combustibles  Do not install the terminal in the vicinity of gas stations or any other installation containing flammable or combustible gases or materials.

  • Page 11: User Guidance

    User Guidance Using Icons : intuitive icons indicate the user to move back or closer, or move left or right. User Guidance Using Camera : terminal will display a live feedback of the camera IDEMIA - 2019_2000045730 – V1 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 12 Deliberate trigger By default, VisionPass will react when a user enters in the intention area, and will start facial acquisition as soon as a user enters in the coding area and looks at the terminal. Note that the video stream is never recorded by VisionPass.

  • Page 13: Wiring Overview

    Backup of the Date/Time of the terminal: the volatile settings (such as date/time) of the terminal are protected against power failure, by a dedicated component during a least 24 hours (at 25 C) without external power supply. IDEMIA - 2019_2000045730 – V1 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...

  • Page 14: Power Supply

    If sharing power between devices, each unit must receive 3A (e.g. two units would require a 12 VDC, 6A supply). A battery backup or uninterrupted power supply (UPS) with built-in surge protection is recommended. Maximum distance (meters) vs IDEMIA recommends using a 24V 3A power supply and power source rating Gauge Section AWG16 gauge cable.
  • Page 15 A maximum of 31 devices may be installed on the same line.  The maximum total cable length is 1200m (4000 ft.)  The cable must be dedicated to this installation and not used for any other purpose IDEMIA - 2019_2000045730 – V1 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 16 Another conductor should be used for Signal Ground (Black / Red wire - 11). The maximum total cable length is 4000 ft. (1200m). The cable must be dedicated to this installation and not used for any other purpose IDEMIA - 2019_2000045730 – V1 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 17 Use a category 6 shielding cable (120 Ohms) or better. It is strongly recommended station to insert a repeater unit every 90 m. Static mode is enabled by default on VisionPass terminals (factory setting) : IP=192.168.1.10, Gateway=192.168.1.254, Mask= 255.255.254.0 WLAN option...
  • Page 18 For 18 AWG, the maximum cable distance is (150m) 500 ft. ; for 20 AWG, the maximum is 90m (300 ft.) ; for 22 AWG, the maximum is 60m (200 ft.) All controller output shall be open drain or 5 V +/- 5% IDEMIA - 2019_2000045730 – V1 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 19 Data WIEGAND_OUT0 Green Clock WIEGAND_OUT1 White Data Clock In Data WIEGAND_IN0 Green / Red WIEGAND_GND Black / Red Data Clock Out Card present GPO0 Yellow (Legacy Morpho Mode) IDEMIA - 2019_2000045730 – V1 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 20 If door contact is not used, GPI1 (17) and GPO1 (18) shall be connected together Power supply from electrical source shall be switched off before starting the installation. IDEMIA - 2019_2000045730 – V1 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 21  The internal relay is designed for 100.000 cycles. If more cycles are needed, an external relay driven by GPO must be used. IDEMIA - 2019_2000045730 – V1 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 22 Language Settings: user interface language selection, Network Settings: LAN or WLAN parameters Password Settings: terminal administration password modification Boot assistant at next boot: Display this screen on next boot. IDEMIA - 2019_2000045730 – V1 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 23 Exit or Go For security reasons, it Cancel) Home is highly recommended to change the devices default password to a custom password. Validation or Cancel or confirmation refuse IDEMIA - 2019_2000045730 – V1 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 24 Terminal administration with MorphoBioToolBox (MBTB) application The VisionPass terminal can be configured using a dedicated (Windows) application : MorphoBioToolBox Please note that this application has an embedded User Guide (Help menu). IDEMIA - 2019_2000045730 – V1 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 25 Software for Terminal Remote Administration and Enrollment VisionPass Terminals are compatible with MorphoManager application (version 14.3 or higher) IDEMIA - 2019_2000045730 – V1 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 26 User’s record expiry date User to include in authorized list or in VIP list User specific access rules definition Note: Refer to User enrollment section in VisionPass Administration Guide. IDEMIA - 2019_2000045730 – V1 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 27 Local Enrollment Process 2/2 Please stand still in front of the product with your face clearly visible Remove all « non-always on » accessories. Remove your glasses. IDEMIA - 2019_2000045730 – V1 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 28 The PIN code is entered using a numeric keypad to extract and type of card. displayed on the LCD touch screen. IDEMIA - 2019_2000045730 – V1 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 29 Time and Attendance feature VisionPass terminals support an optional Time and Attendance (T&A) feature. For this, the terminal adds a specific T&A information to each identification or authentication record stored in the embedded event log database. This information is provided by the user through a specific screen displayed during identification or authentication process.
  • Page 30 Date / Time synchronization  The VisionPass terminal clock has a +/- 10 ppm typical time deviation at +25°C (roughly +/- 1sec per day). At lower and higher temperature, deviation may be greater (maximum : 8 seconds per 48 hours).
  • Page 31 This document describes the terminals physical mounting procedure, electrical interfaces and connection procedures. Documents about administrating / using the terminal VisionPass Quick User Guide, Ref. 2019_2000045730 (this document) This document gives a quick overview of the product and the basics of configuration and use.
  • Page 32 Copyright © 2020, IDEMIA. All rights reserved. www.idemia.com Reproduction in whole or in part in any form or medium without the express written permission of IDEMIA is prohibited. The trademarks identified herein are the trademarks of registered trademarks of IDEMIA, or other third party.
