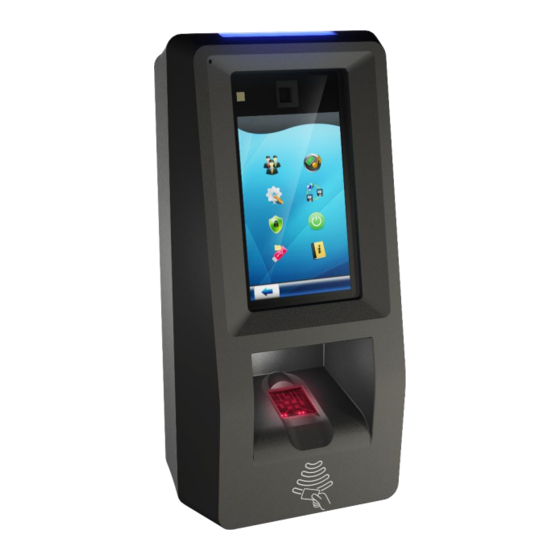

Idemia MorphoAccess SIGMA Extreme Series Quick User Manual

Hide thumbs Also See for MorphoAccess SIGMA Extreme Series:

Advertisement

Quick Links

Download this manual
MorphoAccess
Extreme Series
Quick User Guide
2017_2000024419 – V4
All descriptions, illustrations, and specifications in this brochure should be
considered approximate and may relate to optional equipment or feature
IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED
®
SIGMA

Advertisement

loading
Need help?

Need help?

Do you have a question about the MorphoAccess SIGMA Extreme Series and is the answer not in the manual?

Questions and answers

Related Manuals for Idemia MorphoAccess SIGMA Extreme Series

Summary of Contents for Idemia MorphoAccess SIGMA Extreme Series

  • Page 1 ® MorphoAccess SIGMA Extreme Series Quick User Guide 2017_2000024419 – V4 All descriptions, illustrations, and specifications in this brochure should be considered approximate and may relate to optional equipment or feature IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 2 Table of Contents Color Step Content Overview Wiring Three Communication Four SDAC (Single Door Access Control) Five Administration Software Seven Enrollment Eight Optional features IDEMIA - 2017_2000024419 – V4 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...

  • Page 3: Product Overview

    USB mass storage key) Or MIFARE™ DESFire™ 13,56MHz (SIGMA … MULTI) USB host port Power consumption shall not exceed 200mA 125kHz (SIGMA … PROX) ® ® Or HID Prox IDEMIA - 2017_2000024419 – V4 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 4 SIGMA Extreme terminal Wall Mounting Plate Documentation package ® ® ® ® Electronic documentation is provided in Adobe Acrobat format (PDF). Adobe Acrobat Reader is available at http://www.adobe.com. IDEMIA - 2017_2000024419 – V4 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 5 Terminal Implementation ® To secure an access, IDEMIA recommends installing the MorphoAccess SIGMA Extreme Series terminal as a part of a typical Access Control system, which consists of the components described below. ® The MorphoAccess SIGMA Extreme Series terminal Its role is to process the access request from the user. It performs access right checks using one-to-many biometric identification or one-to-one biometric verification, and/or RF card authentication, and/or PIN check.
  • Page 6 User’s fingerprints can be stored in the terminal database, in contactless card or in an external server database, to enable biometric check. IDEMIA - 2017_2000024419 – V4 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...

  • Page 7: Access Control Modes

    Identifier on the keypad, or a Wiegand frame is received from an external device stored on the contactless card or in the user record in the terminal’s local database (**) IDEMIA - 2017_2000024419 – V4 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 8 Avoid biometric sensor exposure to a blinking light Avoid direct exposure of the biometric sensor to sunlight or to UV lights. In exceptional circumstances of ambient temperature and sun exposure, the screen may feel hot IDEMIA - 2017_2000024419 – V4 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...

  • Page 9: Wiring Overview

    Backup of the Date/Time of the terminal: the volatile settings (such as date/time) of the terminal are protected against power failure, by a dedicated component during a least 24 hours (at 25 C) without external power supply. IDEMIA - 2017_2000024419 – V4 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...

  • Page 10: Power Wiring

    1A (e.g. two units would require a 12vDC, 2A supply). A battery backup or uninterrupted power supply (UPS) with built-in surge protection is recommended. IDEMIA recommends using a gauge AWG20 for 12V power supply. Maximum drop voltage...
  • Page 11 A maximum of 31 devices may be installed on the same line.  The maximum total cable length is 4000 ft. (1200m).  The cable must be dedicated to this installation and not used for any other purpose IDEMIA - 2017_2000024419 – V4 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 12 Another conductor should be used for Signal Ground (Black / Red wire - 7). The maximum total cable length is 4000 ft. (1200m). The cable must be dedicated to this installation and not used for any other purpose IDEMIA - 2017_2000024419 – V4 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 13 Ethernet signal sensibility. Open, WPA and WPA2 are Connect Rx+ and Rx- with the same twisted-pair wire (and to do the same with supported. Tx+/Tx- and the other twisted-pair wire). IDEMIA - 2017_2000024419 – V4 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 14 For 18 AWG, the maximum cable distance is 500 ft. (150m); for 20 AWG, the maximum is 300 ft. (90m); for 22 AWG, the maximum is 200 ft. (60m). All controller output shall be open drain or 5V+/-5% IDEMIA - 2017_2000024419 – V4 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 15 Data WIEGAND_OUT0 Green Clock WIEGAND_OUT1 White Data Clock In Data WIEGAND_IN0 Green / Red WIEGAND_GND Black / Red Data Clock Out Card present GPO0 Yellow (Legacy Morpho Mode) IDEMIA - 2017_2000024419 – V4 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 16 If door contact is not used, GPI1 (15) and GPO1 (16) shall be connected together Power supply from electrical source shall be switched off before starting the installation. IDEMIA - 2017_2000024419 – V4 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 17  The internal relay is designed for 100.000 cycles. If more cycles are needed, an external relay driven by GPO must be used. IDEMIA - 2017_2000024419 – V4 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 18 Boot assistant at next boot: Display this screen on next boot. Protocol Settings: select communication protocol : Bioscrypt 4G terminals, MA 500 and J Series (MA2G), or MorphoAccess SIGMA (MA5G) IDEMIA - 2017_2000024419 – V4 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 19 Terminal Restart security terminal For security reasons, it is highly recommended to change the devices default password to a custom password. USB key Information management about terminal IDEMIA - 2017_2000024419 – V4 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 20 “Please Send Link for MBTB” in the subject of your e-mail. A link to download the software will be e-mailed to you. Other countries : please contact your sales representative. IDEMIA - 2017_2000024419 – V4 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 21 Desktop PC, Laptop, Tablet or smart phone. The connection to the embedded Webserver, through LAN or WLAN, requires terminals IP address and terminals password. Deactivate Webserver if not used. IDEMIA - 2017_2000024419 – V4 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 22 MEMS (version 7.3.1 or higher), The limitations in Morpho Legacy mode are described in the following document: >MorphoAccess ® SIGMA Extreme Series Release Note - Legacy Morpho limitations IDEMIA - 2017_2000024419 – V4 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 23 User’s access schedule and holiday schedule User’s dynamic message setting User’s record expiry date User to include in white list or in VIP list User specific access rules definition IDEMIA - 2017_2000024419 – V4 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 24 /or warm it up. figure above. ergonomically more difficult to use) For handling large scale enrolments please contact your IDEMIA representative for training and services options IDEMIA - 2017_2000024419 – V4 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 25 • Do not tilt the finger on right or left side of the sensor Finger Angle Correct Position: • The finger must be parallel to sensor sides IDEAL POSITION IDEMIA - 2017_2000024419 – V4 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 26 • Finger is parallel to sensor surface IDEAL POSITION Incorrect Position: Finger • Do not roll finger rotation Correct Position: • Finger is parallel to surface sensor IDEAL POSITION IDEMIA - 2017_2000024419 – V4 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 27 User ID), and starts the authentication The PIN code is entered using a numeric keypad process, as defined by the terminal settings. displayed on the LCD touch screen. IDEMIA - 2017_2000024419 – V4 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 28 Depending on terminal settings, this screen is displayed before or after the user place his finger on the sensor or his card in front of the reader. An extended mode is also available with 16 function keys. IDEMIA - 2017_2000024419 – V4 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 29 The use of acid liquids, alcohol or abrasive materials is prohibited. Firmware release To get the best of our technology, we recommend you to download and install the last firmware release (please refer to last page) IDEMIA - 2017_2000024419 – V4 IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 30 / downgrade limitations, the recommendations, the potential restrictions… North and South America: you may obtain these document by e-mailing support.bioterminals@idemia.com with your name, phone number, MA SIGMA Extreme serial number and “Send Links For MA SIGMA Extreme Documents” in the subject line.
  • Page 31 Copyright © 2017, IDEMIA. All rights reserved. www.idemia.com Reproduction in whole or in part in any form or medium without the express written permission of IDEMIA is prohibited. The trademarks identified herein are the trademarks of registered trademarks of IDEMIA, or other third party.
