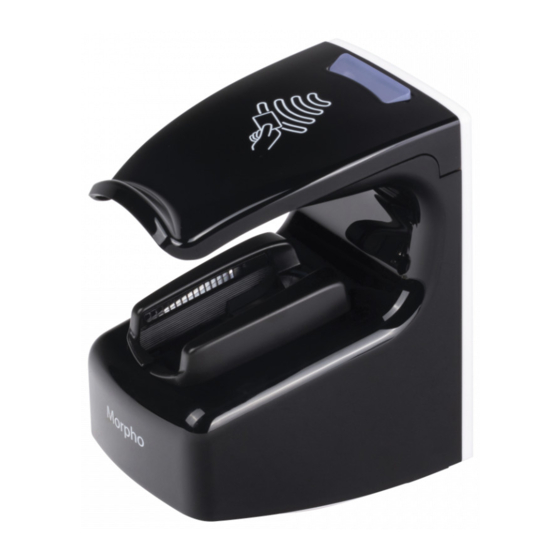

Idemia MorphoAccess VP MD Quick User Manual

Hide thumbs Also See for MorphoAccess VP MD:

Advertisement

Quick Links

Download this manual
®
MorphoAccess
VP MD
Quick User Guide
2019_2000041669-V1
All descriptions, illustrations, and specifications in this brochure should be considered approximate and may relate to optional equipment or feature
IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MorphoAccess VP MD and is the answer not in the manual?

Questions and answers

Related Manuals for Idemia MorphoAccess VP MD

Summary of Contents for Idemia MorphoAccess VP MD

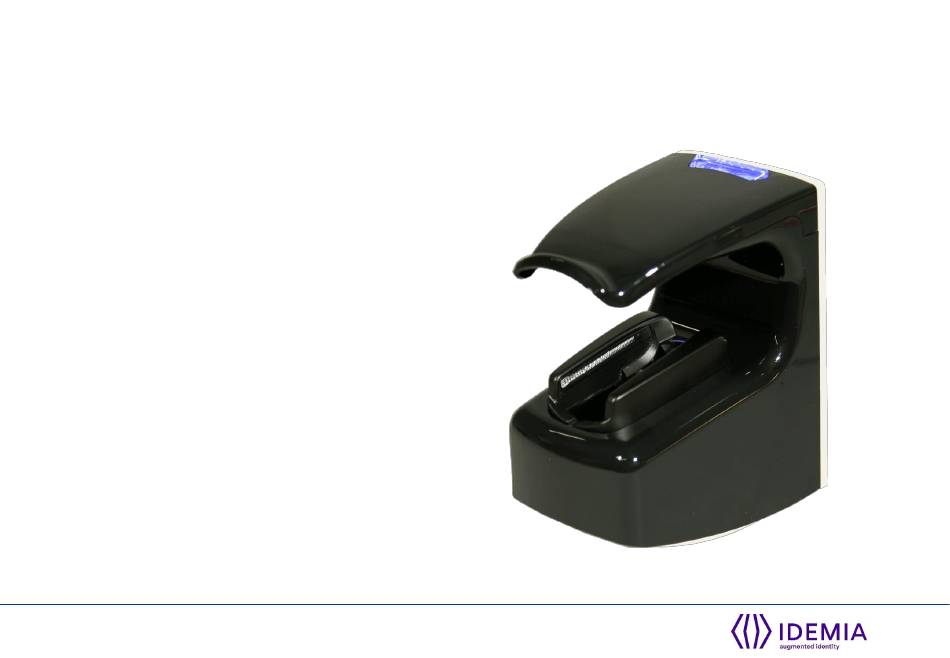

  • Page 1 ® MorphoAccess VP MD Quick User Guide 2019_2000041669-V1 All descriptions, illustrations, and specifications in this brochure should be considered approximate and may relate to optional equipment or feature IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED.
  • Page 2 Table of Contents Color Step Content Overview Wiring Three Communication Four ACP or SDAC Five Administration Software Seven Enrollment Eight Optional features MorphoAccess® VP MD – Quick User IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED. Guide - 2019_2000041669-V1...

  • Page 3: Product Overview

    Multimodal biometrical installation of a Wi-Fi™ sensor (optical) USB dongle) (plugged under the terminal) Power consumption shall not exceed 500mA MorphoAccess® VP MD – Quick User IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED. Guide - 2019_2000041669-V1...
  • Page 4 M3-10 K25-8 Torx 8 Print Torx 10 Print Electronic documentation is provided in Adobe® Acrobat® format (PDF). Adobe® Acrobat® Reader is available at http://www.adobe.com. MorphoAccess® VP MD – Quick User IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED. Guide - 2019_2000041669-V1...
  • Page 5 ® MorphoAccess VP MD terminal Implementation ® To secure an access, IDEMIA recommends installing the MorphoAccess VP MD terminal as a part of a typical Access Control system, which consists of the components described below. ® The MorphoAccess VP MD terminal...
  • Page 6 User’s fingerprints and veins must be stored in the terminal database or in contactless card, to enable biometric check. MorphoAccess® VP MD – Quick User IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED. Guide - 2019_2000041669-V1...
  • Page 7 (* ) or a Wiegand frame is received from an external device (**) stored on the contactless card or in the user record in the terminal’s local database MorphoAccess® VP MD – Quick User IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED. Guide - 2019_2000041669-V1...
  • Page 8 The terminal should be installed in controlled lighting conditions  Avoid biometric sensor exposure to a blinking light Avoid direct exposure of the biometric sensor to sunlight or to UV lights.  MorphoAccess® VP MD – Quick User IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED. Guide - 2019_2000041669-V1...

  • Page 9: Wiring Overview

    Backup of the Date/Time of the terminal: the volatile settings (such as date/time) of the terminal are protected against power failure, by a dedicated component during a least 24 hours (at 25 C) without external power supply. MorphoAccess® VP MD – Quick User IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED. Guide - 2019_2000041669-V1...

  • Page 10: Power Wiring

    1A (e.g. two units would require a 12vDC, 2A supply). A battery backup or uninterrupted power supply (UPS) with built-in surge protection is recommended. IDEMIA recommends using a gauge AWG20 for 12V power supply. Maximum drop voltage...
  • Page 11 The maximum total cable length is 4000 ft. (1200m).  The cable must be dedicated to this installation and not used for any other purpose MorphoAccess® VP MD – Quick User IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED. Guide - 2019_2000041669-V1...
  • Page 12 WLAN option This option is available only with Wi-Fi™ dongle (and adaptation Wireless cable) delivered by IDEMIA (kit reference 293658530), requires the terminal be powered by an external AC/DC 12V to 24V power supply (the POE feature doesn’t provide enough Management power for the terminal and the dongle).
  • Page 13 For 18 AWG, the maximum cable distance is 500 ft. (150m); for 20 AWG, the maximum is 300 ft. (90m); for 22 AWG, the maximum is 200 ft. (60m). All controller output shall be open drain or 5V+/-5% MorphoAccess® VP MD – Quick User IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED. Guide - 2019_2000041669-V1...
  • Page 14 Data Clock In WIEG_IN_D1 White / Red WIEGAND_GND Black / Red Data WIEG_OUT_D0 Green Clock WIEG_OUT_D1 White Data Clock Out WIEG_OUT_LED1 Blue WIEG_OUT_LED2 Blue / Red MorphoAccess® VP MD – Quick User IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED. Guide - 2019_2000041669-V1...
  • Page 15 If door contact is not used, GPI1 (Orange / Red wire) and GPO1 (Yellow / Red wire) shall be connected together • Power supply from electrical source shall be switched off before starting the installation. MorphoAccess® VP MD – Quick User IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED. Guide - 2019_2000041669-V1...
  • Page 16 1A, an external relay must be used.  The internal relay is designed for 100.000 cycles. If more cycles are needed, an external relay driven by GPO must be used. MorphoAccess® VP MD – Quick User IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED. Guide - 2019_2000041669-V1...

  • Page 17: Network Connection Methods

    If no DHCP server is available, it is necessary to configure a static IP on each terminal and PC. ‒ Use MorphoBioToolBox to configure network parameters (see next page) MorphoAccess® VP MD – Quick User IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED. Guide - 2019_2000041669-V1...
  • Page 18  A high pitched beep, followed by purple led panel blinking and high pitched beeps and green led panel will indicate configuration is finished MorphoAccess® VP MD – Quick User IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED. Guide - 2019_2000041669-V1...
  • Page 19 Desktop PC, Laptop, Tablet or smart phone. The connection to the embedded Webserver, through LAN or WLAN, requires terminals IP address and terminals password. Deactivate Webserver if not used. MorphoAccess® VP MD – Quick User IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED. Guide - 2019_2000041669-V1...
  • Page 20 “Please Send Link for MBTB” in the subject of your e-mail. A link to download the software will be e- mailed to you. Other countries: please contact your sales representative. MorphoAccess® VP MD – Quick User IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED. Guide - 2019_2000041669-V1...
  • Page 21  MorphoManager (version 13.1.9 or higher),  Morpho Integrator’s Kit (MIK) software development kit (version 6 or later),  MorphoBioToolBox (version 4.1.2 or later). MorphoAccess® VP MD – Quick User IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED. Guide - 2019_2000041669-V1...
  • Page 22 (please refer to next pages) those who have short fingers For handling large scale enrollments please contact your IDEMIA representative for training and services options MorphoAccess® VP MD – Quick User IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED.
  • Page 23 (2).  Place finger root on its positioning guide (3).  Let rest hand palm on the shell of the terminal Keep finger straight. MorphoAccess® VP MD – Quick User IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED. Guide - 2019_2000041669-V1...
  • Page 24  Do not bend finger.  Do not arch finger backwards  Do not tense finger and do not press strongly so as to avoid blood vessels constriction. MorphoAccess® VP MD – Quick User IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED. Guide - 2019_2000041669-V1...
  • Page 25 Move finger USB script USB script Database Database finished failed empty / not empty / waiting finger waiting finger MorphoAccess® VP MD – Quick User IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED. Guide - 2019_2000041669-V1...
  • Page 26 The terminal reads the user data stored in the card (at least the User ID), and starts authentication process, as required by terminal settings MorphoAccess® VP MD – Quick User IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED. Guide - 2019_2000041669-V1...
  • Page 27 A dry cloth should be used to clean the terminal, especially the biometric sensor.  The use of acid liquids, alcohol or abrasive materials is prohibited. MorphoAccess® VP MD – Quick User IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED. Guide - 2019_2000041669-V1...
  • Page 28 MorphoAccess® serial number and “Send Links For MA SIGMA Documents” in the subject line. Other countries: please contact your sales representative. MorphoAccess® VP MD – Quick User IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED. Guide - 2019_2000041669-V1...
  • Page 29 Copyright © 2019, IDEMIA. All rights reserved. www.idemia.com Reproduction in whole or in part in any form or medium without the express written permission of IDEMIA is prohibited. The trademarks identified herein are the trademarks of registered trademarks of IDEMIA, or other third party.
