Idemia VisionPass SP Quick Installation Manual

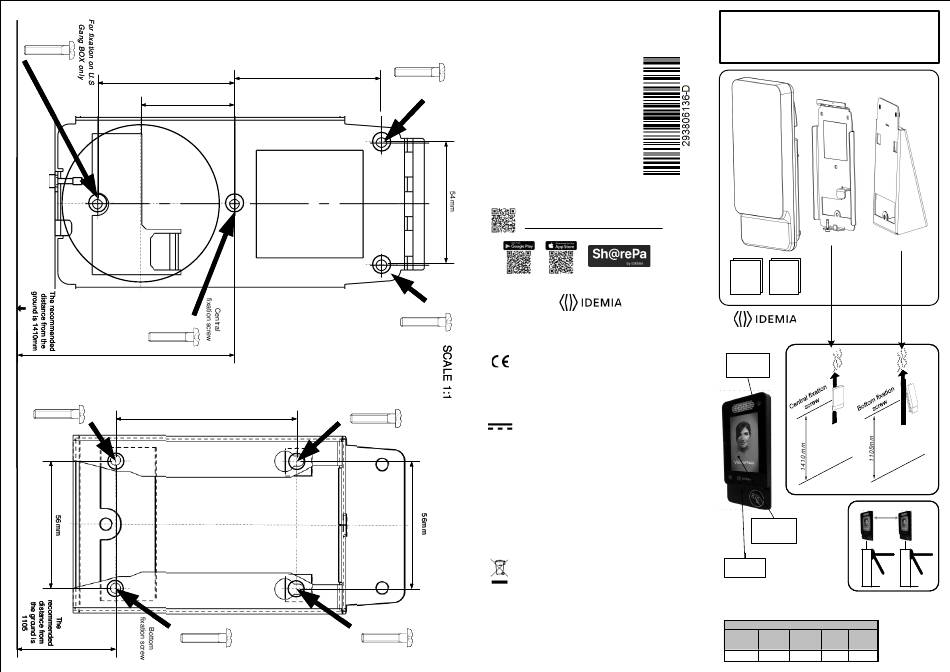

VisionPass SP wall mounting plate
Φ = 4mm Φ = 4mm
61mm 61mm
42mm 42mm
Φ = 4mm Φ = 4mm
VisionPass SP optional spacer with angle
Φ = 4mm Φ = 4mm Φ = 4mm
80mm 80mm 80mm
Φ = 4mm Φ = 4mm Φ = 4mm
65mm 65mm
Φ = 4mm Φ = 4mm
Φ = 4mm Φ = 4mm
Φ = 4mm Φ = 4mm Φ = 4mm
Φ = 4mm Φ = 4mm Φ = 4mm
Technical Support and Hotline
USA & Canada
Mail: support.bioterminals.us@idemia.com
Tel: +1 888 940 7477
LATAM (Latin America)
Mail: support.bioterminals.us@idemia.com
Tel: +1 714 575 2973
EMEA (Europe, Middle-East, Africa)
Mail: support.bioterminals@idemia.com
Tel: +33 1 30 20 30 40
APAC (Asia & Pacific)
Mail: support.bioterminals.in@idemia.com
Tel: +91 8929 159 665
India
Mail: support.bioterminals.in@idemia.com
Tel: +91 1800 120 203 020
Detailed instructions are available at
Des instructions détaillées sont disponibles sur
El detalle de las instrucciones está disponible en
https://biometricdevices.idemia.com
COPYRIGHT © 2023, IDEMIA
Head office :
2, place Samuel de Champlain - 92400 Courbevoie
Regulatory, Safety and Environmental Notices
Products bearing the CE marking comply with one or more of the following
EU Directives as may be applicable:
Radio Equipment Directive (RED) 2014/53/UE
RoHS Directive 2011/65/EU.
Compliance with these directives is assessed using applicable European
Harmonised Standards.
Reach: Declaration letter available on : https://biometricdevices.idemia.com
means Direct Current (DC)
The installation of this product should be made by a qualified service
Person and should comply with all local regulations.
This product is intended to be installed with a power supply complying with
IEC 60950-1 or IEC 62368-1, in accordance with the National Electrical
Code (NEC) Class 2 (NFPA 70) requirements and the local authority
having jurisdiction, and with class II according to IEC regulations.
Limited Power source (LPS) should rate 12VDC 2.5A minimum or 24VDC
1.25A minimum, the voltage measured on the product block connector of
the terminal must be equal to 12V-24V (-15% / +10%), the power supply
cable length should not exceed 10 meters.
In case of building-to-building connection it is recommended to connect 0V
to ground. Ground cable must be connected with the terminal block Power
Ground.
Note that all connections of the VisionPass SP terminal described hereafter
are of SELV (Safety Electrical Low Voltage) type.
This symbol means do not dispose of your product with your other
household waste. Instead, you should protect human health and the
environment by handing over your waste equipment to a designated
collection point for the recycling of waste electrical and electronic
equipment.
Este equipamento não tem direito à proteção contra interferência
Anatel prejudicial e não pode causar interferência em sistemas devidamente
autorizados.
Para maiores informações, consulte o site da ANATEL : www.anatel.gov.br
VisionPass SP
Quick Installation Guide
(Optional – not included)
Quick
WEEE
Guides
Contactless
biometric
sensor
80 cm
min.
5" WVGA
touchscreen
LCD
Contactless
Card area
Models:
VisionPass SP MD (MPH-AC008A)
VisionPass SP MDI (MPH-AC008A)
UL294 Performance levels UL294 Performance levels
Access Access
Destructive Destructive Stand-by Stand-by
Control Line Control Line Endurance Endurance Conditions Conditions
Attack Attack Power Power
Security Security
Level I Level I Level I Level I Level IV Level IV Level I Level I NA NA
