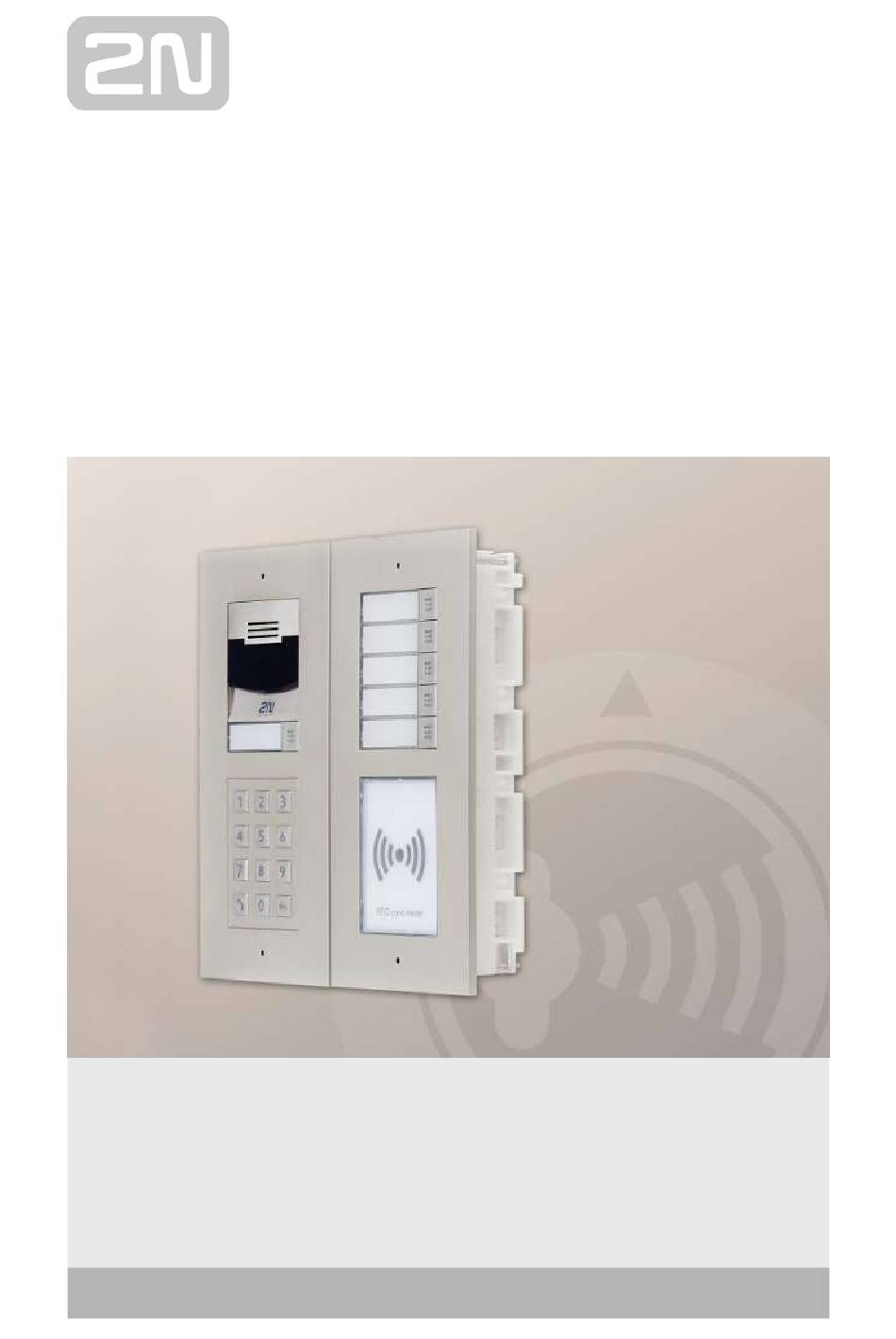

2N LTE Verso
Modular LTE Intercom
Installation Manual
Firmware:
1.5
Version:
1.5
®
www.2n.cz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LTE Verso and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for 2N LTE Verso

Summary of Contents for 2N LTE Verso

  • Page 1 ® 2N LTE Verso Modular LTE Intercom Installation Manual Firmware: Version: www.2n.cz...
  • Page 2 2N TELEKOMUNIKACE a.s. administers the FAQ database to help you quickly find information and to answer your questions about 2N products and services. On www. faq.2n.cz you can find information regarding products adjustment and instructions for optimum use and procedures „What to do if...".

  • Page 3: Table Of Contents

    3.3 Touch Display Intercom Control As Viewed by External User 3.4 Intercom Control as Viewed by Internal User 3.5 Maintenance 3.6 Downloads 4. Technical Parameters 4.1 General drawings 5. Supplementary Information 5.1 Troubleshooting 5.2 Directives, Laws and Regulations 5.3 General Instructions and Cautions 2N TELEKOMUNIKACE a.s., www.2n.cz 3/251...

  • Page 4: Product Overview

    1. Product Overview Here is what you can find in this section: 1.1 Components and Associated Products 1.2 Terms and Symbols 2N TELEKOMUNIKACE a.s., www.2n.cz 4/251...

  • Page 5: Basic Features

    A mobile LTE connection makes it possible to install devices where no LAN cable connection is available. The My2N portal helps make calls to mobile phones and appropriate 2N devices without complex configuration.
  • Page 6 Audio quality – using the automatic echo cancelling system, full duplex communication is available at any time. ® LTE Verso installation – simply assemble the modules, insert a SIM card and connect a power supply. The modules are plug&play, so you do not have to configure them manually.

  • Page 7: Advantages Of Use

    Video codecs (H.263, H.263+, H.264, MPEG-4, MJPEG) Audio codecs (G.711, G.729, G.722, L16/16kHz) HTTP server for configuration SNTP client for time synchronisation SMTP client for email sending, Picture to Email feature TFTP/HTTP client for automated firmware and configuration upgrade and update 2N TELEKOMUNIKACE a.s., www.2n.cz 7/251...

  • Page 8: Components And Associated Products

    Caution ® Verso supports T-Mobile and AT&T for the US. 2N TELEKOMUNIKACE a.s., www.2n.cz 8/251...
  • Page 9 The main unit installation requires two frame/box positions one of which is left for additional installation of a module or internal antenna stuck to a plastic blind. One blind module with a stuck LTE antenna is supplied with the main unit. 2N TELEKOMUNIKACE a.s., www.2n.cz 9/251...

  • Page 10: External Antennas

    Removing the stuck LTE antenna from the blind module and subsequent placement into another device part, under any card reader module, e.g., results in interference and deteriorated functionality of the whole device. External Antennas 2N Part No. 9155048 ® LTE Verso – external antenna Axis Part No.
  • Page 11 Diagnostic device 2N Part. No. 9155049 ® LTE Verso – debug LAN module ® used fot LTE Verso troubleshooting and configuration 2N TELEKOMUNIKACE a.s., www.2n.cz 11/251...
  • Page 12 Flush mounting frame, 1 module 2N Part No. 9155011 Axis Part No. 01278-001 Flush mounting frame, 1 module 2N Part No. 9155011B Axis Part No. 01279-001 Flush mounting frame, 2 modules 2N Part No. 9155012 Axis Part No. 01280-001 2N TELEKOMUNIKACE a.s., www.2n.cz 12/251...
  • Page 13 Flush mounting frame, 2 modules Part No. 9155012B Axis Part No. 01281-001 Flush mounting frame, 3 modules Part No. 9155013 Axis Part No. 01282-001 2N TELEKOMUNIKACE a.s., www.2n.cz 13/251...
  • Page 14 Flush mounting frame, 3 modules Part No. 9155013B Axis Part No. 01283-001 Surface mounting frame, 1 module Part No. 9155021 Axis Part No. 01287-001 2N TELEKOMUNIKACE a.s., www.2n.cz 14/251...
  • Page 15 Surface mounting frame, 1 module Part No. 9155021B Axis Part No. 01288-001 Surface mounting box, 2 modules Part No. 9155022 Axis Part No. 01289-001 2N TELEKOMUNIKACE a.s., www.2n.cz 15/251...
  • Page 16 Surface mounting box, 2 modules Part No. 9155022B Axis Part No. 01290-001 Surface mounting box, 3 modules Part No. 9155023 Axis Part No. 01291-001 2N TELEKOMUNIKACE a.s., www.2n.cz 16/251...
  • Page 17 ) – 1-module flush mounting box (Part No. 9155014 2-module frame (Part No. 9155012 ) – 2-module flush mounting box (Part No. 9155015 3-module frame (Part No. 9155013 ) – 3-module flush mounting box (Part No. 9155016 2N TELEKOMUNIKACE a.s., www.2n.cz 17/251...

  • Page 18: Extending Modules

    Extending Modules ® 2N Part No. 9155030 IP/LTE Verso – Infopanel The Infopanel module helps you place such Axis Part. No. 01252-001 information into the intercom installation as house number, opening hours and similar data. The Infopanel backlight is software controlled.
  • Page 19 2N Part No. 9155047 ® IP/LTE Verso – Touch keypad Axis Part No. 01277-001 The numeric touch keypad module helps you dial users via their phonebook positions or phone numbers, control the lock and use other code-accessible functions. The keypad digits and symbols are backlit.
  • Page 20 125 kHz and 13.56 MHz cards or other carriers (only card serial number is read): 125 kHz EM4xxx 13.56 MHz ISO14443A (Mifare, DESFire) PicoPass (HID iClass) FeliCa ST SR(IX) ® Mobile Key 2N TELEKOMUNIKACE a.s., www.2n.cz 20/251...
  • Page 21 125 kHz and 13.56 MHz cards or other carriers (only card serial number is read): 125 kHz EM4xxx 13.56 MHz ISO14443A (Mifare, DESFire) PicoPass (HID iClass) FeliCa ST SR(IX) ® Mobile Key HID SE (Seos, iClass SE, Mifare 2N TELEKOMUNIKACE a.s., www.2n.cz 21/251...
  • Page 22 SmartPhones and 2N Mobile Key application for access to controlled areas. A USB driver is required for the external reader to work properly. 2N Part No. 9155034 ® IP/LTE Verso – I/O Axis Part No. 01257-001 The module provides logical inputs and outputs for sensor integration.
  • Page 23 2N Part No. 9155035 ® IP/LTE Verso – 5 buttons Axis Part No. 01258-001 A module with 5 mechanical quick dial buttons. The buttons are backlit and can include nametags. 2N Part No. 9155036 ® IP/LTE Verso – Touch display Axis Part No.
  • Page 24 2N Part No. 9155038 ® IP/LTE Verso – Tamper switch Axis Part No. 01260-001 The module secures your system against tampering by detecting intercom opening or top frame removing. The module is installed on a special place and needs no separate position.
  • Page 25 Axis Part No. 01263-001 The induction loop module is used to transmit an audio signal directly into a hearing aid via a magnetic field. 2N Part No. 9155086 ® IP/LTE Verso – Secured RFID card reader Axis Part No. 01264-001 NFC support, 13.56 MHz...
  • Page 26 2N Part No. 9155045 ® IP/LTE Verso – Fingerprint reader Axis Part No. 01276-001 The Fingerprint reader is used for verification of human fingers for access control and intercom control. 2N Part No. 9155050 1 m extension cable Axis Part No. 01267-001 Only one extension cable is allowed.
  • Page 27 2N Part No. 9155054 3 m extension cable Axis Part No. 01268-001 Only one extension cable is allowed. Maximum bus length is 7 m. 2N Part No. 9155055 5 m extension cable Axis Part No. 01269-001 Only one extension cable is allowed.

  • Page 28: Mounting Accessories

    Part No. 9155015 Flush mounting box Axis Part No. 01285-001 2 modules Designed for flush or plasterboard mounting of 2-module sets and delivered including accessories for multiple box assemblies 2N TELEKOMUNIKACE a.s., www.2n.cz 28/251...
  • Page 29 Part No. 9155061 Backplate, 1 module Axis Part No. 01293-001 For glass or uneven surface installations Part No. 9155062 Backplate, 2 modules Axis Part No. 01294-001 For glass or uneven surface installations 2N TELEKOMUNIKACE a.s., www.2n.cz 29/251...
  • Page 30 Backplate, 2 (w) x 2 (h) modules Axis Part No. 01296-001 For glass or uneven surface installations Part No. 9155065 Backplate, 3 (w) x 2 (h) modules Axis Part No. 01297-001 For glass or uneven surface installations 2N TELEKOMUNIKACE a.s., www.2n.cz 30/251...
  • Page 31 Backplate, 2 (w) x 3 (h) modules Axis Part No. 01298-001 For glass or uneven surface installations Part No. 9155067 Backplate, 3 (w) x 3 (h) modules Axis Part No. 01299-001 For glass or uneven surface installations 2N TELEKOMUNIKACE a.s., www.2n.cz 31/251...
  • Page 32 Axis Part No. 01940-001 Choose the proper frame and, if necessary, mounting box type depending on your ® ® particular LTE Verso installation needs. LTE Verso is designed for outdoor applications and requires no additional roof. 2N TELEKOMUNIKACE a.s., www.2n.cz 32/251...

  • Page 33: Internal Units And Accessories

    2N IP/LTE intercoms . You can Axis Part No. 01671-001 display and start conversation with the person standing at the door, unlock the door or turn on the entrance hall light. 2N TELEKOMUNIKACE a.s., www.2n.cz 33/251...

  • Page 34: Voip Phones

    Touchscreen and keypad control. Part No. 91378358 Grandstream GXV3275 VoIP telephone Axis Part No. 01421-001 GXV3275 is the successor to the popular GXV3175 model, which allows comfortable video calls in the IP network. Touchscreen control. 2N TELEKOMUNIKACE a.s., www.2n.cz 34/251...

  • Page 35: Electric Locks

    12 V / 230 mA DC Low consumption Enables to close or open the lock mechanically. Once opened, the lock remains so all the time. Once closed, the lock behaves as a standard electrical lock. 2N TELEKOMUNIKACE a.s., www.2n.cz 35/251...
  • Page 36 12 V / 170 mA The fail-safe lock is closed when electricity is switched on. When electricity is interrupted, the lock is opened. It contains a built-in contact to indicate whether the door is open or closed. 2N TELEKOMUNIKACE a.s., www.2n.cz 36/251...
  • Page 37 FAQ: Electric locks – Difference between locks in 2N IP/LTE intercom accessories 2N TELEKOMUNIKACE a.s., www.2n.cz 37/251...

  • Page 38: Power Supply

    Stabilised 12 V / 2 A power supply needs to be used where no PoE is available. Part No. 932928 12 V transformer For 230 V mains voltage. For 12 V AC external power supply of the lock. 2N TELEKOMUNIKACE a.s., www.2n.cz 38/251...
  • Page 39 External RFID card reader for connection to PC using a USB interface. Suitable for system administration and adding 13.56 MHz, 125 kHz cards and Android platform devices supporting NFC/HCE using 2N IP intercom ® web interface or the 2N Access Commander application.
  • Page 40 13.56 MHz ISO14443A (Mifare, DESFire) PicoPass (HID iClass) FeliCa ST SR(IX) ® Mobile Key HID SE (Seos, iClass SE, Mifare SE) Part No. 9134173 Mifare Classic 1k RFID card, 13.56 MHz Axis Part No. 01384-001 2N TELEKOMUNIKACE a.s., www.2n.cz 40/251...
  • Page 41 Part No. 9134174 Mifare Classic 1k RFID fob, 13.56 MHz Axis Part No. 01385-001 2N TELEKOMUNIKACE a.s., www.2n.cz 41/251...
  • Page 42 External RFID card reader for PC connection via a USB interface. Suitable for system management and addition ® of EM41xx cards via the Access Commander application. Part No. 9134165E EM4100 RFID card, 125 kHz Axis Part No. 01395-001 2N TELEKOMUNIKACE a.s., www.2n.cz 42/251...
  • Page 43 Part No. 9134166E EM4100 RFID fob, 125 kHz Axis Part No. 01396-001 Biometry Part No. 9137423E ® IP intercom - external fingerprint reader (USB interface) Axis Part No. 01401-001 2N TELEKOMUNIKACE a.s., www.2n.cz 43/251...

  • Page 44: External Switches

    Part No. 9137411E External IP relay – 4 outputs, PoE Axis Part No. 01398-001 Standalone IP device which can be controlled by 2N IP/LTE intercom HTTP commands, which can thus control devices over an unlimited distance. 2N TELEKOMUNIKACE a.s., www.2n.cz 44/251...

  • Page 45: Induction Loop

    It has to be used with Part No. 9155041 . A 40 cm long interconnecting cable is included. Dimensions: 233 (W) x 233 (H) mm FAQ: Induction loop – How to connect it with 2N IP/LTE intercom 2N TELEKOMUNIKACE a.s., www.2n.cz 45/251...

  • Page 46: Sensors And Switches

    Magnetic door contact Axis Part No. 01388-001 Door installation set that enables the door opening status to be ascertained. Used where the intercom is used for door protection, to detect open door or door violation. 2N TELEKOMUNIKACE a.s., www.2n.cz 46/251...

  • Page 47: Additional Modules

    Wiegand Isolator is designed for galvanic isolation of Axis Part No. 01387- two devices separately power supplied and interconnected via the ® Wiegand bus. The Wiegand Isolator protects the interconnected devices against communication errors and/or damage. 2N TELEKOMUNIKACE a.s., www.2n.cz 47/251...
  • Page 48 2N Part No. Enhanced Security 9137908 Axis Part No. 01379-001 2N Part No. Gold 9137909 Axis Part No. 01380-001 2N Part No. InformaCast 9137910 Axis Part No. 01381-001 2N Part No. 9137915 Axis Part No. 01382-001 2N TELEKOMUNIKACE a.s., www.2n.cz 48/251...
  • Page 49 2N Part No. Lift Module 9137916 Axis Part No. 02001-001 Refer to the Configuration Manual for 2N IP intercoms, Subs. 3.2 Function Licensing for details. For more accessories and specific advice please contact your local distributor of 2N products. 2N TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 50: Terms And Symbols

    Warning Always abide by this information to prevent damage to the device. Caution Important information for system functionality. Useful information for quick and efficient functionality. Note Routines or advice for efficient use of the device. 2N TELEKOMUNIKACE a.s., www.2n.cz 50/251...

  • Page 51: Description And Installation

    2. Description and Installation Here is what you can find in this section: 2.1 Before You Start 2.2 Mechanical Installation 2.3 Electric Installation 2.4 Extending Module Connection 2.5 Completion 2N TELEKOMUNIKACE a.s., www.2n.cz 51/251...

  • Page 52: Before You Start

    Product Completeness Check Before you start please check whether the contents of the package of your new ® LTE Verso complies with the following list. ® 1x 2N LTE Verso 1x brief manual 1x Certificate of ownership 2N TELEKOMUNIKACE a.s., www.2n.cz 52/251...

  • Page 53: Mechanical Installation

    , flush mounting boxes and frames 1x module: box Part No. 9155014 , frame Part No. 9155011 2x modules: box Part No. 9155015 , frame Part No. 9155012 3x modules: box Part No. 9155016 , frame Part No. 9155013 2N TELEKOMUNIKACE a.s., www.2n.cz 53/251...

  • Page 54: Flush Mounting - Plasterboard

    , flush mounting boxes and frames 1x module: box Part No. 9155014 , frame Part No. 9155011 2x modules: box Part No. 9155015 , frame Part No. 9155012 3x modules: box Part No. 9155016 , frame Part No. 9155013 2N TELEKOMUNIKACE a.s., www.2n.cz 54/251...

  • Page 55: Surface Mounting

    1x module: frame Part No. 9155021 2x modules: frame Part No. 9155022 3x modules: frame Part No. 9155023 For not flat surface use according to the module number backplate Part No 9155061 – 9155067 2N TELEKOMUNIKACE a.s., www.2n.cz 55/251...
  • Page 56 The recommended standard installation height is 1350 mm from the ground to the device camera level. The installation height may vary depending on the device use. 2N TELEKOMUNIKACE a.s., www.2n.cz 56/251...

  • Page 57: General Mounting Principles

    You are advised to buy the flush mounting boxes in advance and commission your building company to do the masonry for you. This approach helps you put your intercom exactly in the vertical position. 2N TELEKOMUNIKACE a.s., www.2n.cz 57/251...
  • Page 58 Refer to the pictorial instructions inside the flush mounting box package. Any intentional mechanical damage (drilling, main unit tampering, etc.) results in a loss of warranty. 2N TELEKOMUNIKACE a.s., www.2n.cz 58/251...
  • Page 59 Warning! It is forbidden to use silicone or any other sealing material on the marked and hatched places. 2N TELEKOMUNIKACE a.s., www.2n.cz 59/251...

  • Page 60: Module Installation

    2.2.2 Two Modules Box 2.2.3 More Two Module Boxes 2.2.4 Three Modules Boxes 2.2.5 More Than Three Modules Boxes 2.2.6 Tamper and I/O Modules 2.2.7 Module dimension Instalace příslušenství pro montáž 2.2.8 Instalace montážní desky 2N TELEKOMUNIKACE a.s., www.2n.cz 60/251...

  • Page 61: One Module Box

    2.2.1 One Module Box Caution The one-module box is designed for stand-alone installations of extending modules such as departure readers. A two-module box is required for the main unit installation. Flush mounting box mounting – classic bricks 2N TELEKOMUNIKACE a.s., www.2n.cz 61/251...
  • Page 62 2N TELEKOMUNIKACE a.s., www.2n.cz 62/251...
  • Page 63 Make sure that the flush mounting box is slightly above the wall surface not aligning with the wall. A wrong installation may lead to water penetration and subsequent damage of the device. Use the side protrusions to achieve the proper flush mounting. 2N TELEKOMUNIKACE a.s., www.2n.cz 63/251...
  • Page 64 Caution Break off the side protrusions when the walling material has hardened. 2N TELEKOMUNIKACE a.s., www.2n.cz 64/251...
  • Page 65 2N TELEKOMUNIKACE a.s., www.2n.cz 65/251...

  • Page 66: Flush Mounting Box Mounting - Plasterboard

    Flush mounting box mounting – plasterboard 2N TELEKOMUNIKACE a.s., www.2n.cz 66/251...
  • Page 67 2N TELEKOMUNIKACE a.s., www.2n.cz 67/251...
  • Page 68 2N TELEKOMUNIKACE a.s., www.2n.cz 68/251...

  • Page 69: Flush Module Mounting

    Flush module mounting 2N TELEKOMUNIKACE a.s., www.2n.cz 69/251...
  • Page 70 2N TELEKOMUNIKACE a.s., www.2n.cz 70/251...
  • Page 71 2N TELEKOMUNIKACE a.s., www.2n.cz 71/251...
  • Page 72 2N TELEKOMUNIKACE a.s., www.2n.cz 72/251...
  • Page 73 2N TELEKOMUNIKACE a.s., www.2n.cz 73/251...

  • Page 74: Surface Module Mounting

    Surface module mounting 2N TELEKOMUNIKACE a.s., www.2n.cz 74/251...
  • Page 75 2N TELEKOMUNIKACE a.s., www.2n.cz 75/251...
  • Page 76 2N TELEKOMUNIKACE a.s., www.2n.cz 76/251...
  • Page 77 2N TELEKOMUNIKACE a.s., www.2n.cz 77/251...
  • Page 78 2N TELEKOMUNIKACE a.s., www.2n.cz 78/251...

  • Page 79: Two Modules Boxes

    2.2.2 Two Modules Boxes Flush mounting box mounting – classic bricks 2N TELEKOMUNIKACE a.s., www.2n.cz 79/251...
  • Page 80 2N TELEKOMUNIKACE a.s., www.2n.cz 80/251...
  • Page 81 Make sure that the flush mounting box is slightly above the wall surface not aligning with the wall. A wrong installation may lead to water penetration and subsequent damage of the device. Use the side protrusions to achieve the proper flush mounting. 2N TELEKOMUNIKACE a.s., www.2n.cz 81/251...
  • Page 82 Caution Break off the side protrusions when the walling material has hardened. 2N TELEKOMUNIKACE a.s., www.2n.cz 82/251...
  • Page 83 2N TELEKOMUNIKACE a.s., www.2n.cz 83/251...

  • Page 84: Flush Mounting Box Mounting - Plasterboard

    Flush mounting box mounting – plasterboard 2N TELEKOMUNIKACE a.s., www.2n.cz 84/251...
  • Page 85 2N TELEKOMUNIKACE a.s., www.2n.cz 85/251...
  • Page 86 2N TELEKOMUNIKACE a.s., www.2n.cz 86/251...

  • Page 87: Flush Module Mounting

    Flush module mounting 2N TELEKOMUNIKACE a.s., www.2n.cz 87/251...
  • Page 88 2N TELEKOMUNIKACE a.s., www.2n.cz 88/251...
  • Page 89 2N TELEKOMUNIKACE a.s., www.2n.cz 89/251...
  • Page 90 2N TELEKOMUNIKACE a.s., www.2n.cz 90/251...
  • Page 91 2N TELEKOMUNIKACE a.s., www.2n.cz 91/251...

  • Page 92: Surface Module Mounting

    Surface module mounting 2N TELEKOMUNIKACE a.s., www.2n.cz 92/251...
  • Page 93 2N TELEKOMUNIKACE a.s., www.2n.cz 93/251...
  • Page 94 2N TELEKOMUNIKACE a.s., www.2n.cz 94/251...
  • Page 95 2N TELEKOMUNIKACE a.s., www.2n.cz 95/251...
  • Page 96 2N TELEKOMUNIKACE a.s., www.2n.cz 96/251...

  • Page 97: More Two Modules Boxes

    2.2.3 More Two Modules Boxes Flush mounting box mounting – classics bricks 2N TELEKOMUNIKACE a.s., www.2n.cz 97/251...
  • Page 98 2N TELEKOMUNIKACE a.s., www.2n.cz 98/251...
  • Page 99 2N TELEKOMUNIKACE a.s., www.2n.cz 99/251...
  • Page 100 Make sure that the flush mounting box is slightly above the wall surface not aligning with the wall. A wrong installation may lead to water penetration and subsequent damage of the device. Use the side protrusions to achieve the proper flush mounting. 2N TELEKOMUNIKACE a.s., www.2n.cz 100/251...
  • Page 101 Caution Break off the side protrusions when the walling material has hardened. 2N TELEKOMUNIKACE a.s., www.2n.cz 101/251...
  • Page 102 2N TELEKOMUNIKACE a.s., www.2n.cz 102/251...

  • Page 103: Flush Mounting Box Mounting - Plasterboard

    Flush mounting box mounting – plasterboard 2N TELEKOMUNIKACE a.s., www.2n.cz 103/251...
  • Page 104 2N TELEKOMUNIKACE a.s., www.2n.cz 104/251...
  • Page 105 2N TELEKOMUNIKACE a.s., www.2n.cz 105/251...
  • Page 106 2N TELEKOMUNIKACE a.s., www.2n.cz 106/251...

  • Page 107: Flush Module Mounting

    Flush module mounting 2N TELEKOMUNIKACE a.s., www.2n.cz 107/251...
  • Page 108 2N TELEKOMUNIKACE a.s., www.2n.cz 108/251...
  • Page 109 2N TELEKOMUNIKACE a.s., www.2n.cz 109/251...
  • Page 110 2N TELEKOMUNIKACE a.s., www.2n.cz 110/251...
  • Page 111 2N TELEKOMUNIKACE a.s., www.2n.cz 111/251...
  • Page 112 2N TELEKOMUNIKACE a.s., www.2n.cz 112/251...
  • Page 113 2N TELEKOMUNIKACE a.s., www.2n.cz 113/251...

  • Page 114: Surface Module Mounting

    Surface module mounting 2N TELEKOMUNIKACE a.s., www.2n.cz 114/251...
  • Page 115 2N TELEKOMUNIKACE a.s., www.2n.cz 115/251...
  • Page 116 2N TELEKOMUNIKACE a.s., www.2n.cz 116/251...
  • Page 117 2N TELEKOMUNIKACE a.s., www.2n.cz 117/251...
  • Page 118 2N TELEKOMUNIKACE a.s., www.2n.cz 118/251...
  • Page 119 2N TELEKOMUNIKACE a.s., www.2n.cz 119/251...

  • Page 120: Three Modules Box

    2.2.4 Three Modules Box Flush mounting box mounting – classics bricks 2N TELEKOMUNIKACE a.s., www.2n.cz 120/251...
  • Page 121 2N TELEKOMUNIKACE a.s., www.2n.cz 121/251...
  • Page 122 Make sure that the flush mounting box is slightly above the wall surface not aligning with the wall. A wrong installation may lead to water penetration and subsequent damage of the device. Use the side protrusions to achieve the proper flush mounting. 2N TELEKOMUNIKACE a.s., www.2n.cz 122/251...
  • Page 123 Caution Break off the side protrusions when the walling material has hardened. 2N TELEKOMUNIKACE a.s., www.2n.cz 123/251...
  • Page 124 2N TELEKOMUNIKACE a.s., www.2n.cz 124/251...

  • Page 125: Flush Mounting Box Mounting - Plasterboard

    Flush mounting box mounting – plasterboard 2N TELEKOMUNIKACE a.s., www.2n.cz 125/251...
  • Page 126 2N TELEKOMUNIKACE a.s., www.2n.cz 126/251...
  • Page 127 2N TELEKOMUNIKACE a.s., www.2n.cz 127/251...

  • Page 128: Flush Module Mounting

    Flush module mounting 2N TELEKOMUNIKACE a.s., www.2n.cz 128/251...
  • Page 129 2N TELEKOMUNIKACE a.s., www.2n.cz 129/251...
  • Page 130 2N TELEKOMUNIKACE a.s., www.2n.cz 130/251...
  • Page 131 2N TELEKOMUNIKACE a.s., www.2n.cz 131/251...
  • Page 132 2N TELEKOMUNIKACE a.s., www.2n.cz 132/251...
  • Page 133 2N TELEKOMUNIKACE a.s., www.2n.cz 133/251...
  • Page 134 2N TELEKOMUNIKACE a.s., www.2n.cz 134/251...

  • Page 135: Surface Module Mounting

    Surface module mounting 2N TELEKOMUNIKACE a.s., www.2n.cz 135/251...
  • Page 136 2N TELEKOMUNIKACE a.s., www.2n.cz 136/251...
  • Page 137 2N TELEKOMUNIKACE a.s., www.2n.cz 137/251...
  • Page 138 2N TELEKOMUNIKACE a.s., www.2n.cz 138/251...
  • Page 139 2N TELEKOMUNIKACE a.s., www.2n.cz 139/251...
  • Page 140 2N TELEKOMUNIKACE a.s., www.2n.cz 140/251...
  • Page 141 2N TELEKOMUNIKACE a.s., www.2n.cz 141/251...

  • Page 142: More Than Three Modules Boxes

    2.2.5 More Than Three Modules Boxes Flush mounting box mounting – classics bricks 2N TELEKOMUNIKACE a.s., www.2n.cz 142/251...
  • Page 143 2N TELEKOMUNIKACE a.s., www.2n.cz 143/251...
  • Page 144 2N TELEKOMUNIKACE a.s., www.2n.cz 144/251...
  • Page 145 Make sure that the flush mounting box is slightly above the wall surface not aligning with the wall. A wrong installation may lead to water penetration and subsequent damage of the device. Use the side protrusions to achieve the proper flush mounting. 2N TELEKOMUNIKACE a.s., www.2n.cz 145/251...
  • Page 146 2N TELEKOMUNIKACE a.s., www.2n.cz 146/251...
  • Page 147 Flush mounting box mounting – plasterboard 2N TELEKOMUNIKACE a.s., www.2n.cz 147/251...
  • Page 148 2N TELEKOMUNIKACE a.s., www.2n.cz 148/251...
  • Page 149 Caution Break off the side protrusions when the walling material has hardened. 2N TELEKOMUNIKACE a.s., www.2n.cz 149/251...
  • Page 150 2N TELEKOMUNIKACE a.s., www.2n.cz 150/251...
  • Page 151 2N TELEKOMUNIKACE a.s., www.2n.cz 151/251...
  • Page 152 Flush module mounting 2N TELEKOMUNIKACE a.s., www.2n.cz 152/251...
  • Page 153 2N TELEKOMUNIKACE a.s., www.2n.cz 153/251...
  • Page 154 2N TELEKOMUNIKACE a.s., www.2n.cz 154/251...
  • Page 155 2N TELEKOMUNIKACE a.s., www.2n.cz 155/251...
  • Page 156 2N TELEKOMUNIKACE a.s., www.2n.cz 156/251...
  • Page 157 2N TELEKOMUNIKACE a.s., www.2n.cz 157/251...
  • Page 158 2N TELEKOMUNIKACE a.s., www.2n.cz 158/251...
  • Page 159 2N TELEKOMUNIKACE a.s., www.2n.cz 159/251...
  • Page 160 Surface module mounting 2N TELEKOMUNIKACE a.s., www.2n.cz 160/251...
  • Page 161 2N TELEKOMUNIKACE a.s., www.2n.cz 161/251...
  • Page 162 2N TELEKOMUNIKACE a.s., www.2n.cz 162/251...
  • Page 163 2N TELEKOMUNIKACE a.s., www.2n.cz 163/251...
  • Page 164 2N TELEKOMUNIKACE a.s., www.2n.cz 164/251...
  • Page 165 2N TELEKOMUNIKACE a.s., www.2n.cz 165/251...
  • Page 166 2N TELEKOMUNIKACE a.s., www.2n.cz 166/251...

  • Page 167: Tamper And I/O Module

    2.2.6 Tamper and I/O Module 2N TELEKOMUNIKACE a.s., www.2n.cz 167/251...
  • Page 168 2N TELEKOMUNIKACE a.s., www.2n.cz 168/251...

  • Page 169: Module Dimensions

    9155023 – Surface mounting frame, 3 modules Backplates 9155061 – 1 module 9155062 – 2 modules 9155063 – 3 modules 9155064 – 2x2 modules 9155065 – 3x2 modules 9155065 – 2x3 modules 9155067 – 3x3 modules 2N TELEKOMUNIKACE a.s., www.2n.cz 169/251...

  • Page 170: Example Of Mounting Plate Installation

    2.2.8 Example of Mounting Plate Installation Wall installation 2N TELEKOMUNIKACE a.s., www.2n.cz 170/251...
  • Page 171 2N TELEKOMUNIKACE a.s., www.2n.cz 171/251...
  • Page 172 2N TELEKOMUNIKACE a.s., www.2n.cz 172/251...
  • Page 173 Glass surface installation 2N TELEKOMUNIKACE a.s., www.2n.cz 173/251...
  • Page 174 2N TELEKOMUNIKACE a.s., www.2n.cz 174/251...
  • Page 175 2N TELEKOMUNIKACE a.s., www.2n.cz 175/251...

  • Page 176: Electric Installation

    2.3 Electric Installation ® This subsection describes how to install the modules, how to connect the 2N Verso main unit to the power supply and how to connect other elements. Caution The device must be part of the electrical system of the building.

  • Page 177: Main Unit

    HW version 3 and lower Insert a MicroSIM card in the SIM slot. Remove the card in the same way. Power Supply Connection ® LTE Verso is powered from an external 12 V / 2 A DC source. 2N TELEKOMUNIKACE a.s., www.2n.cz 177/251...

  • Page 178: External Power Supply

    A (Part No. 91341481E) to make your system work reliably. This power supply provides ® LTE Verso with 24 W for feeding of the main unit and connected modules. Main Unit Connector Configuration Caution We recommend you to use a grounding cable of the cross-section of 1.5 mm2. 2N TELEKOMUNIKACE a.s., www.2n.cz 178/251...
  • Page 179 Once the network is connected, the LED stops shining. LINE OUT LINE OUT connector (1 V ). Connector type JST SHR-02V-S. MIC connector for microphone connection ® IP/LTE Verso bus connector 2N TELEKOMUNIKACE a.s., www.2n.cz 179/251...
  • Page 180 Output wiring diagram for Relay terminals Wiring diagram for the controlled device’s electric circuit closing Wiring diagram for the controlled device’s electric circuit opening 2N TELEKOMUNIKACE a.s., www.2n.cz 180/251...

  • Page 181: Reset Button

    You can also use the diagnostic SMS commands described in 3.1 Configuration troubleshooting. Reset Button Located among the main unit connectors, the Reset button helps you reset the factory default values and restart the device. Factory Reset 2N TELEKOMUNIKACE a.s., www.2n.cz 181/251...
  • Page 182 Caution In case of resetting the factory default settings on a device with a ® version of firmware 2.18 or higher it is necessary to reprogram the 2N Security Relay using the instructions from section 2N TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 183: Device Restart

    (lights, e.g.). More modules marked by * can be used. Security The 12V output is used for lock connection. If, however, the unit (2N IP Intercom, 2N Access Unit) is installed where unauthorized tampering ®...
  • Page 184 For this way of protection we recommend a diode 1 A / 1000 V (e.g., 1N4007, 1N5407, 1N5408) connected antiparallel to the device. 2N TELEKOMUNIKACE a.s., www.2n.cz 184/251...

  • Page 185: Overvoltage Protection

    2N device wiring may be exposed to atmospheric effects resulting in overvoltage that may subsequently damage any devices installed outside the building, on its outer wall or roof. Overvoltage may damage devices connected to these wires and installed inside the building as well.
  • Page 186 OVP = overvoltage protection 2N TELEKOMUNIKACE a.s., www.2n.cz 186/251...

  • Page 187: Extending Module Connection

    Touch keypad & RFID reader 125kHz, 13.56MHz, NFC Touch keypad & RFID reader 125kHz, secured 13.56MHz, NFC Bluetooth Reader Touch Display Induction Loop Fingerprint Reader I/O Module 5-Button Wiegand Module Tamper Switch Blind Panel Security Relay 2N TELEKOMUNIKACE a.s., www.2n.cz 187/251...

  • Page 188: Module Bus Interconnection

    IP/LTE Verso installation. The cable may be used only once on the bus. In extensive installations, the total bus cable length may not exceed 7 m. The modules can be combined in each base as follows: 2N TELEKOMUNIKACE a.s., www.2n.cz 188/251...
  • Page 189   125kHz, 13.56MHz, NFC Touch keypad & RFID reader     125kHz, secured 13.56MHz, NFC Bluetooth reader     Touch display     Induction loop     Fingerprint reader     I/O module     2N TELEKOMUNIKACE a.s., www.2n.cz 189/251...

  • Page 190: Module Power Supply

    The count of modules on the bus is limited by the available power supply output. The maximum count of the modules on the bus is 30. Main unit Consumption [W] (571v3) (Maximum value) At relax 2.376 Infrared illumination 3.06 LED – call 0.072 2N TELEKOMUNIKACE a.s., www.2n.cz 190/251...
  • Page 191 Main unit with camera 2.36 11.57   Main unit without camera 2.12 11.57   Infopanel 0.17 0.35   Keypad 0.19 1.16   RFID card reader 125 kHz 0.52 1.31   RFID card reader 13.56 MHz 0.44 0.82   2N TELEKOMUNIKACE a.s., www.2n.cz 191/251...
  • Page 192 Induction loop 0.18 0.84   Fingerprint reader 0.73 1.54   0.31 0.65 Closed relay 0.13 5-button 0.19 1.16   Wiegand 0.46 0.46   Tamper switch 0.31 0.65   Blind panel   Specimen configuration consumption computation 2N TELEKOMUNIKACE a.s., www.2n.cz 192/251...
  • Page 193 LED intensity. Some modules need a specific power output for their specific activities: the I/O module, e.g., requires 0.13 W for relay closing (not calculated for minimum consumption). 2N TELEKOMUNIKACE a.s., www.2n.cz 193/251...

  • Page 194: Infopanel

    If this module is the last one on the bus, one of the connectors remains unconnected. The module package includes a 220 mm long interconnecting cable. RFID Card Reader Module 125 kHz 2N TELEKOMUNIKACE a.s., www.2n.cz 194/251...

  • Page 195: Rfid Card Reader 13.56 Mhz Nfc Support

    The following RFID cards can be read (only the card serial number is read): ISO/IEC 14443A Mifare Classic 1k & 4k, DESFire EV1, Mini, Plus S&X, Ultralight, Ultralight C ISO/IEC 14443B CEPAS, HID iCLASS JIS X 6319 Felica ISO/IEC 18092 SmartPhone with NFC/HCE support, since Android version 4.3 2N TELEKOMUNIKACE a.s., www.2n.cz 195/251...

  • Page 196: Secured Rfid Card Reader

    The following RFID cards can be read (optionally the card serial number or PAC ID is read): ISO14443A (Mifare, DESFire) PicoPass (HID iClass) FeliCa ST SR(IX) ® Mobile Key HID SE (Seos, iClass SE, Mifare SE) 2N TELEKOMUNIKACE a.s., www.2n.cz 196/251...

  • Page 197: Bluetooth & Rfid Reader 125Khz, 13.56Mhz, Nfc

    Mobile Key tablet/card access control, making user calls and/or other functions. ® NFC – a licensed function, for 2N Mobile Key for Android only. The module contains two bus connectors. These two connectors are fully interchangeable and can be used either as inputs from the basic unit or outputs to other modules.

  • Page 198: Bluetooth & Rfid Reader 125Khz, Secured 13.56Mhz, Nfc

    Mobile Key tablet/card access control, making user calls and/or other functions. ® NFC – a licensed function, for 2N Mobile Key for Android only. The module contains two bus connectors. These two connectors are fully interchangeable and can be used either as inputs from the basic unit or outputs to other modules.
  • Page 199 The keypad surface is very sensitive yet weatherproof at the same time. ® NFC – a licensed function, for 2N Mobile Key for Android only. The module contains two bus connectors. These two connectors are fully interchangeable and can be used either as inputs from the basic unit or outputs to other modules.

  • Page 200: Induction Loop

    The keypad surface is very sensitive yet weatherproof at the same time. ® NFC – a licensed function, for 2N Mobile Key for Android only. The module contains two bus connectors.

  • Page 201: Fingerprint Reader

    The module package includes a 220 mm long interconnecting cable. Important module properties: FBI PIV and Mobile ID certification – FAP20 Durable glass touch surface Rejects spoof fingerprints -20 to 55 ºC operating temperature range, 0–90% relative humidity, noncondensing 2N TELEKOMUNIKACE a.s., www.2n.cz 201/251...

  • Page 202: I/O

    IDs from the following smart phones can be read: Android 6 and higher iOS 12 and higher The I/O (Part No. 9155034) is one of the 2N IP/LTE Verso intercom elements and is ® used for extending the number of inputs and outputs.
  • Page 203 IN2 terminals for input in passive/active mode (−30 V to +30 V DC) OFF = open OR U > 1.5 V ON = closed contact OR U < 1.5 V TAMPER Tamper switch (9155038) input 2N TELEKOMUNIKACE a.s., www.2n.cz 203/251...

  • Page 204: 5-Button

    The module package includes a 220 mm long interconnecting cable. Technical specification: Resolution: 320 px x 214 px H x V Resolution slideshow: 214 px x 214 px Contrast ratio: 400 Brightness: 350 cd/m2 Weight: 280 g 2N TELEKOMUNIKACE a.s., www.2n.cz 204/251...

  • Page 205: Wiegand

    The input LED IN is addressed as follows: <module_name>.<input1> , e.g. module2.input1. The input Tamper is addressed as follows: <module_name>.<tamper> , e.g. module2.tamper. The output LED OUT (negated) is addressed as follows: <module_name>. <output1> , e.g. module2.output1. 2N TELEKOMUNIKACE a.s., www.2n.cz 205/251...
  • Page 206 Isolated input for open LED IN, input activated by GND2 (negated) LED IN Isolated input for open LED IN, input activated by +U   WIEGAND OUT active supply LED indicator   TAMPER Tamper switch (Part No. 9155038 ) input 2N TELEKOMUNIKACE a.s., www.2n.cz 206/251...
  • Page 207 Current 5 mA Input resistance 680 Ohm Pulse length 50 μs Delay between pulses approx. 2 ms Recommended Wiring Diagram for Reader with Bus Driver Recommended Wiring Diagram for Reader with Open Collector (OC) Output 2N TELEKOMUNIKACE a.s., www.2n.cz 207/251...

  • Page 208: Tamper Switch

    , can be used for alarm signalling via the Automation ® interface in the IP/LTE Verso configuration. This module is not connected to the bus. Caution Remember to purchase an I/O module, Part No. 9155034, together with the tamper switch. Tamper Switch Mounting 2N TELEKOMUNIKACE a.s., www.2n.cz 208/251...

  • Page 209: Blind Panel

    (outside the ® secured area) and the electric lock (inside the secured area). The 2N Security Relay includes a relay that can only be activated if the valid opening code is received from the intercom.

  • Page 210: Installation

    IP / intercom’ terminals. Press the Departure button to activate the output for 5 seconds. Status signalling: Green LED Red LED Status blinking Operational mode Activated output blinking blinking Programming mode – waiting for initialisation blinking Error – wrong code received 2N TELEKOMUNIKACE a.s., www.2n.cz 210/251...
  • Page 211 2.18 or higher it is necessary to reprogram the ® Security Relay using the instructions above. ® FAQ: 2N Security Relay – what is it and how to use it with 2N IP intercom? 2N TELEKOMUNIKACE a.s., www.2n.cz 211/251...
  • Page 212 Connection: 2N TELEKOMUNIKACE a.s., www.2n.cz 212/251...

  • Page 213: Completion

    1 button: 52.0 (W) x 15.2 (H) mm (dimensional tolerance: +0; -0.5 mm) 5 buttons: 57.5 (W) x 89.0 (H) mm (dimensional tolerance: +0; -0.5 mm) Infopanel nametag dimensions: 69.2 (W) x 86.7 (H) mm (dimensional tolerance: +0; -0.5 mm). 2N TELEKOMUNIKACE a.s., www.2n.cz 213/251...
  • Page 214 Nametag inserting/replacing: Remove the frame. Lift up the button door. The 5-button module buttons have just one door. Remove the used nametag and insert a new one. Close the button door. Replace the frame. 2N TELEKOMUNIKACE a.s., www.2n.cz 214/251...

  • Page 215: Frame Replacement

    Make sure that the bases are levelled properly to avoid water leakage and electronic damage. The examples in the figures below show incorrectly assembled bases. This happens, in particular, where the screws are tightened first. 2N TELEKOMUNIKACE a.s., www.2n.cz 215/251...
  • Page 216 2N TELEKOMUNIKACE a.s., www.2n.cz 216/251...

  • Page 217: Function And Use

    3. Function and Use ® This section describes the basic and extending functions of the the 2N LTE Verso product. Here is what you can find in this section: 3.1 Configuration 3.2 Intercom Control as Viewed by External User 3.3 Touch Display Intercom Control As Viewed by External User 3.4 Intercom Control as Viewed by Internal User...

  • Page 218: Configuration

    – connected provider network – current data network type (NONE, 2G, 3G, 4G) signal – signal strength ipaddr – device IP address Example of SMS: state pwd=2n GET command – parameter reading SMS format: get pwd=<password> <parameter> Available parameters: name –...
  • Page 219 – SIM card ICCID fwver – current firmware version The device sends the following response: "ok <parameter>=<value>" or "error" including error description. Example of SMS: get pwd=2n fwver SET command – parameter setting SMS format: set pwd=<password> <parameter>=<value> Available parameters: name –...
  • Page 220 ® intercom to your account. The Mobile Video service helps you set basic ® parameters and make calls to mobile phones or 2N communicators. The 2N Remote Configuration service makes the intercom web configuration interface accessible to you. 2N TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 221: Intercom Control As Viewed By External User

    You can also press the button anytime to hang up if enabled so in the Button Function During Call parameter; refer to the Intercom Configuration / Hardware / Keypad subsection of Configuration Manual. 2N TELEKOMUNIKACE a.s., www.2n.cz 221/251...

  • Page 222: Door Opening (Switch Activation) By Code

    Door Opening (Switch Activation) by Biometric Reader A biometric reader helps authenticate human fingerprints for control and management of access and third party devices. Refer to Directory / Users for how to load a fingerprint into a user profile. 2N TELEKOMUNIKACE a.s., www.2n.cz 222/251...

  • Page 223: Profile Activation/Deactivation

    A valid code is signalled by the sound according to the code type. An invalid code or interruption longer than as defined in Timeout for Entering Numbers is signalled by the sound. 2N TELEKOMUNIKACE a.s., www.2n.cz 223/251...

  • Page 224: Touch Display Intercom Control As Viewed By External User

    In the Presentation mode, one or more images defined by the available display configuration are displayed. The Presentation mode is started automatically when the presentation delay timeout set in the 2N® LTE Verso web interface expires. The mode ® can be terminated by a touch of the...
  • Page 225 Touch the found contacts and browse through the data. The Contacts menu also includes a Help submenu in the right-hand bottom corner of the display, which provides tips and basic display controls for the Contacts mode. 2N TELEKOMUNIKACE a.s., www.2n.cz 225/251...
  • Page 226 You can also enable Scramble keypad in the Keypad mode via the web interface to scramble the numerical keypad buttons before every new display in order to prevent third persons from seeing the code to be entered. 2N TELEKOMUNIKACE a.s., www.2n.cz 226/251...

  • Page 227: Intercom Control As Viewed By Internal User

    Configuration Manual). Press # on your phone anytime to extend the call time. The automatic call termination is signalled with a short beep 10 s before the call end. Calling to 2N ® LTE Verso ® Verso allows you to answer incoming calls. Set the required parameters in the Incoming calls group;...
  • Page 228 A valid code is signalled by the sound according to the code type. An invalid code or interruption longer than as defined in Timeout for Entering Numbers is signalled by the sound. 2N TELEKOMUNIKACE a.s., www.2n.cz 228/251...

  • Page 229: Maintenance

    Covid disinfection) and maintain the hygienic conditions of critical surfaces and touch points we recommend that you use the Zoono – Microbe Shield Surface Sanitiser Spray. Warning Prevent water from getting inside the intercom. Do not use alcohol-based cleaners. Avoid peroxide-based cleaners. 2N TELEKOMUNIKACE a.s., www.2n.cz 229/251...

  • Page 230: Downloads

    3.6 Downloads Templates Nameplates Infopanel label Software 2N® USB Driver 1.0.6 2N® IP Eye 1.1.4 2N® Network Scanner 3.0.4 2N TELEKOMUNIKACE a.s., www.2n.cz 230/251...

  • Page 231: Technical Parameters

    JPEG resolution: up to 1280 (H) x 960 (V) Video resolution: 640 (H) x 480 (V) Frame rate: up to 30 snapshots/s Sensor sensitivity: 5.6 V/lux-sec (550 nm) View angle: 128 ° (H), 95 ° (V), 134 ° (D) 2N TELEKOMUNIKACE a.s., www.2n.cz 231/251...
  • Page 232 Connector: MMCX Gain: 4.1 dB Power handling : 25 W Operating temperature: -40 °C to +85°C Dimensions: Max height: 6 mm Max width: 14 mm Max length : 122 mm Mounting: Adhesive Mount Cable length: 2N TELEKOMUNIKACE a.s., www.2n.cz 232/251...
  • Page 233 Low quality: QVGA (320 x 240), 10 fps, quality 70: 435 kbps with headers Medium quality: VGA (640 x 480), 15 fps, quality 85: 506 kbps High quality: SXGA (1280 x 960), 15 fps, quality 95: 8 Mbps 2N TELEKOMUNIKACE a.s., www.2n.cz 233/251...
  • Page 234 Supported cards, 13.56 MHz, Part No. 9155033 (only card serial number is read) ISO/IEC 14443A Mifare Classic 1k & 4k, DESFire EV1, Mini, Plus S&X, Ultralight, Ultralight C ISO/IEC 14443B CEPAS, HID iCLASS JIS X 6319 Felica 2N TELEKOMUNIKACE a.s., www.2n.cz 234/251...
  • Page 235 Operational temperature range: -40°C ~ +60°C Storage temperature range: -40°C ~ +70°C Dimensions: 97x105x30mm ® ® ® Compatible with 2N IP Verso, 2N LTE Verso and 2N Access Unit Mobile app. support: Android 6 and higher, iOS 12.0 and higher 2N TELEKOMUNIKACE a.s., www.2n.cz 235/251...
  • Page 236 Surface treatment – Cataphoretic coating Black 30 µm, RAL 9004 – Signalschwarz (colour is not guaranted – it is cataphoretic) Working temperature: -40 °C – 60 °C Working relative humidity: 10 % – 95 % (non-condensing) Storing temperature: -40 °C – 70 °C 2N TELEKOMUNIKACE a.s., www.2n.cz 236/251...
  • Page 237 Module internal cutout: 72 (W) x 89.3 (H) mm / 2.83 (W) x 3.51 (H) inches Weight: max net weight: 2 kg / max gross weight: 2.5 kg – based on configuration Covering level: IP54 Resistance level: IK08 2N TELEKOMUNIKACE a.s., www.2n.cz 237/251...

  • Page 238: General Drawings

    4.1 General drawings Surface mounting 2 modules 3 modules 2N TELEKOMUNIKACE a.s., www.2n.cz 238/251...
  • Page 239 2 x 2 modules 3 x 3 modules 2N TELEKOMUNIKACE a.s., www.2n.cz 239/251...

  • Page 240: Flush Mounting

    1 module Flush mounting 2 modules 2N TELEKOMUNIKACE a.s., www.2n.cz 240/251...
  • Page 241 3 modules 2 x 2 modules 2N TELEKOMUNIKACE a.s., www.2n.cz 241/251...
  • Page 242 3 x 3 modules 2N TELEKOMUNIKACE a.s., www.2n.cz 242/251...
  • Page 243 1 module 2N TELEKOMUNIKACE a.s., www.2n.cz 243/251...

  • Page 244: Supplementary Information

    5. Supplementary Information Here is what you can find in this section: 5.1 Troubleshooting 5.2 Directives, Laws and Regulations 5.3 General Instructions and Cautions 2N TELEKOMUNIKACE a.s., www.2n.cz 244/251...

  • Page 245: Troubleshooting

    5.1 Troubleshooting For the most frequently asked questions refer to faq.2n.cz 2N TELEKOMUNIKACE a.s., www.2n.cz 245/251...

  • Page 246: Directives, Laws And Regulations

    DDA compliance: 2N TELEKOMUNIKACE intercoms comply with the Disability Discrimination Act 2005 (DDA) under the following conditions: The intercoms are mounted so that their lower edge is between 100 and 120 centimeters above the floor.
  • Page 247 The intercoms use a keyboard that has a mechanical protrusion on number 5. The intercoms use electromagnetic loop as a hearing aid. 2N TELEKOMUNIKACE a.s., www.2n.cz 247/251...

  • Page 248: Intellectual Property Rights

    2N TELEKOMUNIKACE a. s. is not liable neither for any limitation of such a product’s functionality, nor for any damage, loss or injury relating to such a potential limitation of functionality.

  • Page 249: General Instructions And Cautions

    The consumer shall, at its own expense, obtain software protection of the product. The manufacturer shall not be held liable and responsible for any damage incurred as a result of the use of deficient or substandard security software. 2N TELEKOMUNIKACE a.s., www.2n.cz 249/251...

  • Page 250: Electric Waste And Used Battery Pack Handling

    Make sure that the devices to be disposed of are complete. Do not throw battery packs into fire. Battery packs may not be taken into parts or short-circuited either. 2N TELEKOMUNIKACE a.s., www.2n.cz 250/251...
  • Page 251 2N TELEKOMUNIKACE a.s. Modřanská 621, 143 01 Prague 4, Czech Republic Phone: +420 261 301 500, Fax: +420 261 301 599 E-mail: sales@2n.cz Web: www.2n.cz v1.5 2N TELEKOMUNIKACE a.s., www.2n.cz 251/251...

Table of Contents
