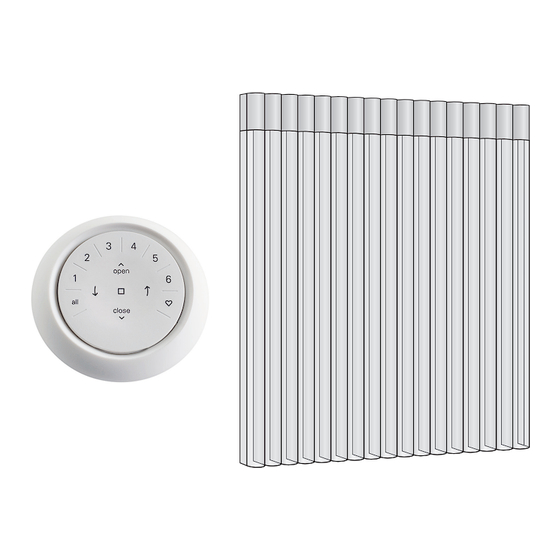

Summary of Contents for Smith & Noble Vertical Shadings

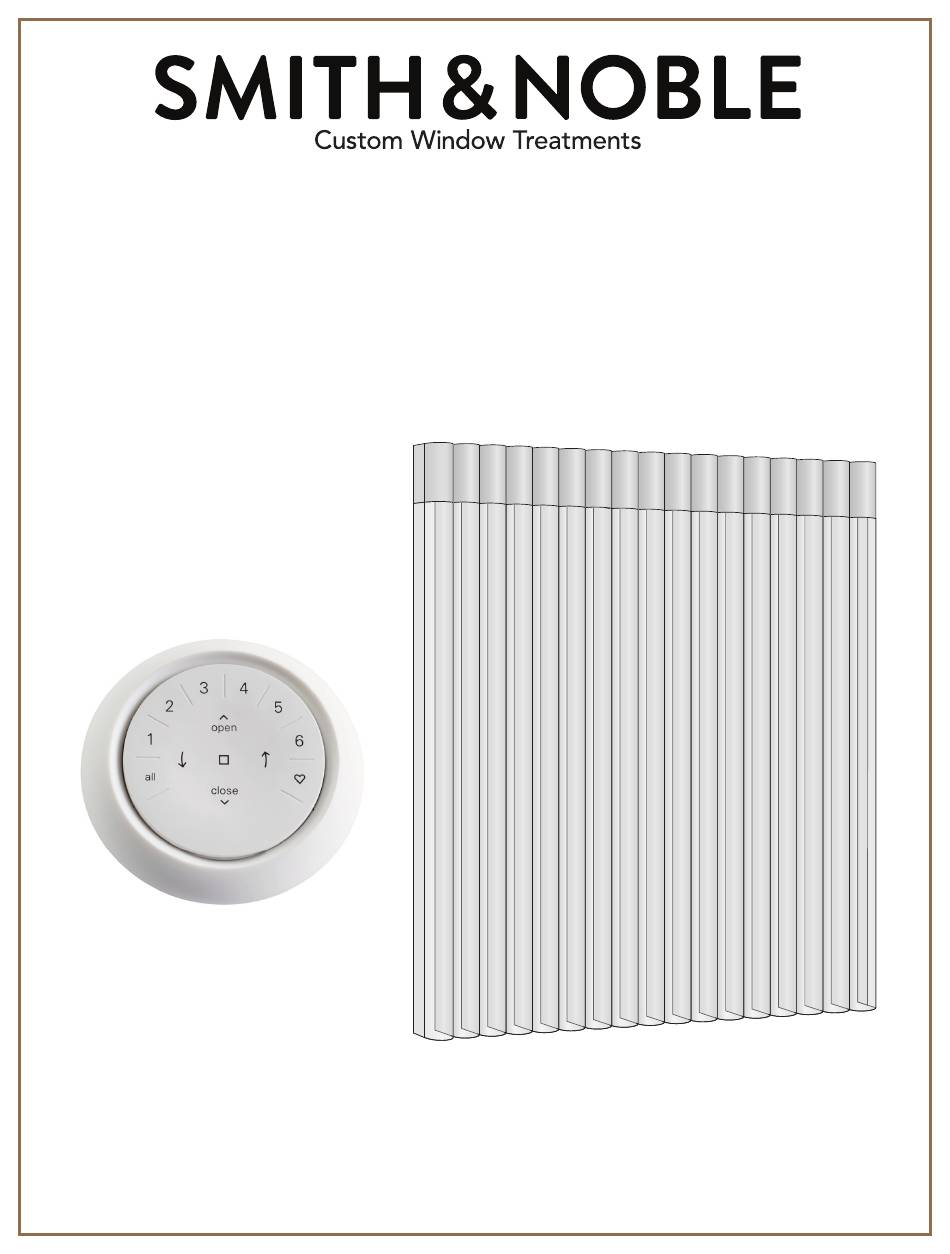

- Page 1 Vertical Shadings Collection Smart Shades Installation Instructions Rev. B 04/2024...
-
Page 2: Table Of Contents
GETTING STARTED CONTENTS Smith & Noble offers only the 18V DC Power Supply on Smart Shades. GETTING STARTED ....................1 Product View ........................1 Tools and Fasteners Needed ....................2 Unpack the Components ....................2 INSTALLATION ......................3 Mount the Installation Brackets — Inside/Ceiling Mount ..........6 Mount the Installation Brackets —... -
Page 3: Getting Started
GETTING STARTED Product View Left Stack Shown Outside Wall Adapter with Shim Headrail Universal Spacer Shim Block Installation Swivel Inside/Ceiling Bracket Plate Adapter Swivel Drive Assembly Tilt Clips Swivel Plate Modular Motor Assembly Control Button 18V DC Power Supply Cable 18V DC Power Supply... -
Page 4: Tools And Fasteners Needed
® Thank you for purchasing the Smith & Noble Vertical Shadings Collection. With proper installation, operation, and care, your new shadings will provide years of beauty and performance. Please thoroughly review this instruction booklet and the enclosed packing list before beginning the installation. - Page 5 INSTALLATION INSTALLATION Mounting Types and Window Terminology If the installation brackets are mounted correctly, the rest of the installation process follows easily. To prepare for this important first step, review the mounting types and basic window terminology illustrated below. Molding (or Wall) Head Jamb Jamb Jamb...
- Page 6 INSTALLATION INSTALLATION BRACKET LOCATIONS Headral Width: 12" to 46" 5" Place Bracket 5" From Each End 5" Control End Note: For sheers with ordered width 18" or less, space the bracket on the control end as recommended and the remaining bracket anywhere in headrail space available. Headrail Width: 46 "...
-
Page 7: Outside Mount
INSTALLATION INSTALLATION INSIDE MOUNT/CEILING MOUNT Mark 5" from each jamb on the mounting surface. ■ Inside Mount If more than two installation brackets are required (see table on page 4), mark ➤ the locations of additional bracket(s) and space them evenly between the two end brackets. -
Page 8: Mount The Installation Brackets - Inside/Ceiling Mount
INSTALLATION INSTALLATION Mount the Installation Brackets — Inside/Ceiling Mount Inside/Ceiling Mount Adapter If you are mounting on corner or bay windows, refer to “Bracket Locations — Corner and Bay Windows” on page 10 for specific bracket locations. Return to this page after identifying the location. -
Page 9: Mount The Installation Brackets - Outside Mount
INSTALLATION INSTALLATION Mount the Installation Brackets — Outside Mount Outside Mount Bracket Assembly If you are mounting on corner or bay windows, refer to “Bracket Locations — Corner and Bay Windows” on page 10 for specific bracket locations. Return to this page after identifying the bracket locations. - Page 10 INSTALLATION INSTALLATION Mount the Wall Adapters or Extension Brackets Drill the screw holes using a ⁄ ” drill bit. ■ IMPORTANT: Use drywall anchors when mounting into drywall. Attach the wall adapters or extension brackets using the screws provided. ■ IMPORTANT: For proper operation, the headrail must be mounted level.
- Page 11 INSTALLATION INSTALLATION To Shim the Brackets: Loosen the installation screws securing the wall adapter. Shim ■ Insert one or more shims between the wall adapter and the mounting surface. Tighten ■ Wall the installation screws. Adapter Attach the Installation Brackets If using spacer blocks or extension brackets refer to “If Using Spacer Blocks...”...
-
Page 12: Bracket Locations - Corner And Bay Windows
INSTALLATION INSTALLATION Bracket Locations — Corner and Bay Windows Mount the first installation bracket with one spacer block 8” from the corner. ■ IMPORTANT: The ends of the headrails should be located 3” from the corner. If additional spacer blocks or extension brackets are used, the installation brackets must be moved ➤... -
Page 13: Install The Headrail
INSTALLATION INSTALLATION Install the Headrail Push up on the locking screws. This raises the locking tab and makes the headrail easier ■ Locking to install. The grooves on the back of the headrail are designed to snap into the locking tab on ■... -
Page 14: Connect Smith & Noble® Components
INSTALLATION INSTALLATION Connect Smith & Noble® Smart Shade Components Connect the Motor Assembly NOTE: Your drive assembly may look different from what is shown here. Align the pins with the holes in the drive assembly, as shown below. ■ Press the motor up into the drive assembly until it clicks into place. Connect the 18V DC Power Supply Power cable from shading motor... -
Page 15: Calibrate The Motor And Test Headrail Operation
INSTALLATION INSTALLATION Calibrate the Motor and Test Headrail Operation Before beginning the sheer setup process, a calibration reset must be performed in the Smith & Noble® App. See “Operating the Smith & Noble® App and Remote” on page 15 for more information on setup with the Smith & Noble® App. The calibration reset is used to recalibrate the sheer’s travel limits. - Page 16 INSTALLATION INSTALLATION Swivel Plates Swivel plates are right- and left-specific, marked by an R or an L. The swivel plates are packaged with the product’s hardware. Snap the rivet on the swivel plate into the front clip on the motor end cap. Swivel plates ■...
-
Page 17: Operating The Smith & Noble® App And Iii Remote
INSTALLATION OPERATION Operating the Smith & Noble® App and Remote Syncing and Programming Your Remote Activate the remote by pulling both plastic tabs from the back battery compartment. ■ Download the Smith & Noble® App for your smartphone or tablet at getsmithandnobleapp.com. - Page 18 INSTALLATION OPERATION Further Operation and Programming Information Smith & Noble® App The Smith & Noble® App is required to program Smart Shades window coverings, remotes, and gateways. The App is compatible with Apple® and Android™ smartphones and tablets. For more information regarding setup and operation using the Smith & Noble® App, refer to https://www.smithandnoble.com/window-coverings-product-manuals.
-
Page 19: Troubleshooting
INSTALLATION TROUBLESHOOTING Troubleshooting If your shade is not operating correctly: Review the digital support guide for your control device. ➤ Refer to the following troubleshooting procedures for specific solutions for your shade. ➤ If questions remain, please contact Smith & Noble Consumer Support at 888-214-2134.. Problem The headrail will not fit into the installation brackets. - Page 20 INSTALLATION TROUBLESHOOTING Problem The end treatment arm does not swing around the end cap. Solution On inside mounts, check that there is clearance between the end of the headrail and the window casement. See “Install the Headrail” on page 11. If the fabric stops before it has fully traversed, reset the system.
-
Page 21: Care
INSTALLATION CARE Removing the Fabric/Motor/Headrail (If Necessary) Should you need to remove the fabric, motor, and/or headrail, refer to the following instructions. Remove the Fabric from the Headrail IMPORTANT: Make sure you have clean hands or wear disposable gloves when handling the fabric. Select an area in the home where the fabric can be laid flat. - Page 22 INSTALLATION CARE Remove the Modular Motor Unplug the motor’s power cable from the extension cable to the DC power supply. Insert the screwdriver into the slot on the drive assembly. Twist about one-fourth turn to release ■ the spring-latch, and pull down gently on the motor assembly to separate. Twist to Release Remove the Headrail and Installation Brackets from the Wall Adapters (IB/OB)
-
Page 23: Cleaning Procedures
INSTALLATION CARE Cleaning Procedures The fabric, valance, and vane fabric are 100% polyester. They are resilient, anti-static, and dust resistant. Periodic cleaning is recommended to help keep Smith & Noble® Vertical Shading Collection looking like new. For all cleaning applications, fabrics should remain hanging to minimize handling, wrinkling, or puckering. -
Page 24: Additional Product Enhancements
INSTALLATION CARE Ultrasonic Method Professional ultrasonic cleaning is a process in which the fabric is inserted into a tank of cleaning solution and then subjected to high frequency vibrations. Dirt is loosened from the fabric and carried away in the cleaning solution. This process is done outside the home. Ensure the supplier’s ultrasonic tank is long enough to accommodate the full length of the fabric without folding the fabric or vanes. -
Page 25: Declarations
INSTALLATION SMITH & NOBLE® SMART SHADES MOTOR DECLARATIONS DECLARATIONS FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 26: Child Safety
INSTALLATION CHILD SAFETY WARNING ADVERTENCIA Window Blind Cord Strangulation Risk Window Blinds with a damaged or loose tension device or retractable cord that fails to fully retract pose a stangulation risk to children. To avoid this potential strangulation risk, consider purchasing cordless products or products with inaccessible cords. -
Page 27: Year Limited Warranty
INSTALLATION WARRANTY 10-Year Limited Warranty Smith & Noble is proud to extend a 10-year limited warranty on all Smith & Noble Custom Window Covering products. This ® ® is part of our commitment to providing the highest quality products, which has been our continued tradition since 1987 . COVERED NOT COVERED by a 10-Year...
