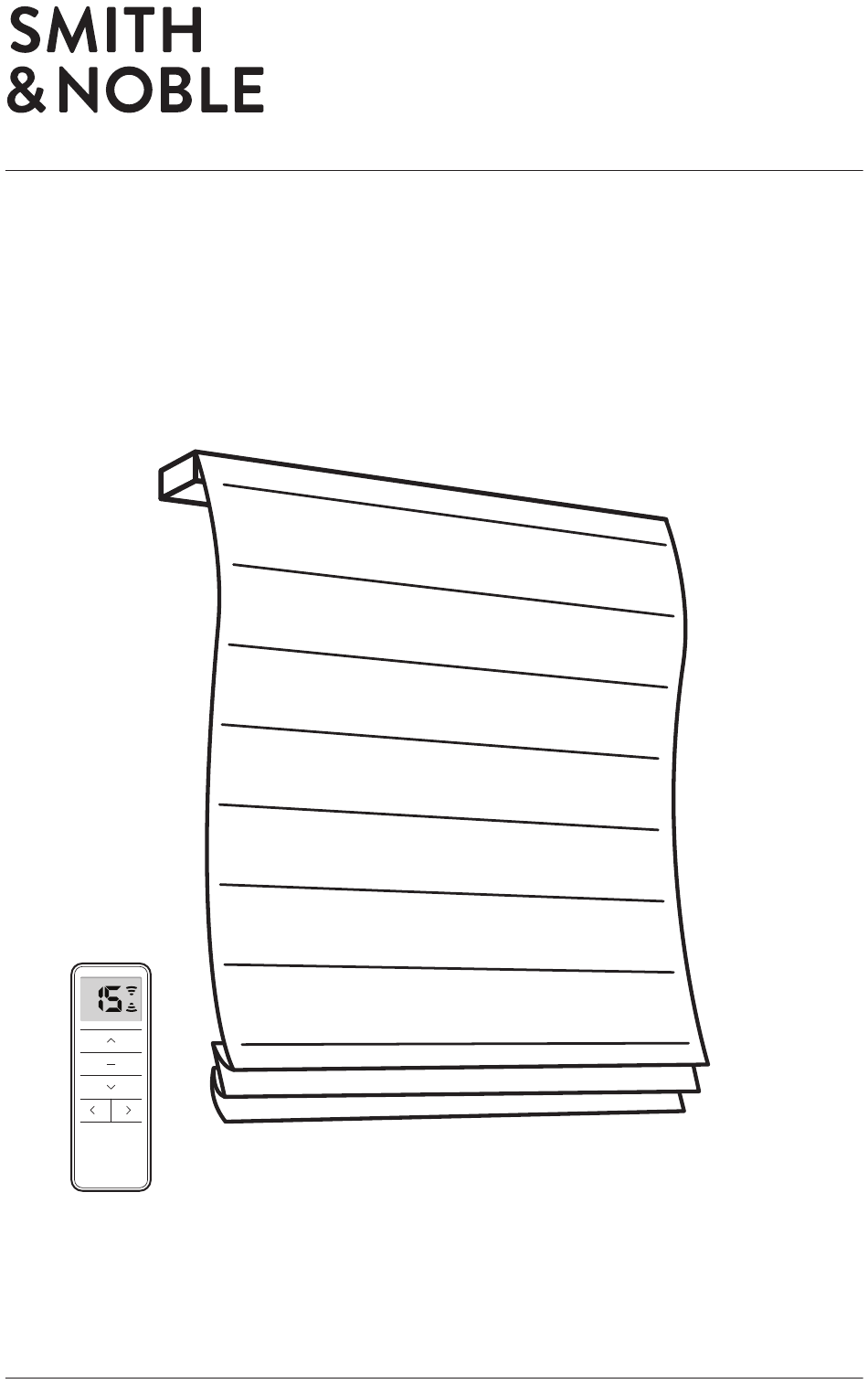

  • Page 1 Step by Step Installation Instructions Fabric Shades Motorization...

  • Page 2: Table Of Contents

    Everything Table of Contents You Need Step 1 - Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Mounting the Brackets .

  • Page 3: Step 1 - Getting Started

    STEP 1 - GETTING STARTED STEP 2 - MOUNTING THE BRACETS Inside Mount Getting Started Before you begin, check the accompanying diagram to make sure you have all the parts you need . Hold the shade inside the window frame so that the front edge of the TOOLS YOU WILL NEED TO INSTALL YOUR HARDWARE: Pencil, screwdriver, ¼"...
  • Page 4 DRESSING THE SHADES Dressing or styling your BEFORE shades Once installed, you’ll want your Smith & Noble shades to look as Smith & Noble stylized as they do in our catalog; to “dress” your shade simply smooth Smart Shades folds as you raise the shade . Your shade will gradually develop a pleat/ fold memory and minimal dressing will be needed .
  • Page 5 PAIRING THE REMOTE OPERATING THE REMOTE Your shades will need to be paired to the Select the desired channel with the CHANNEL remote prior to operati ng your shade. See Pair butt on. the Remote below. CHANNEL CHANNEL Raise and Lower Shade DISPLAY DISPLAY Pair The Remote...
  • Page 6 SETTING SHADE LIMITS SETTING SHADE LIMITS Adjust Shade Limits (If Desired) Lower Limit The lower and upper limits have been set at 1. Press and hold DOWN and STOP butt ons CHANNEL CHANNEL the factory. If you need to make adjustments for 5 seconds.
  • Page 7 SETTING & USING A FAVORITE POSITION UNPAIR THE REMOTE 1. Press SETTING Button (P1) on the motor If there is only a single shade on the for 2 seconds. The shade will jog once and channel proceed to SETTING A FAVORITE sound a long beep.
  • Page 8 ADD OR REMOVE REMOTE OR CHANNEL ADJUSTING THE JOG FUNCTION/RESETTING TO FACTORY MODE Add or Removing a Shade from a When the jog function is activated, tapping the UP or DOWN buttons for less than 2 seconds Channel CHANNEL CHANNEL will move the shade is short ‘jogs’...
  • Page 9 SWITCHING DIRECTION / ADJUSTING SPEED CHARGING SHADE Switching Directi on (Polarity) When the shade begins to operate slower than normal and beeps when operated it If the shade goes up when pressing the CHANNEL CHARGER is ti me to charge the batt ery. DOWN butt on and down when pressing DISPLAY the UP butt on, the directi on needs to be...
  • Page 10 SOLAR PANEL INSTALL SOLAR PANEL (OPTIONAL) Determine Solar Panel Placement Tape Method SOLAR PANEL RECHARGE UNIT The solar panel should be placed where Choose the locati on to mount the solar is gets the maximum amount of sunlight panel. per day. Clean the ends of the solar panel where the In most cases this can be achieved by tape will go with rubbing alcohol.
  • Page 11 INSTALL SOLAR PANEL SHORTCUTS Bracket Method SETTINGS STEPS Connect the sliding bracket and the L-shape SETTING Button (P1) for 2 seconds (1 jog & 1 beep) → STOP Pairing bracket using the two screws and nuts. Do for 2 seconds (2 jogs & 3 beeps) not overtighten to allow for easy adjustment SETTING button (P1) until 3 jogs →...

  • Page 12: Troubleshooting

    TROUBLESHOOTING CARE & CLEANING / SAFETY PROBLEM SOLUTION Care & Cleaning The shade is not responding or runs slowly Battery is low and needs charged. Recharge with compatible AC adapter. Occasional light vacuuming with a soft bristle attachment or gentle feather dusting is all that is required to keep your shades looking fresh and neat .

  • Page 13: Warranty

    Warranty Service The enjoyment of your window covering should be everlasting, which is why our products come with a limited lifetime warranty . The warranty applies to the original owner, requires a proof of purchase (hang on to your receipt!) and covers defects in material or craftsmanship . Hardware must have been properly installed .
