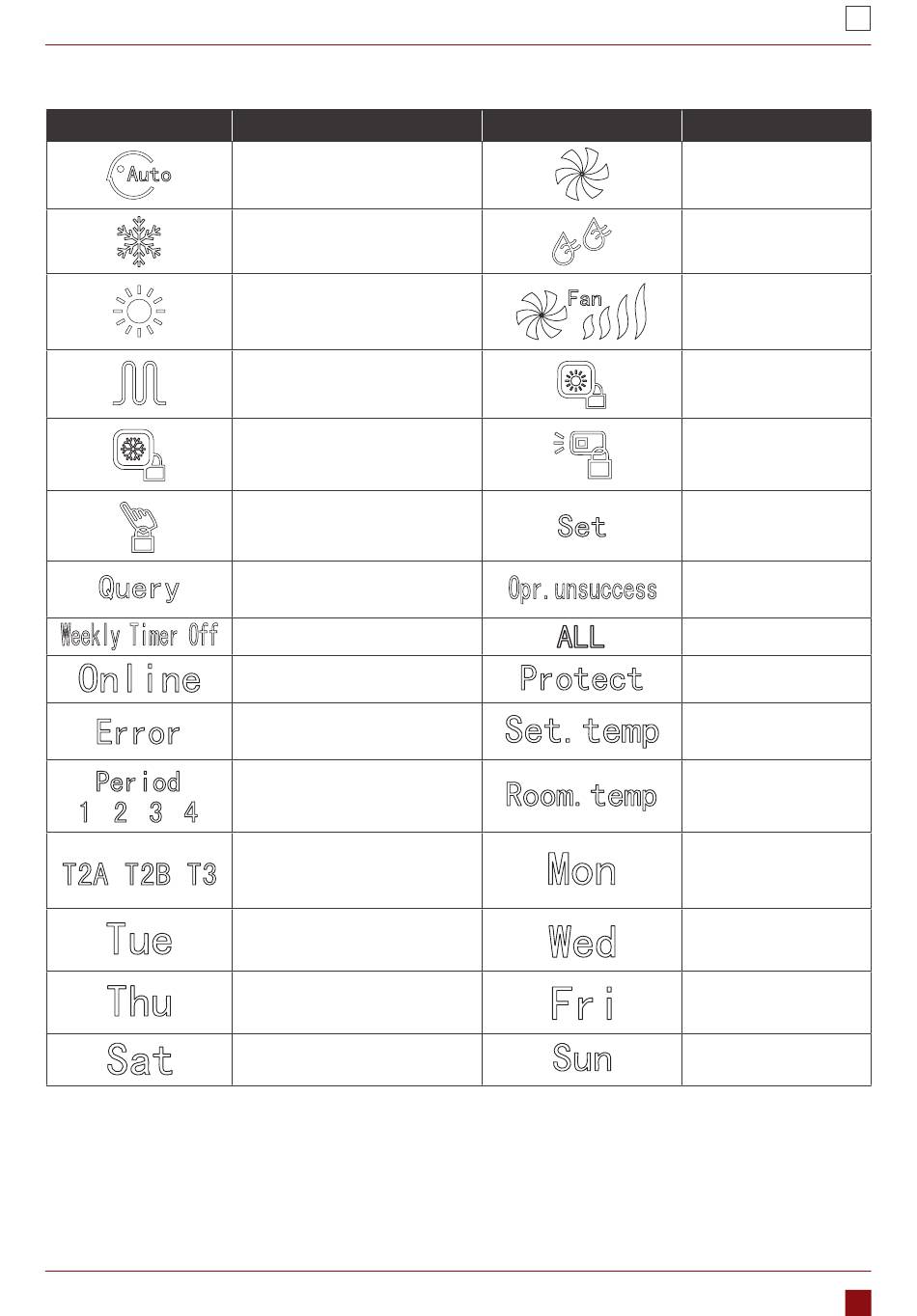

5.2 LCD icon description of the weekly-timer central controller
Icon Meaning
Automation Mode
Cool Mode
Heat Mode
Electric Auxiliary Heater
Lock Cool
Lock Keyboard
Querying
Weekly Timer Off
Online
Error
Period 1,2,3,4
T2A Indoor pipe Temperature A
T2B Indoor pipe Temperature B
T3 Outdoor pipe Temperature
Tuesday
Thursday
Saturday
RSC wired central controller
Icon
Fan Only Mode
Fan Speed
High/Middle/Low/
Lock Remoter
Operate Result
Protecting
Set Temperature
Room Temperature
Wednesday
User manual
EN
Meaning
Dry Mode
Auto
Lock Heat
Setting
All
Monday
Friday
Sunday
