Rotenso CONTROL Series User Manual page 24

RSC wired central controller
EN

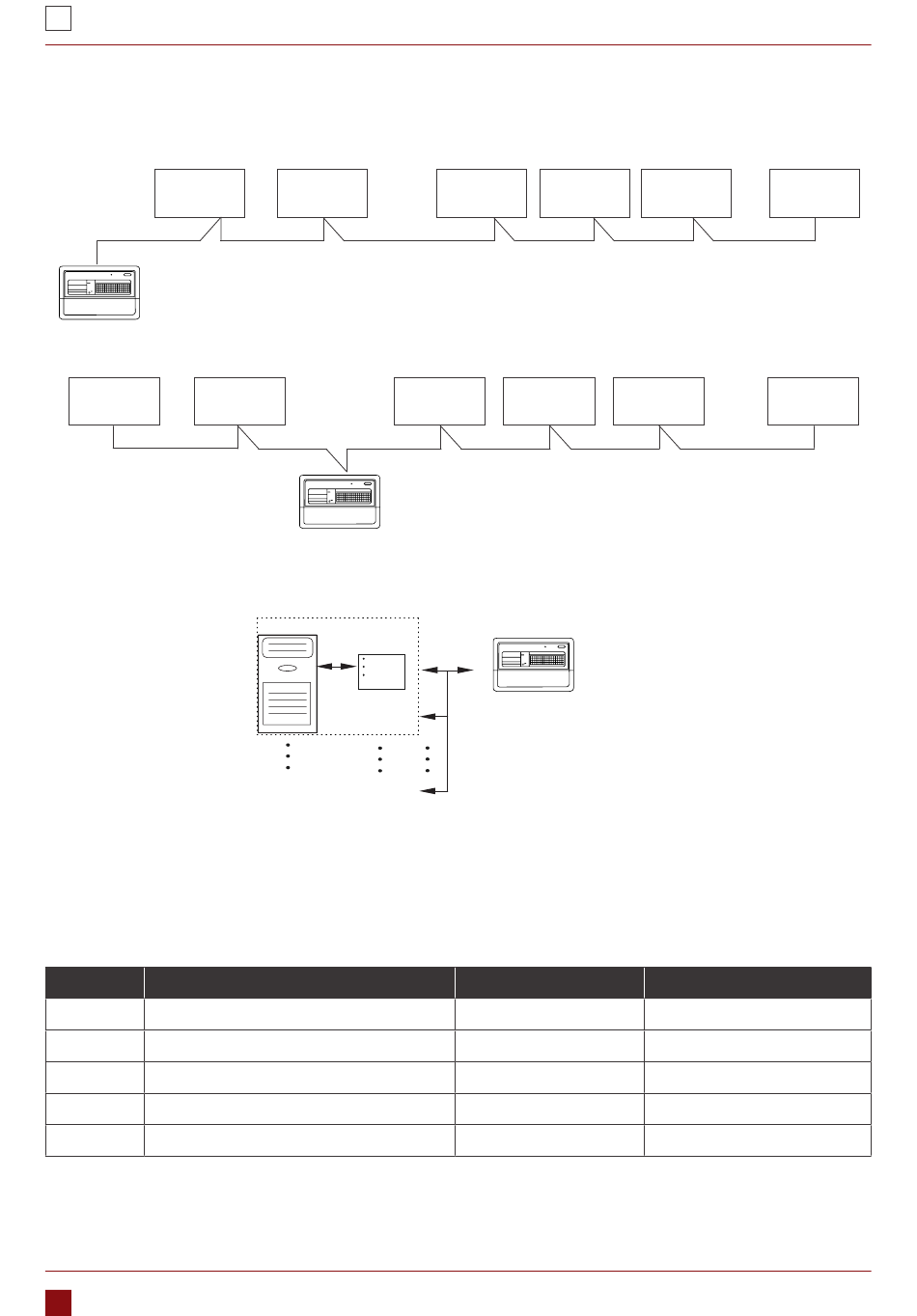

1. SYSTEM WIRING INSTRUCTIONS
Connecting diagram for air-conditioning system with central network.
1.1 Correct connecting diagram 1
Indoor
Weekly-timer central controller
1.2 Correct connecting diagram 2
Indoor
1.3 Other relevant explanation
There are two kinds of indoor unit, namely indoor unit with built-in network module or external network module.
2. ACCESSORY LIST AND ITEMS
2.1 The packing list of the weekly-timer central controller RSCPT
The following is the packing list of the weekly-timer central controller RSCPT. Confirm whether it contains all
accessories.
Num
1 Weekly-timer central controller
2 Cross recessed pan head tapping screw
3 Plastic expansion tube
4 Installation and operating instructions
5
24
User manual
Indoor
Indoor
Indoor
MFBR
MAX = 64
Name
Matching resistor
Indoor Indoor
Indoor Indoor
Weekly-timer central controller
X Y E
Weekly-timer central controller
Quantity
1 pc
6 pcs
6 pcs
1 pc
2 pcs
Indoor Indoor
Indoor Indoor
Remarks
RSCPT
GB845/ST3.9X25-C-H S
6 × 30
RSCPT
120 Ohm
