LED Indicators

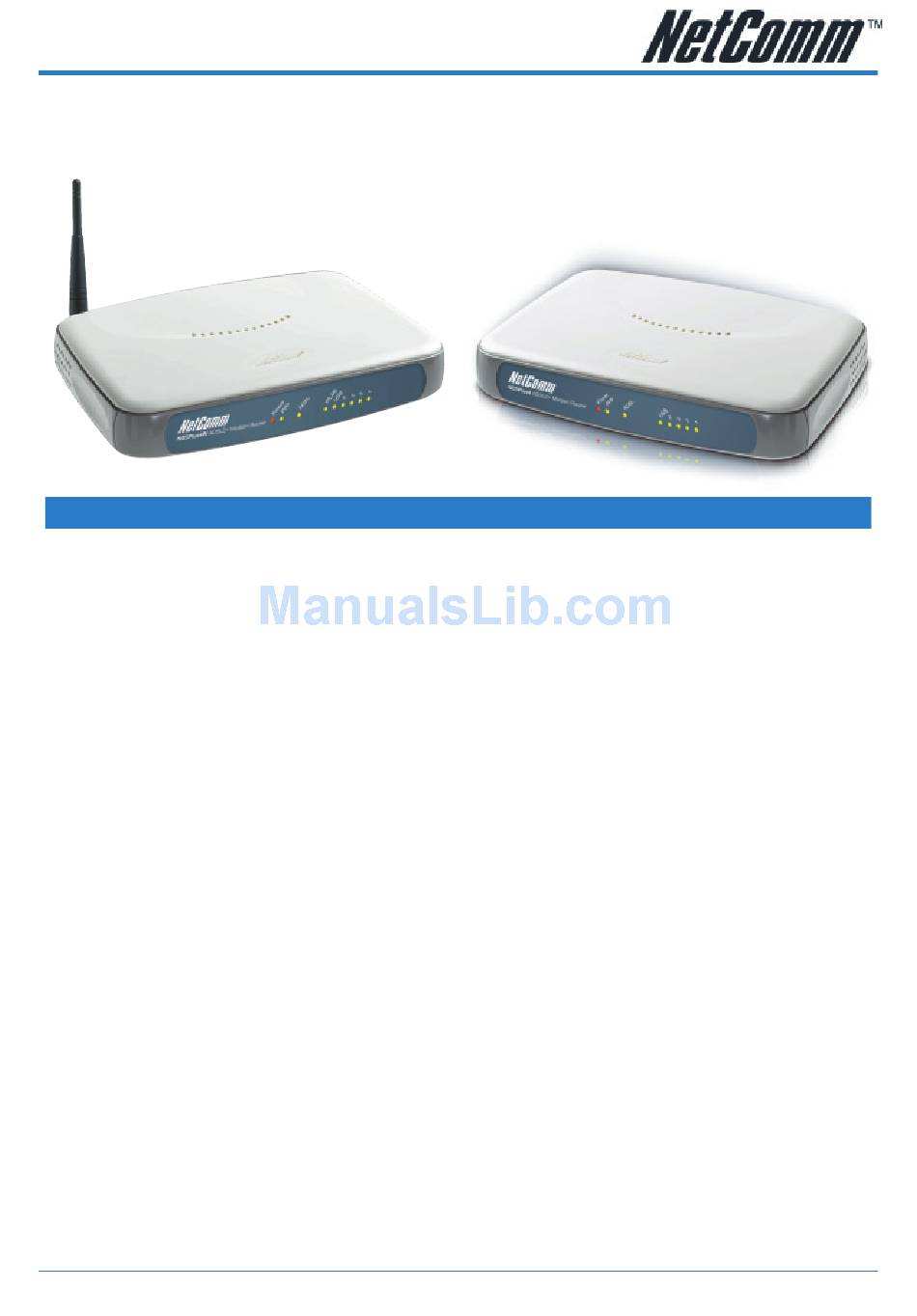

The LED Indicators are located on the front of the unit, they are green in colour,
except the Power LED which is red. The meanings are as follows:
Label
Power
PPP
ADSL
WLAN
(NB5Plus4W)
USB
LAN 4, 3, 2 & 1
YML754 Rev1
www.netcomm.com.au
Status
On
Off
Flashing
On
Off
On
Flashing
On
Flashing
On
Flashing
Flashing
On
Off
Indicates
Power is on
Power is off
Trying to authenticate with ISP's PPP
server.
PPP link is up.
No PPP link available.
A valid ADSL connection.
An active WAN session.
Wireless link is enabled on NB5Plus4W.
Data is being transmitted wirelessly.
PC connected to USB port.
Data is being transmitted between
NB5Plus4/W and PC.
Flashes when data is being sent or re-
ceived on the LAN connection.
Indicates a link to your LAN or Network
card is active.
Indicates no link to LAN
NB5Plus4/W User Guide
9
