If you have entered the correct communication settings
and if you have connected a network cable, you can
enter the IP address in the web browser and then
access the web server of the AHU. If you need to adjust
any communication parameters, you can do so with the
touch panel or the web server.
Setting the static IP address
1. On the main menu, select 'Installer
è Communication è Internet' .

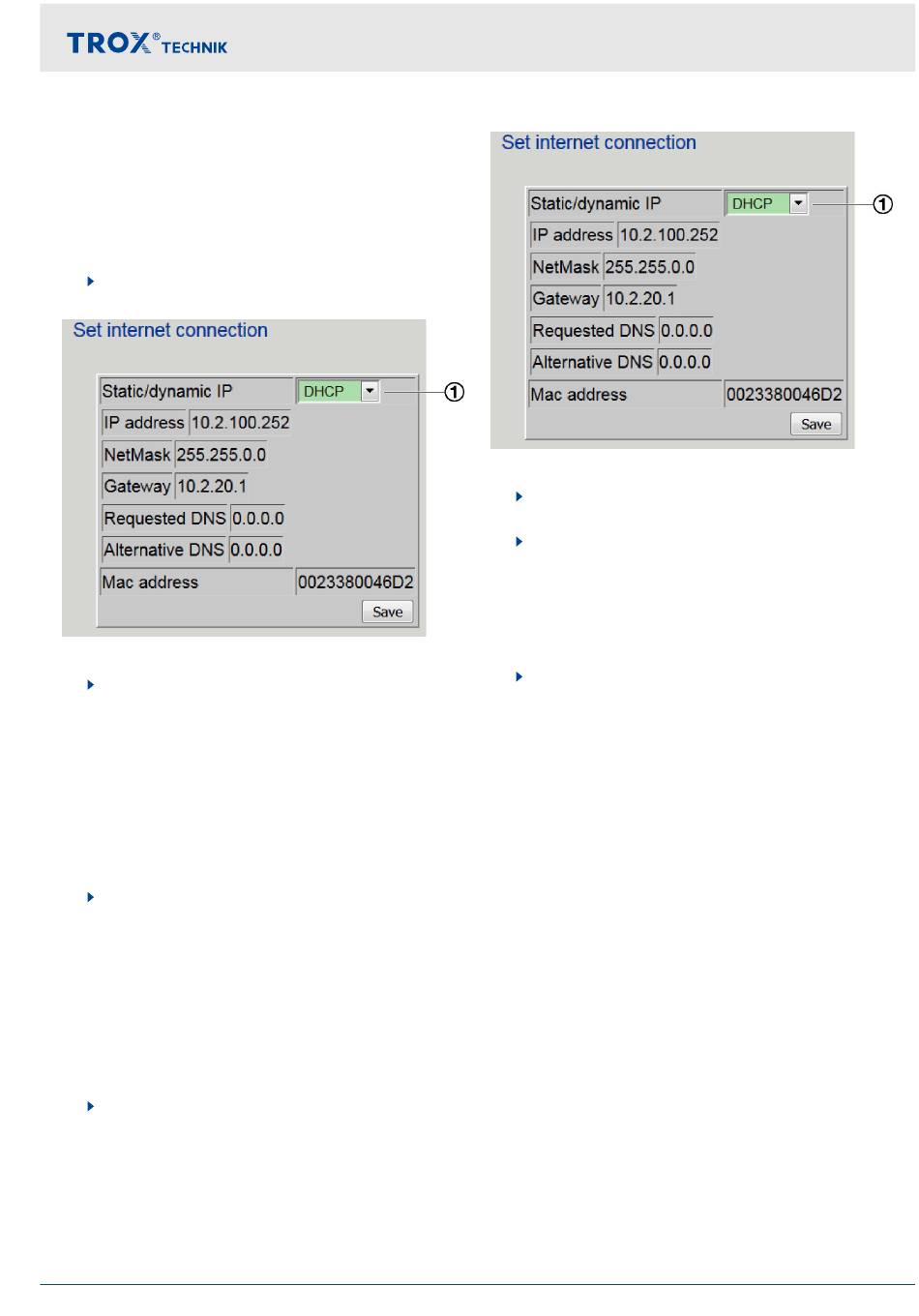

Fig. 38: Setting the static IP address
2. Select 'Static IP' from the drop down list
( Fig. 38 /1), then set the following parameters:
IP address

Be sure to enter the correct IP address on the
controller: it is the same as for the PC except
for the last digit, which is different.
Netmask (use same value as on PC).

Gateway (use same value as on PC).

Primary DNS (use same value as on PC).

Secondary DNS (use same value as on PC).

3. Click on 'Save' .
ð The communication parameters for connecting
a PC have been set; to call the web server,
enter the set IP address in the web browser.
If you intend to integrate the AHU with a network, you
can set the IP address to 'DHCP' ; the controller will
then receive a dynamic IP address via the network.
Setting a dynamic IP address
1. On the main menu, select 'Installer
è Communication è Internet' .
Configuration with the web interface > Setting parameters
Fig. 39: Setting a dynamic IP address
2. Select 'DHCP' from the drop down list
( Fig. 39 /1).
3. Click on 'Save' .
ð The IP address of the X-CUBE controller
Displaying the AHU configuration
4. Open the browser on your PC and enter the
displayed address into the address line, e.g.
http://10.2.100.252/
ð The AHU configuration displays.
AHU X-CUBE X2 compact 2
Operation and setting
is automatically assigned. The IP address
assigned by the router is then displayed (given
that the network connection is correct).
