Multi-Tech CallFinder Quick Start

Getting Started

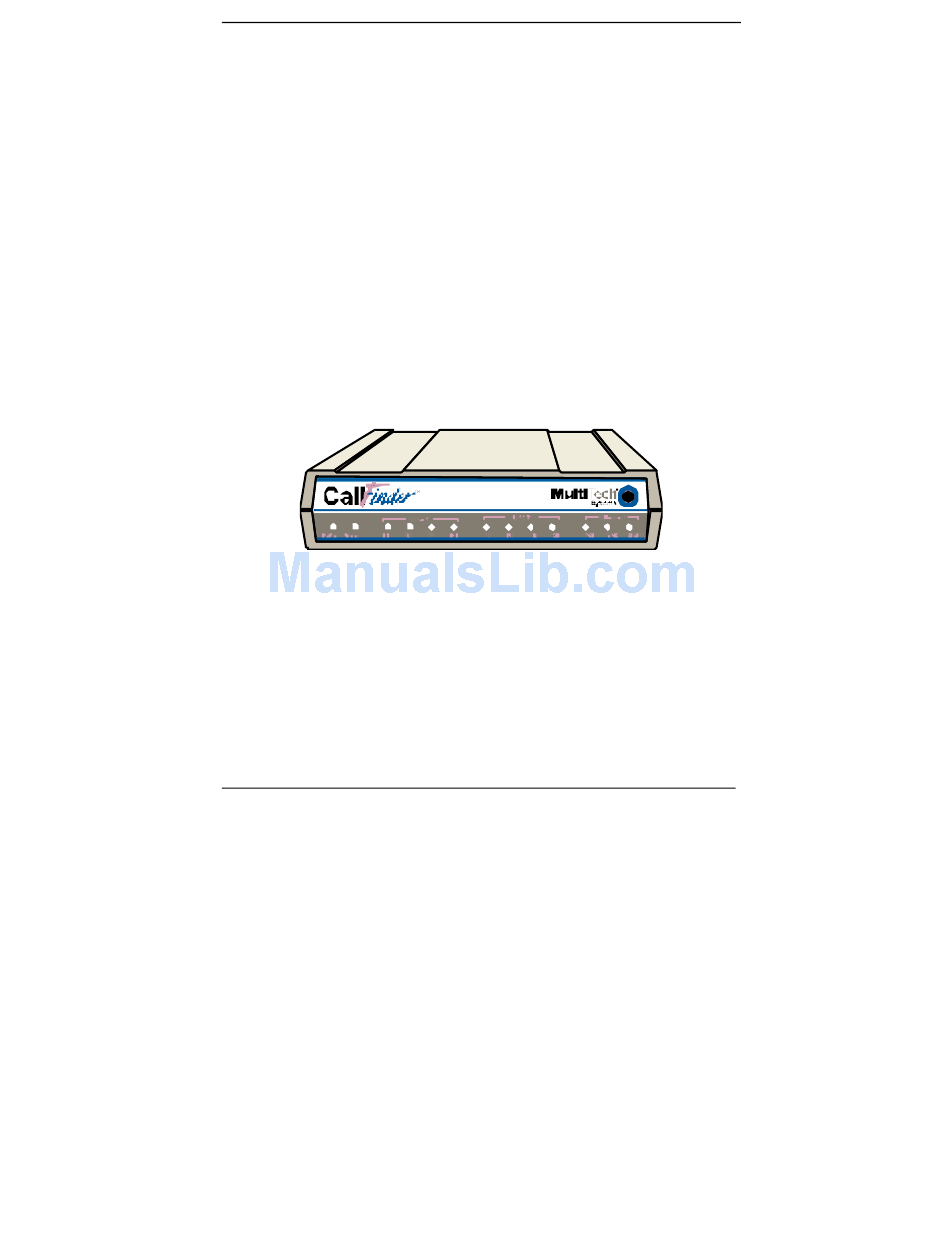

This guide shows you how to set up your Multi-Tech Model CF220

CallFinder.

The CallFinder is a DID-to-analog telephony adapter. It brings

analog DID services to a key telephone system or PBX that is not

DID-enabled. When equipped with the CallFinder, the phone

system can route incoming DID calls directly to end-user extensions.

The CallFinder has two DID channels. Each channel is connected

to the telco DID line on one side and to the PBX/key system on the

other side. A CallFinder extension port can be connected either to a

trunk port or to a station port on a PBX. The choice between trunk

port or station port connections depends on port availability, logging

requirements, and/or on whether it is necessary for incoming DID

calls to be treated like outside calls instead of intra-PBX calls.

• A CF220 CallFinder with factory-installed software

• Two power supplies – one 5Vdc and one 48Vdc

• Two common telephone cables (RJ11 at both ends)

• Two DID telephone cables (RJ11 at one end; RJ12 at other end)

• A utility software program for updating CallFinder firmware

• This printed Quick Start Guide
