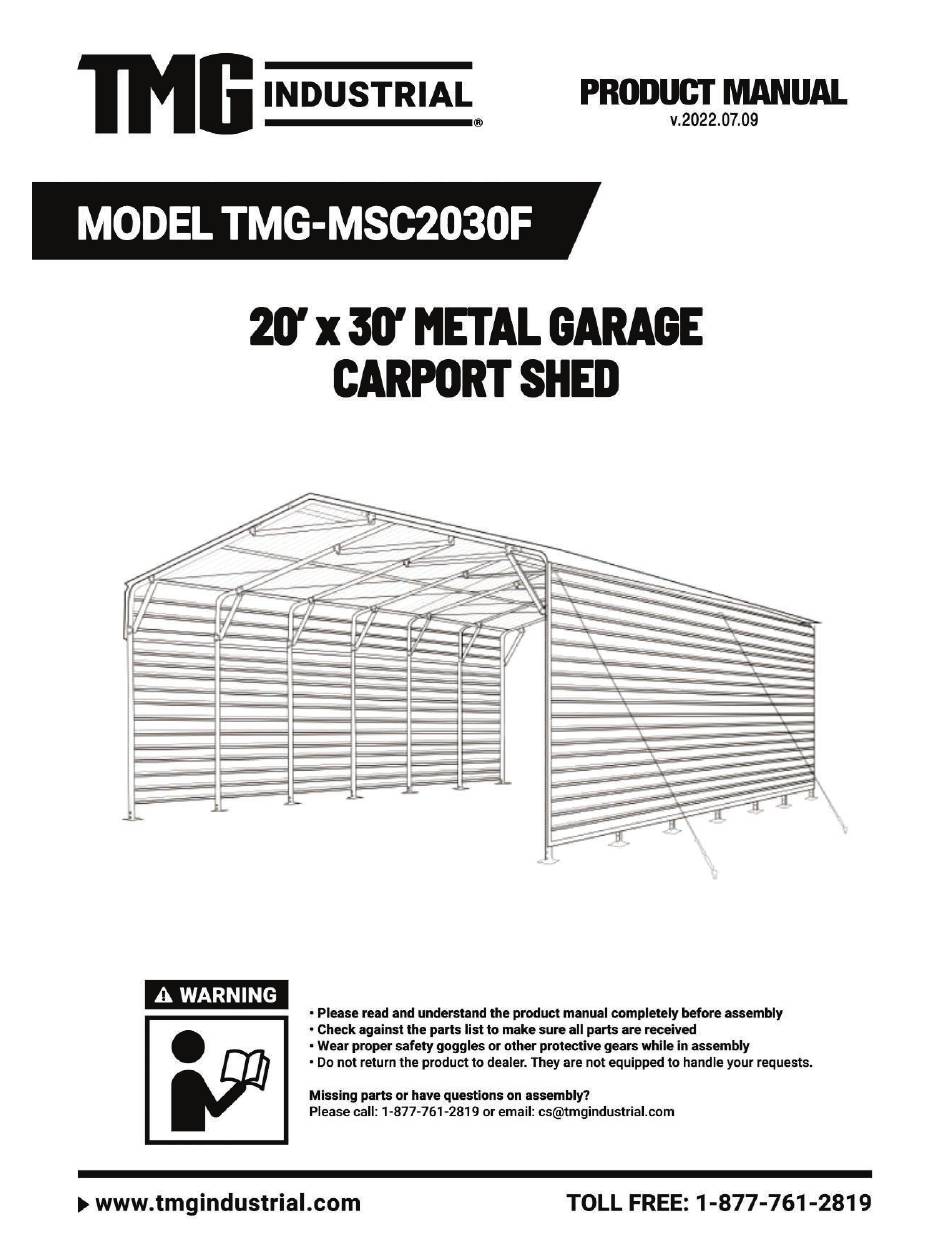

- Page 1 W W W . T M G I N D U S T R I A L . C O M P 0 / 1 4 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...

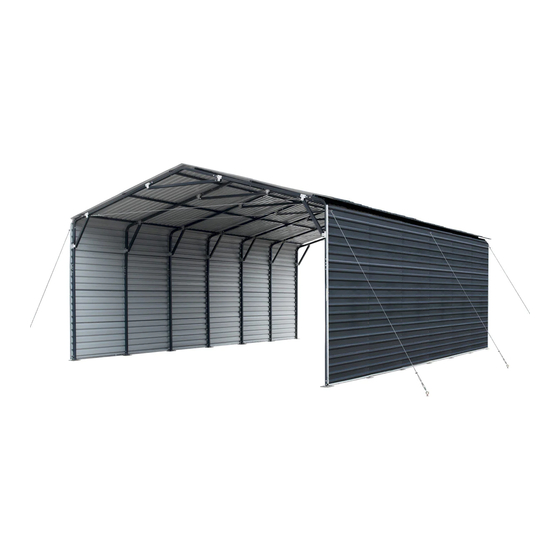

- Page 2 Main specifications : Assembly size : W6 x L9 x H3.8 (m) / 19.7 x 29.5 x 12.5 (ft) Width : 6m / 19.7 ft Length : 9m / 29.5 ft Ridge Peak Height : 3.8 m / 12.5 ft Shoulder height : 2.9 m / 9.5ft Prior to assembly Please read the instructions carefully before installation.
- Page 3 Frame structure diagram W W W . T M G I N D U S T R I A L . C O M P 2 / 1 4 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
- Page 4 TMG-MSC2030F Part List Parts Graphical Description Length Code L1668mm Peak arch tube L1880mm Middle rafter tube L1188mm Shoulder tube L1188mm Shoulder tube Sidewall tube L1924mm Short casing L198mm Baseplate W150xL200mm Side edge crossbar L1570mm (front and rear truss) Side edge crossbar...
- Page 5 Metal sheet W870xL1600mm W580xL1600mm Metal sheet L1430mm Edge protector Edge buckle L200mm Edge protector(top) L1600mm M10x90mm Eyebolt φ16x120mm Anchor hook Steel cable L3.9m Steel cable Expansion bolt φ16 x 150mm Drill φ3.5mm M10 x 70mm Hex bolt Self tapping screw #12 x 30mm Blind rivet φ3x10mm...
- Page 6 Step 1 : Baseplate positioning and installation. The diagonal X and Y must be equal. Installation diagram of expansion bolt. Part W W W . T M G I N D U S T R I A L . C O M P 5 / 1 4 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
- Page 7 Step 2 : Install all trusses. Install front, rear and middle trusses. Part Part 34x3 W W W . T M G I N D U S T R I A L . C O M P 6 / 1 4 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
- Page 8 Install other trusses. (4 trusses) Part Part 34x4 W W W . T M G I N D U S T R I A L . C O M P 7 / 1 4 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
- Page 9 Step 3 : Put up the all trusses, install the wire rope. Part W W W . T M G I N D U S T R I A L . C O M P 8 / 1 4 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
- Page 10 Step 4 : Install top cross bar. Part Part W W W . T M G I N D U S T R I A L . C O M P 9 / 1 4 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
- Page 11 Step 5 : Install side panels. Part Part W W W . T M G I N D U S T R I A L . C O M P 1 0 / 1 4 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
- Page 12 Step 6 : Install the roof panels. Part W W W . T M G I N D U S T R I A L . C O M P 1 1 / 1 4 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
- Page 13 Part Part W W W . T M G I N D U S T R I A L . C O M P 1 2 / 1 4 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
- Page 14 Step 7 : Install the wire rope. Part Part W W W . T M G I N D U S T R I A L . C O M P 1 3 / 1 4 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
- Page 15 After the Installation Walk around and inspect the carport periodically to make sure all components are still firmly secured and the whole carport is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good position. Check the base plates, adjust the ropes and tie downs if required and clean the cover regularly.
- Page 16 ATTENTION TO ENSURE THAT YOUR CARPORT SHED HAS BEEN SECURELY INSTALLED AND ITS WARRANTY VALIDITY, IT IS IMPORTANT TO READ THE FOLLOWING PAGES CAREFULLY.
- Page 17 As the owner of your product, it is important to take the necessary steps to ensure its stability and durability, especially in areas where heavy snow or high winds are common. Following these three steps will help prevent any damage due to snow or wind loads, and ensure that the product warranty remains valid.
