Arduino® Nano Matter
4 Functional Overview
The core of the Nano Matter is the MGM240SD22VNA microcontroller from Silicon Labs. The board also contains
several peripherals and actuators connected to its microcontroller, such as a push button and an RGB LED available
for the user.
4.1 Pinout

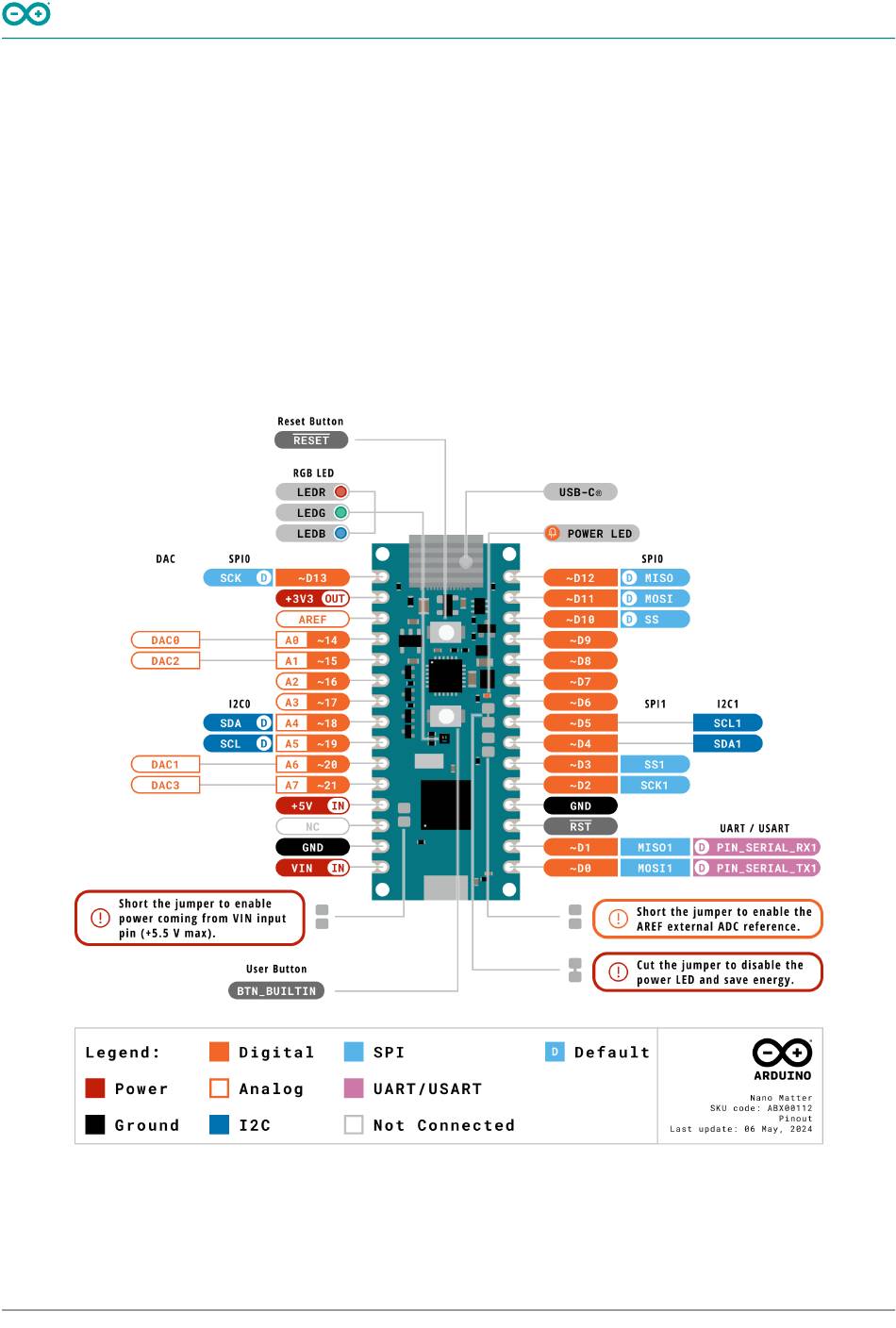

The Nano-styled header connectors pinout is shown in the figure below.
7 / 17
Arduino® Nano Matter
Modified: 11/07/2024
