Arduino® Nano Matter

6 Mechanical Information

The Nano Matter is a double-sided 18 mm x 45 mm board with a USB-C® port overhanging the top edge and dual
castellated/through-hole pins around the two long edges; the onboard wireless antenna is located in the center of
the bottom edge of the board.

6.1 Board Dimensions

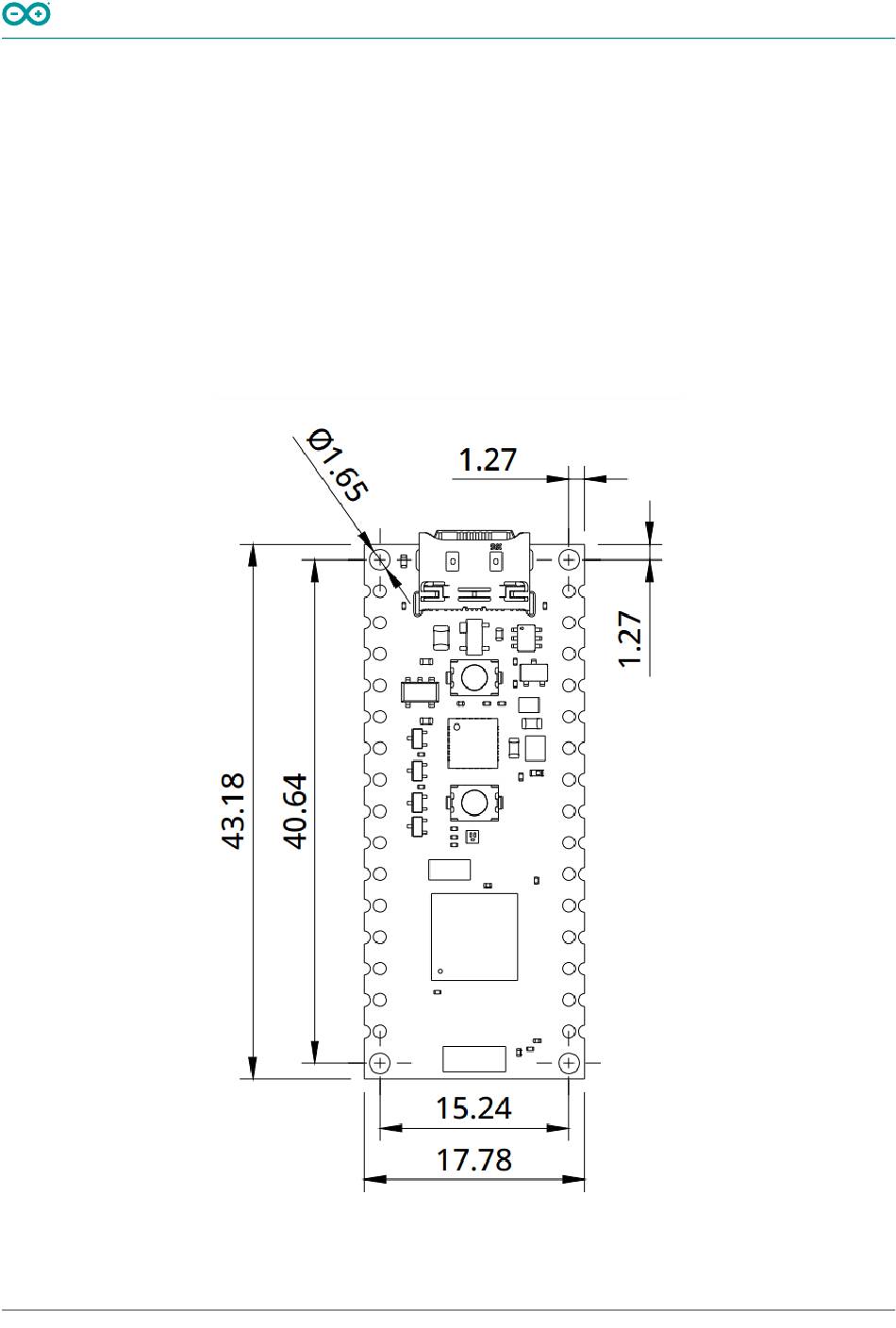

The Nano Matter board outline and mounting holes dimensions are shown in the figure below; all the dimensions
are in mm.
The Nano Matter has four 1.65 mm drilled mounting holes for mechanical fixing.
