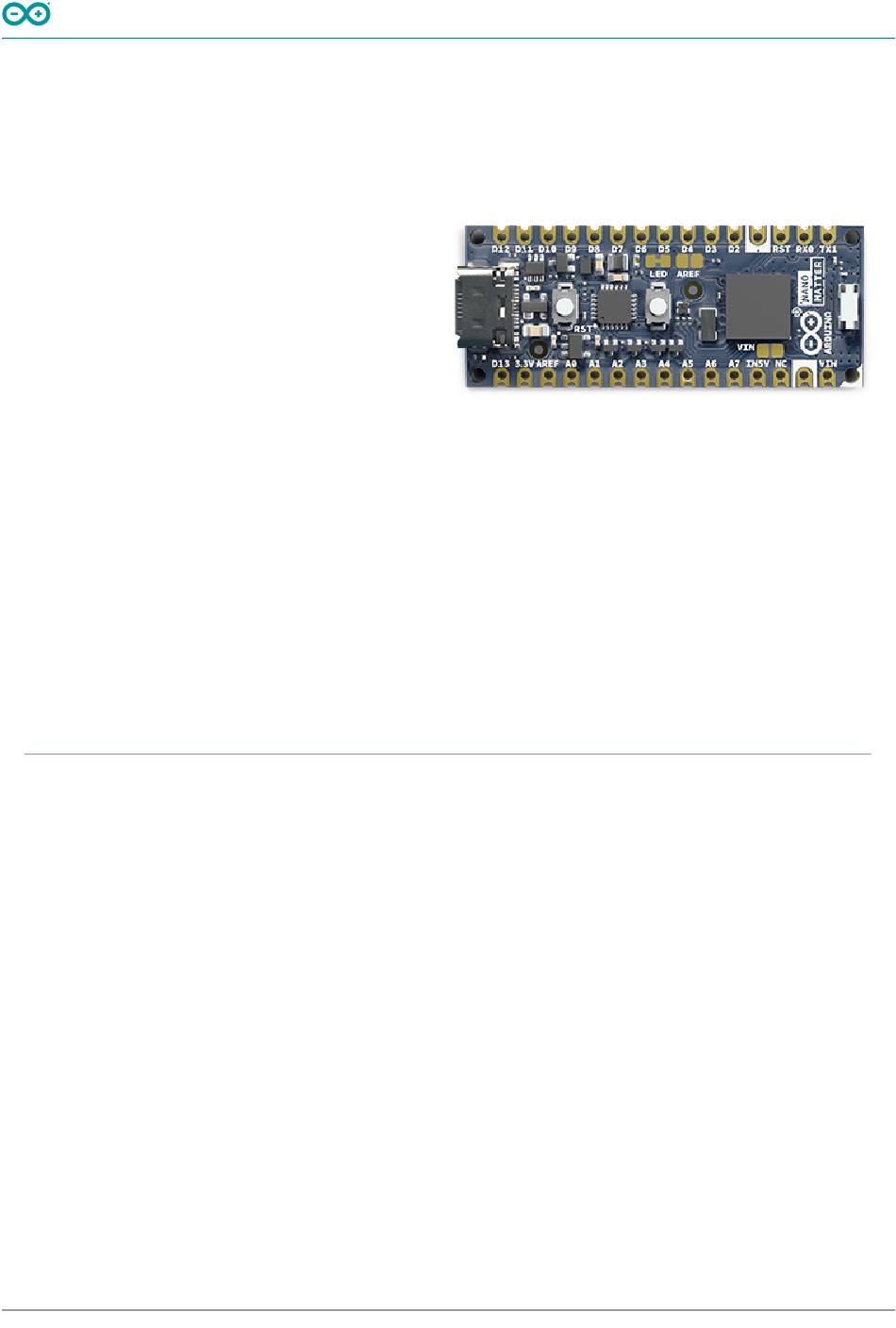

Arduino® Nano Matter

Product Reference Manual

SKU: ABX00112

Description

Expand your home automation and building management projects with the Arduino Nano Matter. This board

integrates the high-performance MGM240S microcontroller from Silicon Labs and directly brings the advanced

Matter standard for Internet of Things (IoT) connectivity to hobbyists and professionals. The Nano Matter's compact

and sturdy build, measuring 18 mm x 45 mm, is perfect for projects that demand energy eﬃciency and diverse

connectivity options, such as Bluetooth® Low Energy and OpenThread. Embrace the simplicity and versatility of the

Nano Matter to eﬀortlessly interface with any Matter® compatible devices and leverage the Arduino ecosystem's

wide range of peripherals and inputs/outputs to enhance your device connectivity and project capabilities.

Target Areas

Internet of Things, home automation, professional automation, environmental monitoring, and climate control

1 / 17

Arduino® Nano Matter

Modiﬁed: 11/07/2024

Table of Contents

Need help?

Do you have a question about the Nano Matter and is the answer not in the manual?

Questions and answers

Summary of Contents for Arduino Nano Matter

Page 1 MGM240S microcontroller from Silicon Labs and directly brings the advanced Matter standard for Internet of Things (IoT) connectivity to hobbyists and professionals. The Nano Matter's compact and sturdy build, measuring 18 mm x 45 mm, is perfect for projects that demand energy eﬃciency and diverse connectivity options, such as Bluetooth®...
Page 2: Table Of Contents
4.1 Pinout 4.2 Block Diagram 4.3 Power Supply 5 Device Operation 5.1 Getting Started - IDE 5.2 Getting Started - Arduino Web Editor 5.3 Getting Started - Arduino Cloud 5.4 Sample Sketches 5.5 Online Resources 6 Mechanical Information 6.1 Board Dimensions 6.2 Board Connectors...
Page 3: Application Examples
Arduino® Nano Matter 1 Application Examples The Arduino Nano Matter is not just an IoT board, it is a gateway to innovation in various sectors, from streamlining manufacturing processes to creating responsive and comfortable living and working environments. Discover more...
Page 4: Features
Arduino® Nano Matter Industrial automation: Unlock the full potential of modern manufacturing with the Nano Matter. Designed for seamless integration into industrial settings, the Nano Matter streamlines operations through: Machine-to-Machine interoperability: Enhance your factory ﬂoor with the Nano Matter boards to enable dynamic supervision between machines.
Page 5: Included Accessories
Arduino® Nano Matter 2.2 Included Accessories No accessories are included 2.3 Related Products Arduino USB Type-C® Cable 2-in-1 (SKU: TPX00094) Arduino Nano Screw Terminal Adapter (SKU: ASX00037-3P) 5 / 17 Arduino® Nano Matter Modiﬁed: 11/07/2024...
Page 6: Ratings
3.1 Recommended Operating Conditions The table below provides a comprehensive guideline for the optimal use of the Nano Matter, outlining typical operating conditions and design limits. The operating conditions of the Nano Matter are largely a function based on its component's speciﬁcations.
Page 7: Functional Overview
Arduino® Nano Matter 4 Functional Overview The core of the Nano Matter is the MGM240SD22VNA microcontroller from Silicon Labs. The board also contains several peripherals and actuators connected to its microcontroller, such as a push button and an RGB LED available for the user.
Page 8: Block Diagram
Arduino® Nano Matter 4.2 Block Diagram An overview of the high-level architecture of the Nano Matter is illustrated in the ﬁgure below. 8 / 17 Arduino® Nano Matter Modiﬁed: 11/07/2024...
Page 9: Power Supply
External +5 VDC power supply: This can be connected to the IN5V pin or the VIN pin of the Nano-styled header connector. For the VIN pin, ensure the VIN jumper is shorted to enable the power supply. A detailed ﬁgure below illustrates the power options available on the Nano Matter and the main system power architecture.
Page 10: Device Operation
5 Device Operation 5.1 Getting Started - IDE If you want to program your Nano Matter oﬄine, install the Arduino Desktop IDE [1]. To connect the Nano Matter to your computer, you will need a USB-C® cable. 5.2 Getting Started - Arduino Web Editor All Arduino devices work out of the box on the Arduino CLoud Editor [2] by installing a simple plugin.
Page 11: Mechanical Information
6 Mechanical Information The Nano Matter is a double-sided 18 mm x 45 mm board with a USB-C® port overhanging the top edge and dual castellated/through-hole pins around the two long edges; the onboard wireless antenna is located in the center of the bottom edge of the board.
Page 12: Board Connectors
Arduino® Nano Matter 6.2 Board Connectors Connectors of the Nano Matter are placed on the top side of the board; their placement is shown in the ﬁgure below; all the dimensions are in mm. The Nano Matter was designed to be usable as a surface-mount module and presents a dual inline package (DIP) format with the Nano-styled header connectors on a 2.54 mm pitch grid with 1 mm holes.
Page 13: Board Peripherals And Actuators
6.3 Board Peripherals and Actuators The Nano Matter has one push button and one RGB LED available for the user; both the push button and the RGB LED are placed on the top side of the board. Their placement is shown in the ﬁgure below; all the dimensions are in The Nano Matter is designed to be usable as a surface-mount module and presents a dual inline package (DIP) format with the Nano-styled header connectors on a 2.54 mm pitch grid with 1 mm holes.
Page 14: Product Compliance
7.3 Declaration of Conformity to EU RoHS & REACH 211 01/19/2021 Arduino boards are in compliance with RoHS 2 Directive 2011/65/EU of the European Parliament and RoHS 3 Directive 2015/863/EU of the Council of 4 June 2015 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
Page 15: Conflict Minerals Declaration
ECHA (European Chemical Agency) 1907 /2006/EC. 7.4 Conflict Minerals Declaration As a global supplier of electronic and electrical components, Arduino is aware of our obligations concerning laws and regulations regarding Conﬂict Minerals, speciﬁcally the Dodd-Frank Wall Street Reform and Consumer Protection Act, Section 1502.
Page 16 Important: The operating temperature of the EUT can’t exceed 85 °C and shouldn’t be lower than -40 °C. Hereby, Arduino S.r.l. declares that this product is in compliance with essential requirements and other relevant provisions of Directive 2014/53/EU. This product is allowed to be used in all EU member states.
Page 17: Company Information
Company address Via Andrea Appiani, 25 - 20900 MONZA (Italy) 10 Reference Documentation Link Arduino IDE (Desktop) https://www.arduino.cc/en/Main/Software Arduino IDE (Cloud) https://create.arduino.cc/editor Arduino Cloud - Getting started https://docs.arduino.cc/arduino-cloud/getting-started/iot-cloud-getting-started Nano Matter Documentation https://docs.arduino.cc/hardware/nano-matter Project Hub https://create.arduino.cc/projecthub?by=part&part_id=11332&sort=trending Library Reference https://www.arduino.cc/reference/en/ Online Store https://store.arduino.cc/...
