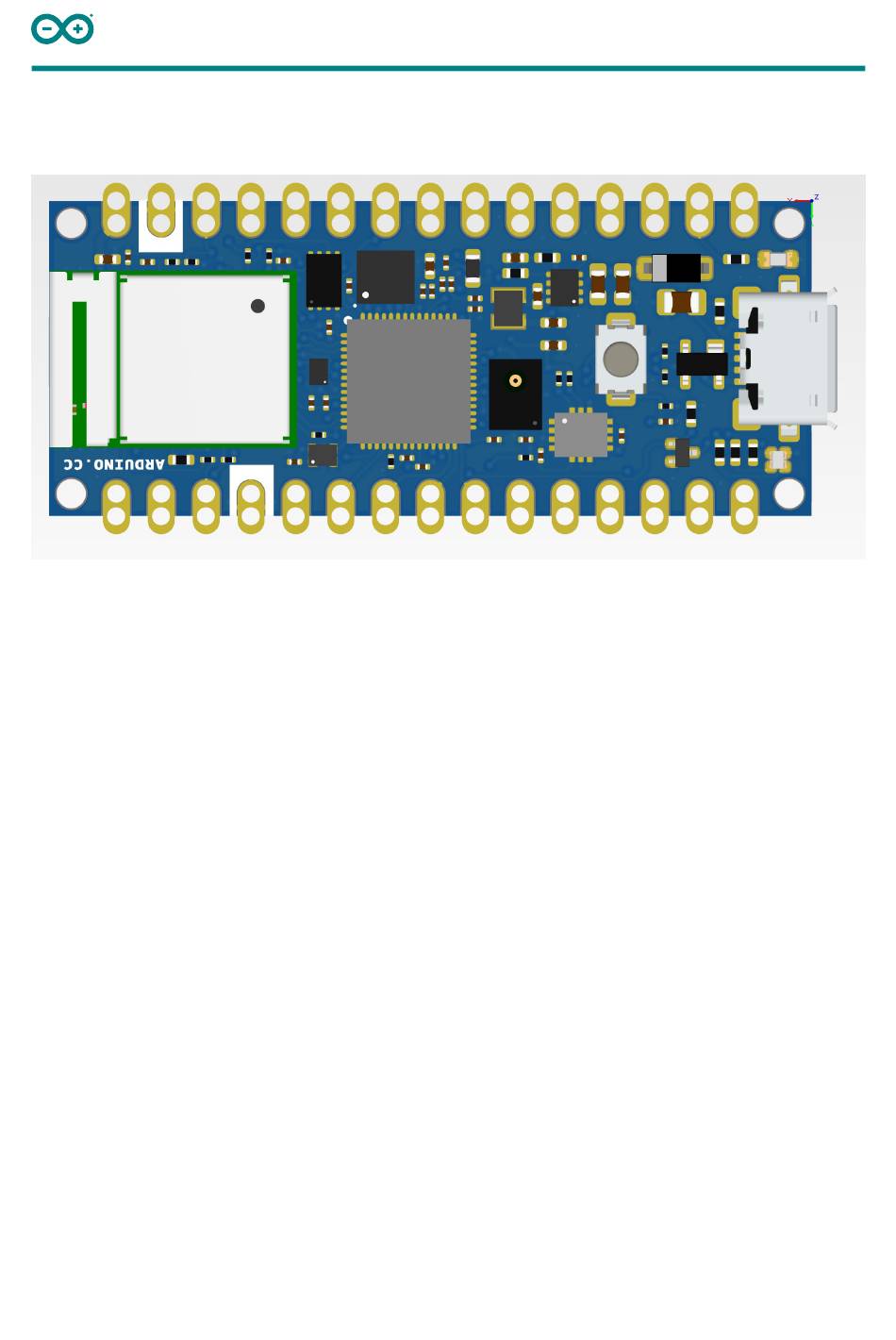

Arduino® Nano RP2040 Connect
Product Reference Manual
SKU: ABX00053
Arduino® Nano RP2040 Connect
Description
The feature packed Arduino® Nano
RP2040 Connect brings the new
Raspberry Pi RP2040 microcontroller to
the Nano form factor. Make the most of the
dual core 32-bit Arm® Cortex®-M0+ to
make Internet of Things projects with
Bluetooth and WiFi connectivity thanks to the
U-blox® Nina W102 module. Dive into
real-world projects with the onboard
accelerometer, gyroscope, RGB LED and
microphone. The external The Arduino®
Nano RP2040 Connect is pin-compatible
with the Nano form factor to develop robust
solutions with minimal effort!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nano RP2040 Connect and is the answer not in the manual?

Questions and answers

Related Manuals for Arduino Nano RP2040 Connect

Summary of Contents for Arduino Nano RP2040 Connect

  • Page 1 Arduino® Nano RP2040 Connect Product Reference Manual SKU: ABX00053 Arduino® Nano RP2040 Connect Description The feature packed Arduino® Nano RP2040 Connect brings the new Raspberry Pi RP2040 microcontroller to the Nano form factor. Make the most of the dual core 32-bit Arm® Cortex®-M0+ to make Internet of Things projects with Bluetooth and WiFi connectivity thanks to the U-blox® Nina W102 module. Dive into real-world projects with the onboard accelerometer, gyroscope, RGB LED and microphone. The external The Arduino® Nano RP2040 Connect is pin-compatible with the Nano form factor to develop robust solutions with minimal effort!
  • Page 2 Arduino® Nano RP2040 Connect Target Areas Internet of Things (IoT), machine learning, prototyping, Features Raspberry Pi RP2040 Micrcontroller 133MHz 32bit Dual Core Arm® Cortex®-M0+ 264kB on-chip SRAM Direct Memory Access (DMA) controller Support for up to 16MB of off-chip Flash memory via dedicated QSPI bus USB 1.1 controller and PHY, with host and device support 8 PIO state machines Programmable IO (PIO) for extended peripheral support 4 channel ADC with internal temperature sensor, 0.5 MSa/s, 12-bit conversion SWD Debugging 2 on-chip PLLs to generate USB and core clock 40nm process node Multiple low power mode support USB 1.1 Host/Device Internal Voltage Regulator to supply the core voltage Advanced High-performance Bus (AHB)/Advanced Peripheral Bus (APB) U-blox® Nina W102 WiFi/Bluetooth Module 240MHz 32bit Dual Core Xtensa LX6 520kB on-chip SRAM 448 Kbyte ROM for booting and core functions 16 Mbit FLASH for code storage including hardware encryption to protect programs and data 1 kbit EFUSE (non- erasable memory) for MAC addresses, module configuration, Flash-Encryption, and Chip-ID IEEE 802.11b/g/n single-band 2.4 GHz WiFi operation Bluetooth 4.2 Integated Planar Inverted-F Antenna (PIFA) 4x 12-bit ADC 3x I2C, SDIO, CAN, QSPI Memory AT25SF128A 16MB NOR Flash QSPI data transfer rate up to 532Mbps 100K program/erase cycles 2 / 20 Arduino® Nano RP2040 Connect / Rev. 01 - 03/05/2021...
  • Page 3 Arduino® Nano RP2040 Connect ST LSM6DSOXTR 6-axis IMU 3D Gyroscope ±2/±4/±8/±16 g full scale 3D Accelerometer ±125/±250/±500/±1000/±2000 dps full scale Advanced pedometer, step detector and step counter Significant Motion Detection, Tilt detection Standard interrupts: free-fall, wakeup, 6D/4D orientation, click and double-click Programmable finite state machine: accelerometer, gyroscope and external sensors Machine Learning Core Embedded temperature sensor ST MP34DT06JTR MEMS Microphone AOP = 122.5 dBSPL 64 dB signal-to-noise ratio Omnidirectional sensitivity -26 dBFS ± 1 dB sensitivity RGB LED Common Anode Connected to U-blox® Nina W102 GPIO Microchip® ATECC608A Crypto Cryptographic Co-Processor with Secure Hardware-Based Key Storage I2C, SWI Hardware Support for Symmetric Algorithms: SHA-256 & HMAC Hash including off-chip context save/restore AES-128: Encrypt/Decrypt, Galois Field Multiply for GCM Internal High-Quality NIST SP 800-90A/B/C Random Number Generator (RNG) Secure Boot Support: Full ECDSA code signature validation, optional stored digest/signature Optional communication key disablement prior to secure boot Encryption/Authentication for messages to prevent on-board attacks 14x Digital Pin 8x Analog Pin Micro USB UART, SPI, I2C Support Power 3 / 20 Arduino® Nano RP2040 Connect / Rev. 01 - 03/05/2021...
  • Page 4 Arduino® Nano RP2040 Connect Safety Information Class A 4 / 20 Arduino® Nano RP2040 Connect / Rev. 01 - 03/05/2021...

  • Page 5: Table Of Contents

    Arduino® Nano RP2040 Connect Contents 1 Application examples 2 Accessories 3 Related products 4 Recommended operating conditions 5 Power consumption 6 Block Diagram 7 Board Topology 7.1 Front View 7.2 Back View 8 Processor 9 WiFi/Bluetooth connectivity 10 6-axis IMU 11 External memory 12 Cryptography 13 Microphone 14 RGB LED 15 Power Tree 16 Board Operation 16.1 Getting started - IDE 16.2 Getting started - Arduino Web Editor 16.3 Getting started - Arduino IoT Cloud 16.4 Sample Sketches 16.5 Online resources 16.6 Board Recovery 17 J1 Micro USB 18 JP1 19 JP2 20 RP2040 SWD Pad 21 Nina W102 SWD Pad 22 Declaration of Conformity CE DoC (EU) 23 Declaration of Conformity to EU RoHS & REACH 211 01/19/2021 24 Conflict Minerals Declaration 25 FCC Caution 5 / 20 Arduino® Nano RP2040 Connect / Rev. 01 - 03/05/2021...
  • Page 6 Arduino® Nano RP2040 Connect 26 Company information 27 Reference Documentation 28 Revision History 6 / 20 Arduino® Nano RP2040 Connect / Rev. 01 - 03/05/2021...

  • Page 7: Application Examples

    Arduino® Nano RP2040 Connect The board 1 Application examples The Arduino® Nano RP2040 Connect can be adapted to a wide range of use cases thanks to the powerful microprocessor, range of onboard sensors and Nano form factor. Possible applications include: Edge Computing: Make use of the fast and high RAM microprocessor to run TinyML for anomaly detection, cough detection, gesture analysis and more. Wearable Devices: The small Nano footprint provides the possibility of providing machine learning to a range of wearble devices including sports trackers and VR controllers. Voice assistant: The Arduino® RP2040 Connect includes an omnidirrectional microphone that can act as your personal digital assitant and enable voice control for your projects. 2 Accessories Micro USB cable 15-pin 2.54mm male headers 15-pin 2.54mm stackable headers 3 Related products Gravity: Nano I/O Shield Arduino Nano Motor Carrier Ratings 4 Recommended operating conditions 7 / 20 Arduino® Nano RP2040 Connect / Rev. 01 - 03/05/2021...

  • Page 8: Power Consumption

    Arduino® Nano RP2040 Connect Symbol Description Unit Input voltage from VIN pad Input voltage from USB connector 4.75 5.25 3.3V output to user application 3.25 3.35 3.3V output current (including onboard IC) Input high-level voltage 2.31 Input low-level voltage 0.99 Current at VDD-0.4 V, output set high OH Max Current at VSS+0.4 V, output set low OL Max Output high voltage, 8 mA Output low voltage, 8 mA Operating Temperature °C 5 Power consumption Symbol Description Unit Power consumption with busy loop Power consumption in low power mode Maximum Power Consumption Functional overview 6 Block Diagram 8 / 20 Arduino® Nano RP2040 Connect / Rev. 01 - 03/05/2021...

  • Page 9: Board Topology

    Arduino® Nano RP2040 Connect VUSB MP2322 Regulator MP34DT06JTR QSPI MEMS Mic RP2040 16MB Flash USB DATA UART ECC608 LSM6DSOXTR NINA W102 RGB LED Authenticator 6-axis IMU WiFi/BT Nano RP2040 Connect P o w er M i c r o c o n t r o l l e L ED D a t a C o m m u n i c a t i o...

  • Page 10: Back View

    Arduino® Nano RP2040 Connect Front View of Arduino Nano RP2040 Connect Topology Ref. Description Ref. Description Ublox NINA-W102-00B Raspberry Pi RP2040 Microcontroller WiFi/Bluetooth Module ATECC608A-MAHDA-T Crypto IC MP2322GQH Step-Down Buck AT25SF128A-MHB-T 16MB Flash IC Regulator DSC6111HI2B-012.0000 MEMS MP34DT06JTR MEMS Oscillator Omnidirectional Microphone IC LSM6DSOXTR 6-axis IMU with Machine Male Micro USB Connector Learning Core Green Power On LED Builtin Orange LED RGB Common Anode LED Reset Button Analog Pin + D13 Pins Digital Pins 7.2 Back View 10 / 20 Arduino® Nano RP2040 Connect / Rev. 01 - 03/05/2021...

  • Page 11: Processor

    Arduino® Nano RP2040 Connect Back View of Arduino Nano RP2040 Connect Topology Ref. Description Ref. Description 3.3V jumper (connected) VUSB jumper (disconnected) 8 Processor The processor is based upon the new Raspberry Pi RP2040 silicon (U1). This microcontroller provides opportunities for low-power Internet of Things (IoT) development and embedded machine learning. Two symmetric Arm® Cortex®-M0+ clocked at 133MHz provide computation power for embedded machine learning and parallel processing with low power consumption. Six independant banks of 264 KB SRAM and 2MB are provided. Direct memory access provides fast interconnect between the processors and the memory that can be made inactive along with the core to enter a sleep state. Serial wire debug (SWD) is avaliable from boot via the pads under the board. The RP2040 runs at 3.3V and has an internal voltage regulator providing 1.1V. The RP2040 controls the peripherals and digital pins, as well as analog pins (A0-A3). The I2C connections on pins A4 (SDA) and A5 (SCL) are used for connecting to the onboards peripherals and are pulled up with a 4.7 kΩ resistor. SWD Clock line (SWCLK) and reset are also pulled up with a 4.7 kΩ resistor. An external MEMS oscillator (U7) running at 12MHz provides the clock pulse. Programmble IO helps to the implementation of arbitary communication protocol with minimal burden on the main processing cores. A USB 1.1 device interface is implemented on the RP2040 for uploading code. 11 / 20 Arduino® Nano RP2040 Connect / Rev. 01 - 03/05/2021...

  • Page 12: Wifi/Bluetooth Connectivity

    Arduino® Nano RP2040 Connect 9 WiFi/Bluetooth connectivity Wifi and Bluetooth connectivity is provided by the Nina W102 (U2) module. The RP2040 only has 4 analog pins, and the Nina is used to extend that to the full eight as is standard in the Arduino Nano form factor with another 4 12-bit analog inputs (A4-A7). Additionally, the common anode RGB LED is also controlled by the Nina W-102 module such that the LED is off when the digital state is HIGH and on when the digital state is LOW. The internal PCB antenna in the module eliminates the need for an external antenna. The Nina W102 module also includes a dual core Xtensa LX6 CPU that can also be programmed independantly of the RP2040 through the pads under the board using SWD. 10 6-axis IMU It is possible to obtain 3D gyroscope and 3D accelerometer data from the LSM6DSOX 6-axis IMU (U9). In addition to providing such data, it is also possible to do machine learning on the IMU for gesture detection. 11 External memory The RP2040 (U1) has access to an additional 16 MB of flash memory via a QSPI interface. The execute-in-place (XIP) feature of the RP2040 allows external flash memory to be addressed and accessed by the system as though it were internal memory, without first copying the code to internal memory. 12 Cryptography The ATECC608A Cryptographic IC (U4) provides secure boot capabilities alongside SHA and AES-128 encryption/decryption support for security in Smart Home and Industrial IoT (IIoT) applications. Additionally, a random number generator is also avaliable for use by the RP2040. 13 Microphone The MP34DT06J microphone is connected via a PDM interface to the RP2040. The digital MEMS microphone is omnidirectional and operate via a capacitive sensing element with a high (64 dB) signal to noise ratio. The sensing element, capable of detecting acoustic waves, is manufactured using a specialized silicon micromachining process dedicated to produce audio sensors. 12 / 20 Arduino® Nano RP2040 Connect / Rev. 01 - 03/05/2021...

  • Page 13: Rgb Led

    Arduino® Nano RP2040 Connect 14 RGB LED The RGB LED (DL3) is a common anode LED that is connected to the Nina W102 module. The LED are off when the digital state is HIGH and on when the digital state is LOW. 15 Power Tree Power Tree of Arduino Nano RP2040 Connect Topology The Arduino Nano RP2040 Connect can be powered by either the Micro USB port (J1) or alternatively via VIN on JP2. An onboard buck converter provides 3V3 to the RP2040 13 / 20 Arduino® Nano RP2040 Connect / Rev. 01 - 03/05/2021...

  • Page 14: Board Operation

    Arduino® Nano RP2040 Connect microcontroller and all other peripherals. Additionally, the RP2040 also has an internal 1V8 regulator. 16 Board Operation 16.1 Getting started - IDE If you want to program your Arduino® Nano RP2040 Connect while offline you need to install the Arduino® Desktop IDE [1] To connect the Arduino® Edge control to your computer, you’ll need a micro USB cable. This also provides power to the board, as indicated by the LED. 16.2 Getting started - Arduino Web Editor All Arduino® boards, including this one, work out-of-the-box on the Arduino® Web Editor [2], by just installing a simple plugin. The Arduino® Web Editor is hosted online, therefore it will always be up-to-date with the latest features and support for all boards. Follow [3] to start coding on the browser and upload your sketches onto your board. 16.3 Getting started - Arduino IoT Cloud All Arduino® IoT enabled products are supported on Arduino® IoT Cloud which allows you to Log, graph and analyze sensor data, trigger events, and automate your home or business. 16.4 Sample Sketches Sample sketches for the Arduino® Nano RP2040 Connect can be found either in the “Examples” menu in the Arduino® IDE or in the “Documentation” section of the Arduino website [4] 16.5 Online resources Now that you have gone through the basics of what you can do with the board you can explore the endless possibilities it provides by checking exciting projects on ProjectHub [5], the Arduino® Library Reference [6] and the online store [7] where you will be able to complement your board with sensors, actuators and more. 14 / 20 Arduino® Nano RP2040 Connect / Rev. 01 - 03/05/2021...

  • Page 15: Board Recovery

    Arduino® Nano RP2040 Connect 16.6 Board Recovery All Arduino boards have a built-in bootloader which allows flashing the board via USB. In case a sketch locks up the processor and the board is not reachable anymore via USB it is possible to enter bootloader mode by double-tapping the reset button right after power up. Connector Pinouts 17 J1 Micro USB Function Type Description VBUS Power 5V USB Power Differential USB differential data - Differential USB differential data + Digital Unused Power Ground 18 JP1 Function Type Description Digital UART TX / Digital Pin 1 Digital UART RX / Digital Pin 0 Digital Reset Power Ground Digital Digital Pin 2 Digital Digital Pin 3 Digital Digital Pin 4 Digital...

  • Page 16: Jp2

    Arduino® Nano RP2040 Connect 19 JP2 Function Type Description Digital Digital Pin 13 3.3V Power 3.3V Power Analog Analog Analog Pin 0 Analog Analog Pin 1 Analog Analog Pin 2 Analog Analog Pin 3 Analog Analog Pin 4 Analog Analog Pin 5 Analog Analog Pin 6 Analog Analog Pin 7 VUSB Power USB Input Voltage Digital BOOTSEL Power Ground Power Voltage Input Note: The analog reference voltage is fixed at +3.3V. A0-A3 are connected to the RP2040's ADC. A4-A7 are connected to the Nina W102 ADC. Additionally, A4 and A5 are shared with the I2C bus of the RP2040 and are each pulled up with 4.7 KΩ resistors. 20 RP2040 SWD Pad...

  • Page 17: Declaration Of Conformity Ce Doc (Eu)

    Arduino® Nano RP2040 Connect Mechanical Information Power Tree of Arduino Nano RP2040 Connect Topology Certifications 22 Declaration of Conformity CE DoC (EU) We declare under our sole responsibility that the products above are in conformity with the essential requirements of the following EU Directives and therefore qualify for free movement within markets comprising the European Union (EU) and European Economic Area (EEA). 23 Declaration of Conformity to EU RoHS & REACH 211 01/19/2021 Arduino boards are in compliance with RoHS 2 Directive 2011/65/EU of the European Parliament and RoHS 3 Directive 2015/863/EU of the Council of 4 June 2015 on the restriction of the use of certain hazardous substances in electrical and electronic equipment. 17 / 20 Arduino® Nano RP2040 Connect / Rev. 01 - 03/05/2021...

  • Page 18: Conflict Minerals Declaration

    Arduino® Nano RP2040 Connect Substance Maximum Limit (ppm) Lead (Pb) 1000 Cadmium (Cd) Mercury (Hg) 1000 Hexavalent Chromium (Cr6+) 1000 Poly Brominated Biphenyls (PBB) 1000 Poly Brominated Diphenyl ethers (PBDE) 1000 Bis(2-Ethylhexyl} phthalate (DEHP) 1000 Benzyl butyl phthalate (BBP) 1000 Dibutyl phthalate (DBP) 1000 Diisobutyl phthalate (DIBP) 1000 Exemptions : No exemptions are claimed. Arduino Boards are fully compliant with the related requirements of European Union Regulation (EC) 1907 /2006 concerning the Registration, Evaluation, Authorization and Restriction of Chemicals (REACH). We declare none of the SVHCs (https://echa.europa.eu/web/guest/candidate-list-table), the Candidate List of Substances of Very High Concern for authorization currently released by ECHA, is present in all products (and also package) in quantities totaling in a concentration equal or above 0.1%. To the best of our knowledge, we also declare that our products do not contain any of the substances listed on the "Authorization List" (Annex XIV of the REACH regulations) and Substances of Very High Concern (SVHC) in any significant amounts as specified by the Annex XVII of Candidate list published by ECHA (European Chemical Agency) 1907 /2006/EC. 24 Conflict Minerals Declaration As a global supplier of electronic and electrical components, Arduino is aware of our obligations with regards to laws and regulations regarding Conflict Minerals, specifically the Dodd-Frank Wall Street Reform and Consumer Protection Act, Section 1502. Arduino does not directly source or process conflict minerals such as Tin, Tantalum, Tungsten, or Gold. Conflict minerals are contained in our products in the form of solder, or as a component in metal alloys. As part of our reasonable due diligence Arduino has contacted component suppliers within our supply chain to verify their continued compliance with the regulations.
  • Page 19 Arduino® Nano RP2040 Connect (1) This device may not cause harmful interference (2) this device must accept any interference received, including interference that may cause undesired operation. FCC RF Radiation Exposure Statement: 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with RF radiation exposure limits set forth for an uncontrolled environment. 3. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. English: User manuals for licence-exempt radio apparatus shall contain the following or equivalent notice in a conspicuous location in the user manual or alternatively on the device or both. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference (2) this device must accept any interference, including interference that may cause undesired operation of the device. French: Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’ appareil nedoit pas produire de brouillage (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. IC SAR Warning: English This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. French: Lors de l’ installation et de l’ exploitation de ce dispositif, la distance entre le radiateur et le corps est d ’au moins 20 cm. Important: The operating temperature of the EUT can’t exceed 85℃ and shouldn’t be lower than -40℃. Hereby, Arduino S.r.l. declares that this product is in compliance with essential requirements and other relevant provisions of Directive 201453/EU. This product is allowed to be used in all EU member states. 19 / 20 Arduino® Nano RP2040 Connect / Rev. 01 - 03/05/2021...
  • Page 20 Arduino® Nano RP2040 Connect Frequency bands Maximum output power (ERP) 2400-2483.5 Mhz 17 dBm 26 Company information Company name Arduino S.r.l. Company Address Via Ferruccio Pelli 14, 6900 Lugano, TI (Ticino), Switzerland 27 Reference Documentation Link Arduino IDE (Desktop) https://www.arduino.cc/en/Main/Software Arduino IDE (Cloud) https://create.arduino.cc/editor Cloud IDE Getting https://create.arduino.cc/projecthub/Arduino_Genuino/getting- Started started-with-arduino-web-editor-4b3e4a Arduino Website https://www.arduino.cc/ https://create.arduino.cc/projecthub? Project Hub by=part&part_id=11332&sort=trending PDM (microphone) https://www.arduino.cc/en/Reference/PDM Library WiFiNINA (WiFi, W102) https://www.arduino.cc/en/Reference/WiFiNINA Library ArduinoBLE (Bluetooth, https://www.arduino.cc/en/Reference/ArduinoBLE W-102) Library IMU Library https://www.arduino.cc/en/Reference/Arduino_LSM6DS3 Online Store https://store.arduino.cc/ 28 Revision History Date...
