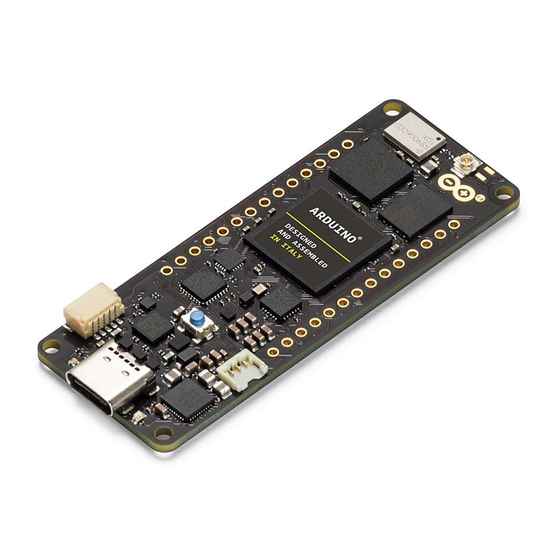

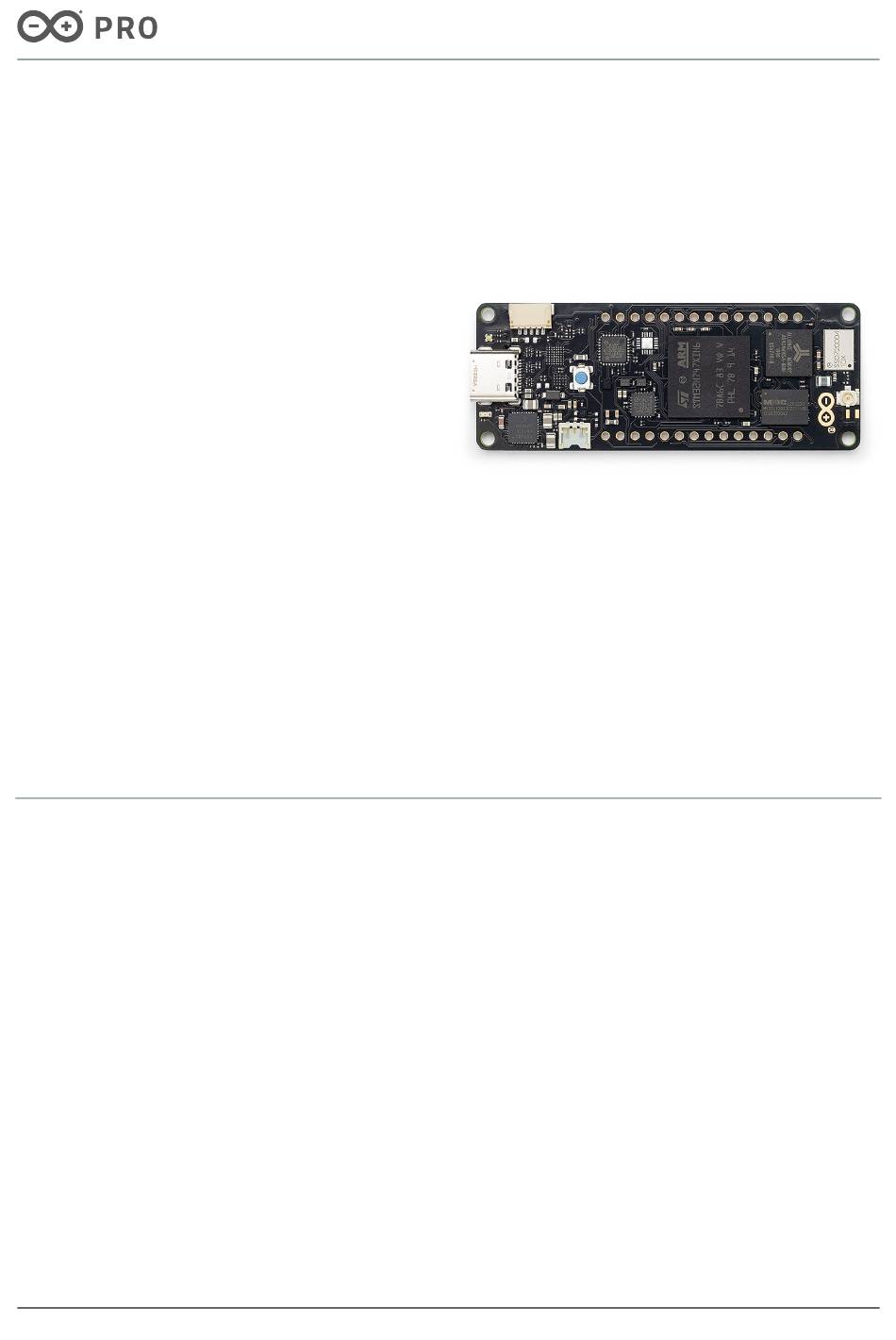

Arduino® Portenta H7 Lite Connected
Product Reference Manual
SKU: ABX00046
Description
Portenta H7 family runs high level codes along with real time tasks thanks to the two processors that makes it
possible to run tasks in parallel. For example, it is possible to execute Arduino compiled code along with
MicroPython one simultaneously, and have both cores to communicate with one another.
Target Areas:
Laboratory equipment, Computer vision
1 / 20
Arduino® Portenta H7 Lite Connected
Modified: 11/05/2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Portenta H7 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Arduino Portenta H7 Series

Summary of Contents for Arduino Portenta H7 Series

  • Page 1 Portenta H7 family runs high level codes along with real time tasks thanks to the two processors that makes it possible to run tasks in parallel. For example, it is possible to execute Arduino compiled code along with MicroPython one simultaneously, and have both cores to communicate with one another.
  • Page 2 Arduino® Portenta H7 Lite Connected Name Portenta H7 Lite Connected ABX00046 Preview Security ATECC608 Connectivity Ethernet PHY / Wi-Fi / Bluetooth® Low Energy Memory 8 MB / 16 MB Power Li-Po Single Cell 3.7V, 700mAh Minimum 2 / 20 Arduino® Portenta H7 Lite Connected...

  • Page 3: Table Of Contents

    Arduino® Portenta H7 Lite Connected CONTENTS 1 Features 2 Ratings 2.1 Recommended Operating Conditions 2.2 Power Consumption 2.3 Block Diagram 3 Connector Pinouts 3.1 USB-C 3.2 High Density Connector 3.3 Wake Up Signals/External Relay Commands 4 Application Examples 4.1 Accessories 5 Functional Overview 5.1 Board Topology...

  • Page 4: Features

    Arduino® Portenta H7 Lite Connected 1 Features Component Details ST STM32H747XI Processor Dual Core Arm® Cortex®-M7 core at up to 480 MHz with double-precision FPU and 16K data + 16K instruction L1 cache Arm® 32-bit Cortex®-M4 core at up to...
  • Page 5 Arduino® Portenta H7 Lite Connected Component Details Up to 35 communication 4× I2Cs FM+ interfaces (SMBus/PMBus) peripherals 4× USARTs/4x UARTs (ISO7816 interface, LIN, IrDA, up to 12.5 Mbit/s) and 1x LPUART 6× SPIs, 3 with muxed duplex I2S audio class accuracy via internal audio PLL or...
  • Page 6 Arduino® Portenta H7 Lite Connected Component Details 2× 32-bit timers with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input (up to 240 MHz) 2× 16-bit advanced motor control timers (up to 240 MHz) 10× 16-bit general-purpose timers (up to 240 MHz) 5×...
  • Page 7 Arduino® Portenta H7 Lite Connected Component Details ECDH: FIPS SP800-56A Elliptic Curve Diffie-Hellman NIST standard P256 elliptic curve support Hardware support for symmetric algorithms SHA-256 & HMAC hash including off-chip context save/restore AES-128: encrypt/decrypt, galois field multiply for GCM Networking key management...

  • Page 8: Ratings

    Arduino® Portenta H7 Lite Connected Component Details Programmable I/O voltage Integrated Li-Po/Li-lon Battery charger 2 Ratings 2.1 Recommended Operating Conditions Symbol Description Conservative thermal limits for the whole board: -40 °C (-40 °F) 85 °C (185 °F) 2.2 Power Consumption...

  • Page 9: Connector Pinouts

    Arduino® Portenta H7 Lite Connected 3 Connector Pinouts USB-C Pinout 3.1 USB-C Description Description TX1 +/- High speed data path (TX for Cable Ground TX2 +/- USB, or RX for DP Alt Mode) RX1 +/- High speed data path (TX for...
  • Page 10 Arduino® Portenta H7 Lite Connected High density connectors pinouts Description Description High Density High Density Connector Connector High Density High Density Connector Connector High Density High Density DMIC Connector Connector High Density VSYS VIN V-SDCARDVCC VBUS USB ADC- I2C0 I2C1 I2C2I2S...

  • Page 11: Wake Up Signals/External Relay Commands

    Arduino® Portenta H7 Lite Connected Description Description High Density High Density GPIO SPI1 Connector Connector SWDIOSWCK High Density High Density Connector Connector High Density RESET Other Pin Connector 3.3 Wake Up Signals/External Relay Commands MKR format Headers pinout 11 / 20 Arduino®...

  • Page 12: Application Examples

    Arduino® Portenta H7 Lite Connected 4 Application Examples Due to the dual core processing, the Portenta supports a wide array of applications. 4.1 Accessories Portenta Vision shield USB 2.0 Cable Type A/B Portenta Breakout Board 5 Functional Overview 5.1 Board Topology Depending on the variant, some of the components does not apply.

  • Page 13: Power Tree

    Arduino® Portenta H7 Lite Connected 5.2 Power Tree Portenta H7 Power Tree 13 / 20 Arduino® Portenta H7 Lite Connected Modified: 11/05/2022...

  • Page 14: Mechanical Information

    Arduino® Portenta H7 Lite Connected 6 Mechanical Information 6.1 Board Outline Board outline 6.2 Mounting Holes Mounting outline 14 / 20 Arduino® Portenta H7 Lite Connected Modified: 11/05/2022...

  • Page 15: Connector Positions

    Arduino® Portenta H7 Lite Connected 6.3 Connector Positions Connectors positions top Connectors positions bottom 15 / 20 Arduino® Portenta H7 Lite Connected Modified: 11/05/2022...

  • Page 16: Certifications

    Arduino® Portenta H7 Lite Connected 7 Certifications Cert H7 Lite Connected EN 301489-1, EN 301489-17, CE (EU) EN 300328, EN 62368-1, EN 62311 WEEE (EU) 2011/65/(EU) RoHS (EU) 2015/863/(EU) REACH (EU) UKCA (UK) RCM (RCM) FCC (US) Radio: Part 15-247 MPE: Part 2.

  • Page 17: Declaration Of Conformity To Eu Rohs & Reach 211 01/19/2021

    ECHA (European Chemical Agency) 1907 /2006/EC. 7.3 Conflict Minerals Declaration As a global supplier of electronic and electrical components, Arduino is aware of our obligations with regards to laws and regulations regarding Conflict Minerals, specifically the Dodd-Frank Wall Street Reform and Consumer Protection Act, Section 1502.

  • Page 18: Fcc Caution

    Important: The operating temperature of the EUT can’t exceed 85℃ and shouldn’t be lower than -40℃. Hereby, Arduino S.r.l. declares that this product is in compliance with essential requirements and other relevant provisions of Directive 2014/53/EU. This product is allowed to be used in all EU member states.

  • Page 19: Company Information

    Arduino® Portenta H7 Lite Connected Host product manufacturers that they need to provide a physical or e-label stating, “ContainsFCCID:2AN9S- ABX00046” with their finished product. Only those antennas with same type and lesser gain filed under this FCC ID can be used with this device.The host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification.The final host product still requires Part 15 Subpart B compliance...

  • Page 20: Reference Documentation

    Arduino® Portenta H7 Lite Connected 10 Reference Documentation Reference Link Arduino IDE (Desktop) https://www.arduino.cc/en/Main/Software 11 Revision History Date Revision Changes 27/12/2021 First Release 11/03/2022 Antenna details and frequency band updates 20 / 20 Arduino® Portenta H7 Lite Connected Modified: 11/05/2022...
