1 The Board

As all Nano form factor boards, Nano 33 BLE Sense does not have a battery charger but can be powered through USB or headers.
NOTE: Arduino Nano 33 BLE Sense only supports 3.3V I/Os and is NOT 5V tolerant so please make sure you are not directly connecting 5V signals to this board or it will be
damaged. Also, as opposed to Arduino Nano boards that support 5V operation, the 5V pin does NOT supply voltage but is rather connected, through a jumper, to the USB
power input.

1.1 Ratings

1.2 Recommended Operating Conditions

Symbol Description
Conservative thermal limits for the whole board:

1.3 Power Consumption

Symbol Description
PBL Power consumption with busy loop
PLP Power consumption in low power mode
PMAX Maximum Power Consumption

1.4 Functional Overview

1.5 Board topology

Top:
Ref. Description
U1 NINA-B306 Module BLE 5.0 Module
U2 LSM9DS1TR Sensor IMU
U3 MP34DT06JTR Mems Microphone
U4 ATECC608A Crypto chip
U5 APDS-9660 Ambient Module
Bottom:
5 / 12

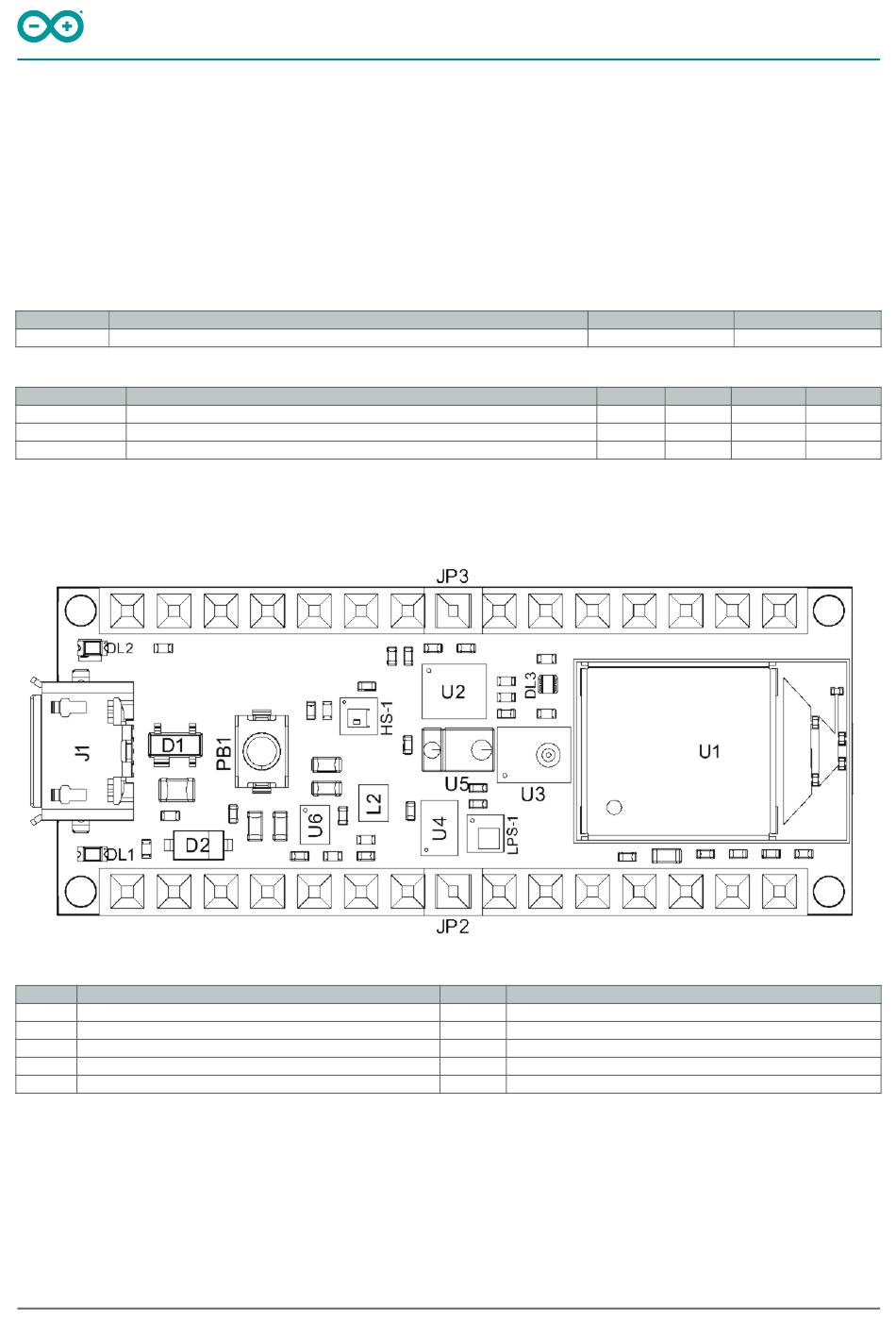

Board topology top
Arduino® Nano 33 BLE Sense / Rev. 01 - 03/12/2021
Arduino® Nano 33 BLE Sense
Min
-40 °C ( 40 °F)
Min
Ref. Description
U6 MP2322GQH Step Down Converter
PB1 IT-1185AP1C-160G-GTR Push button
HS-1 HTS221 Humidity Sensor
DL1 Led L
DL2 Led Power
Max
85°C ( 185 °F)
Typ Max Unit
TBC mW
TBC mW
TBC mW
