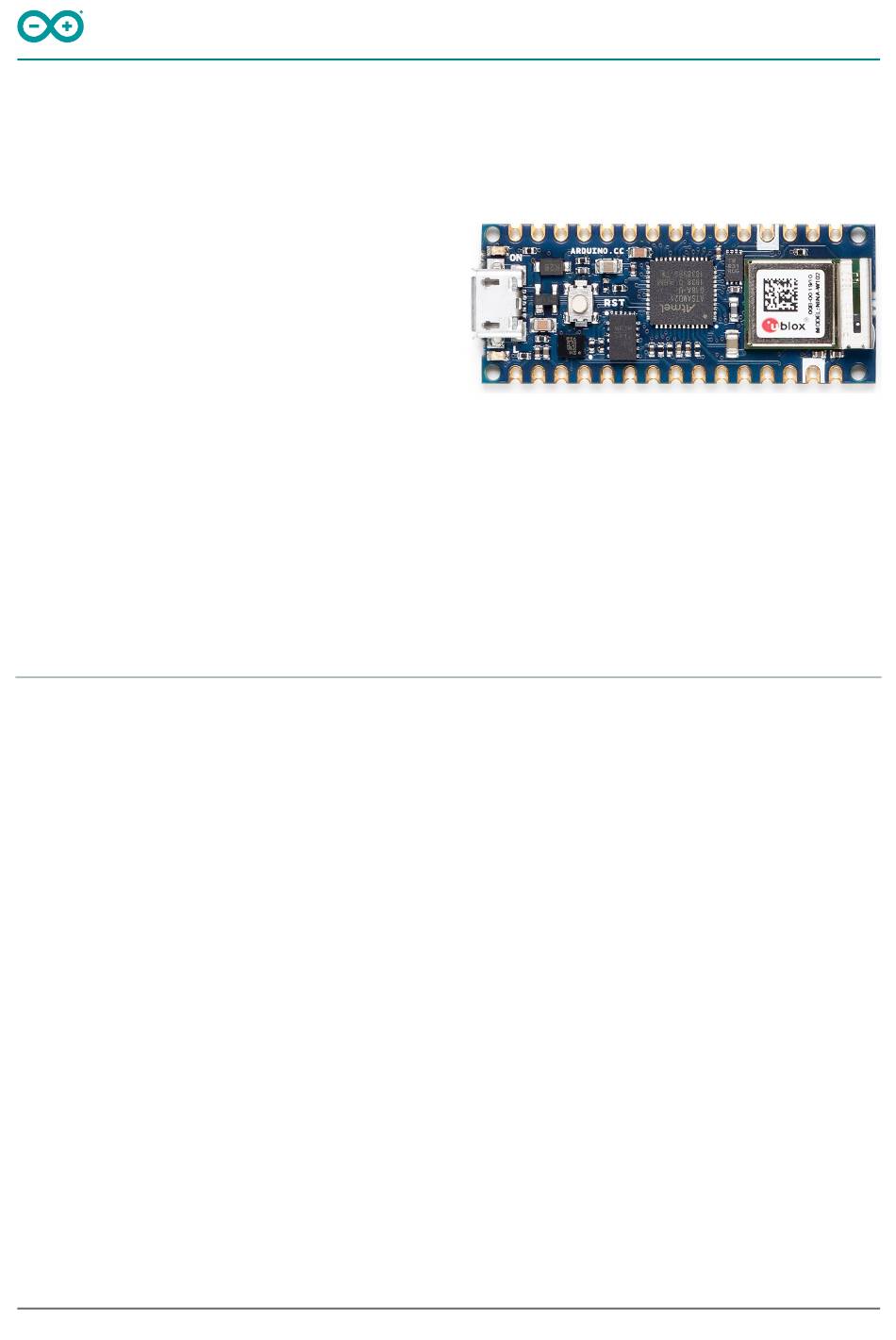

Arduino® Nano 33 IoT
Product Reference Manual
SKU: ABX00027
Description

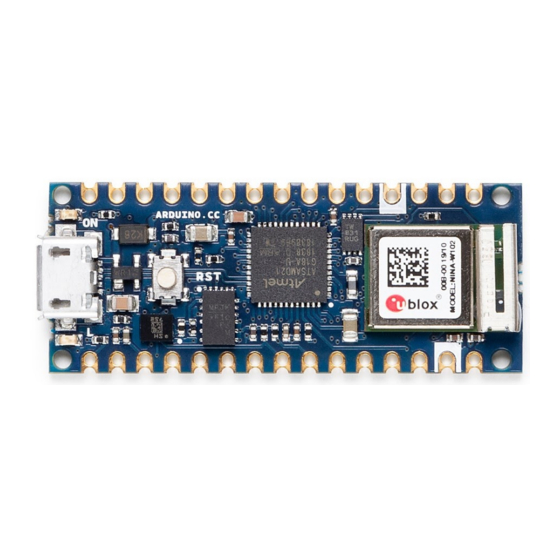

Nano 33 IoT is a miniature sized module containing a Cortex M0+ SAMD21 processor, a WiFi+BT module based on
ESP32, a crypto chip which can securely store certificates and pre-shared keys and a 6 axis IMU. The module can
either be mounted as a DIP component (when mounting pin headers), or as a SMT component, directly soldering it
via the castellated pads.
Target areas:
Maker, enhancements, basic IoT application scenarios
1 / 18
Arduino® Nano 33 IoT / Rev. 01 - 06/12/2021
Advertisement
Table of Contents
Related Manuals for Arduino Nano 33 IoT
Summary of Contents for Arduino Nano 33 IoT
- Page 1 Description Nano 33 IoT is a miniature sized module containing a Cortex M0+ SAMD21 processor, a WiFi+BT module based on ESP32, a crypto chip which can securely store certificates and pre-shared keys and a 6 axis IMU. The module can either be mounted as a DIP component (when mounting pin headers), or as a SMT component, directly soldering it via the castellated pads.
- Page 2 6x SERCOM (USART, I C, SPI, LIN) Two channel I 12 bit 350ksps ADC (up to 16 bit with oversampling) 10 bit 350ksps DAC External Interrupt Controller (up to 16 lines) 2 / 18 Arduino® Nano 33 IoT / Rev. 01 - 06/12/2021...
- Page 3 Protected storage for up to 16 keys, certificates or data ECDH: FIPS SP800-56A Elliptic Curve Diffie-Hellman NIST standard P256 elliptic curve support SHA-256 & HMAC hash including off-chip context save/restore AES-128 encrypt/decrypt, galois field multiply for GCM 3 / 18 Arduino® Nano 33 IoT / Rev. 01 - 06/12/2021...
- Page 4 Arduino® Nano 33 IoT LSM6DSL (6 axis IMU) Always-on 3D accelerometer and 3D gyroscope Smart FIFO up to 4 KByte based ±2/±4/±8/±16 g full scale ±125/±250/±500/±1000/±2000 dps full scale 4 / 18 Arduino® Nano 33 IoT / Rev. 01 - 06/12/2021...
-
Page 5: Table Of Contents
7.1 Declaration of Conformity CE DoC (EU) 7.2 Declaration of Conformity to EU RoHS & REACH 211 01/19/2021 7.3 Conflict Minerals Declaration 8 FCC Caution 9 Company Information 10 Reference Documentation 11 Revision History 5 / 18 Arduino® Nano 33 IoT / Rev. 01 - 06/12/2021... -
Page 6: The Board
IoT application/API, you will receive real time values. Air drum: A quick and fun project is to create a small air drum. Connect your Nano 33 IoT and upload your sketch from the Create Web Editor and start creating beats with your audio workstation of your choice. -
Page 7: Functional Overview
3.1 Board topology Board topology top Ref. Description Ref. Description ATSAMD21G18A Controller LSM6DSOXTR IMU Sensor NINA-W102-00B WiFi/BLE Module ATECC608A-MAHDA-T Crypto Chip Micro USB Connector IT-1185-160G-GTR Push button Board topology bottom 7 / 18 Arduino® Nano 33 IoT / Rev. 01 - 06/12/2021... -
Page 8: Processor
I C peripherals (IMU and Crypto). NOTE: As opposed to other Arduino Nano boards, pins A4 and A5 have an internal pull up and default to be used as an I C Bus so usage as analog inputs is not recommended. -
Page 9: Crypto
3.4 Crypto The crypto chip in Arduino IoT boards is what makes the difference with other less secure boards as it provides a secure way to store secrets (such as certificates) and accelerates secure protocols while never exposing secrets in plain text. -
Page 10: Board Operation
4.1 Getting started - IDE If you want to program your Arduino 33 IoT while offline you need to install the Arduino Desktop IDE [1] To connect the Arduino 33 IoT to your computer, you’ll need a Micro-B USB cable. This also provides power to the board, as indicated by the LED. -
Page 11: Board Recovery
4.6 Board Recovery All Arduino boards have a built-in bootloader which allows flashing the board via USB. In case a sketch locks up the processor and the board is not reachable anymore via USB it is possible to enter bootloader mode by double- tapping the reset button right after power up. -
Page 12: Usb
GPIO; can be used as PWM Digital GPIO D5/PWM Digital GPIO; can be used as PWM D6/PWM Digital GPIO, can be used as PWM Digital GPIO Digital GPIO 12 / 18 Arduino® Nano 33 IoT / Rev. 01 - 06/12/2021... -
Page 13: Debug
The board measures are mixed between metric and imperial. Imperial measures are used to maintain a 100 mil pitch grid between pin rows to allow them to fit a breadboard whereas board length is Metric. Layout 13 / 18 Arduino® Nano 33 IoT / Rev. 01 - 06/12/2021... -
Page 14: Connector Positions
The view below is from top however it shows Debug connector pads which are on the bottom side. Highlighted pins are pin 1 for each connector’ Top view: Top side connectors Bottom view: Bottom side connectors 14 / 18 Arduino® Nano 33 IoT / Rev. 01 - 06/12/2021... -
Page 15: Certifications
7.2 Declaration of Conformity to EU RoHS & REACH 211 01/19/2021 Arduino boards are in compliance with RoHS 2 Directive 2011/65/EU of the European Parliament and RoHS 3 Directive 2015/863/EU of the Council of 4 June 2015 on the restriction of the use of certain hazardous substances in electrical and electronic equipment. -
Page 16: Conflict Minerals Declaration
Arduino® Nano 33 IoT 7.3 Conflict Minerals Declaration As a global supplier of electronic and electrical components, Arduino is aware of our obligations with regards to laws and regulations regarding Conflict Minerals, specifically the Dodd-Frank Wall Street Reform and Consumer Protection Act, Section 1502. -
Page 17: Company Information
Important: The operating temperature of the EUT can’t exceed 85℃ and shouldn’t be lower than -40℃. Hereby, Arduino S.r.l. declares that this product is in compliance with essential requirements and other relevant provisions of Directive 2014/53/EU. This product is allowed to be used in all EU member states. -
Page 18: Revision History
Arduino® Nano 33 IoT 11 Revision History Date Revision Changes 04/15/2021 General datasheet updates 18 / 18 Arduino® Nano 33 IoT / Rev. 01 - 06/12/2021...
