Arduino® Nano Matter

6.3 Board Peripherals and Actuators

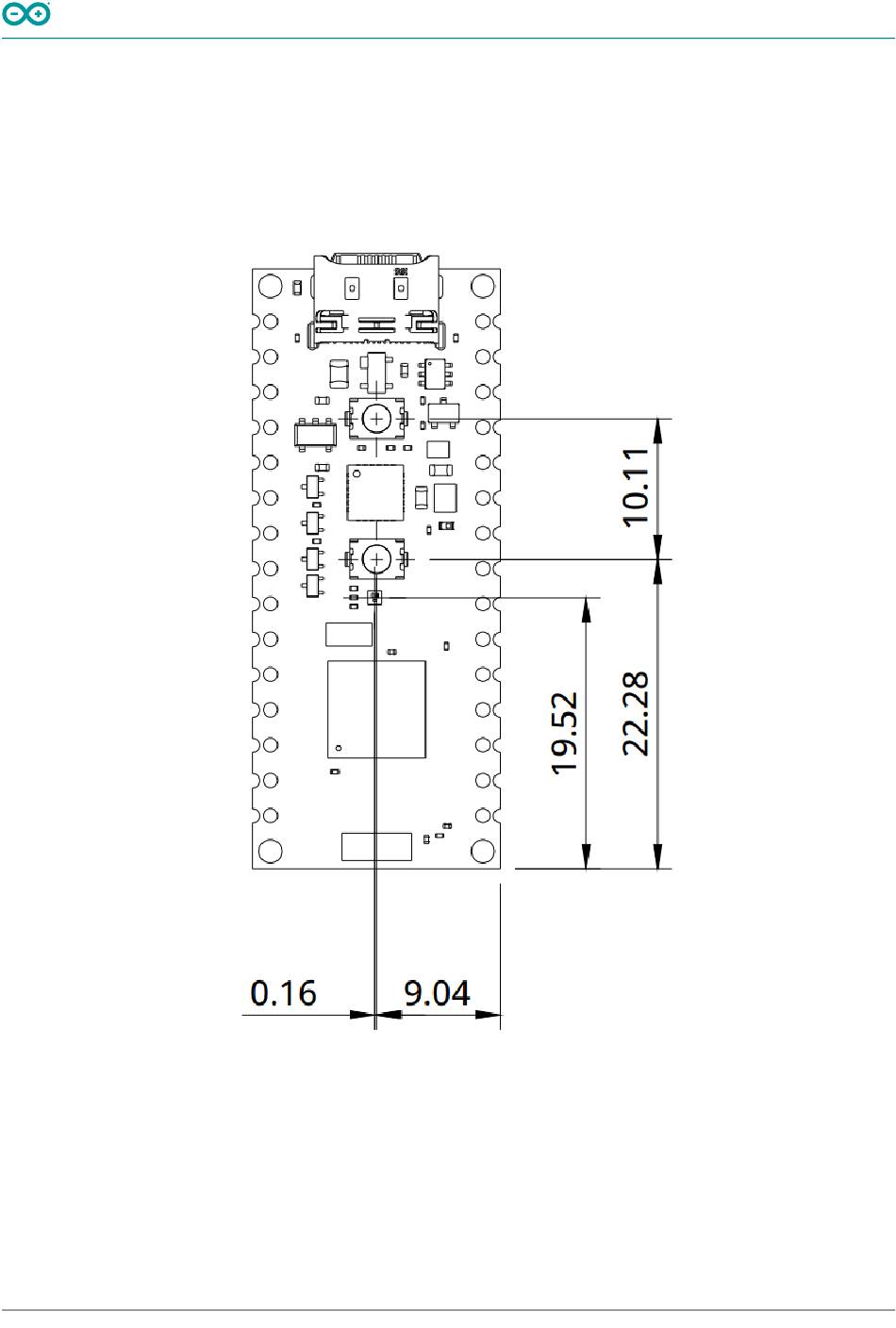

The Nano Matter has one push button and one RGB LED available for the user; both the push button and the RGB
LED are placed on the top side of the board. Their placement is shown in the figure below; all the dimensions are in
mm.
The Nano Matter is designed to be usable as a surface-mount module and presents a dual inline package (DIP)
format with the Nano-styled header connectors on a 2.54 mm pitch grid with 1 mm holes.
13 / 17 Arduino® Nano Matter Modified: 11/07/2024
