6.2 Board Connectors

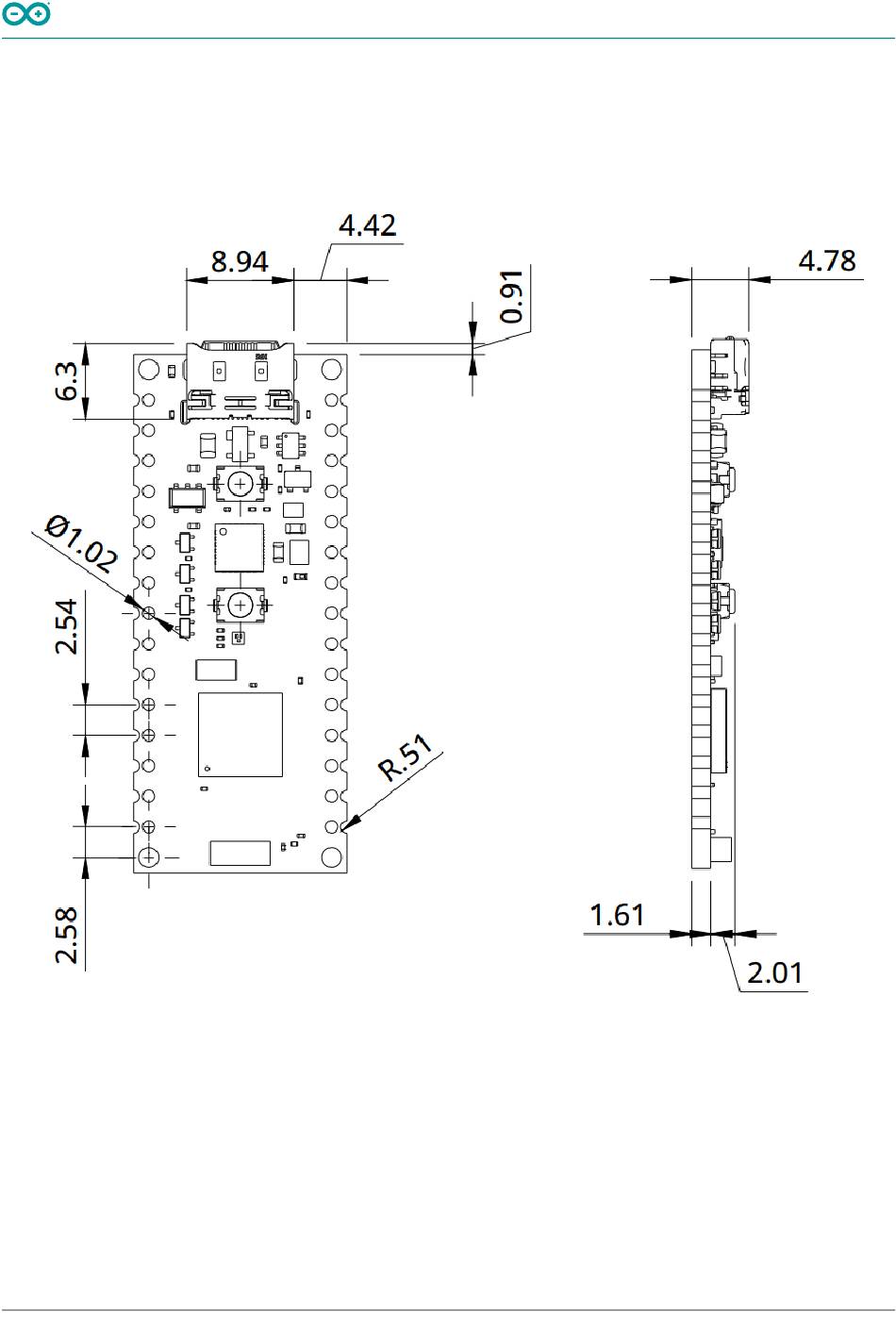

Connectors of the Nano Matter are placed on the top side of the board; their placement is shown in the figure
below; all the dimensions are in mm.
The Nano Matter was designed to be usable as a surface-mount module and presents a dual inline package (DIP)
format with the Nano-styled header connectors on a 2.54 mm pitch grid with 1 mm holes.
