Arduino® Portenta H7

6 Mechanical Information

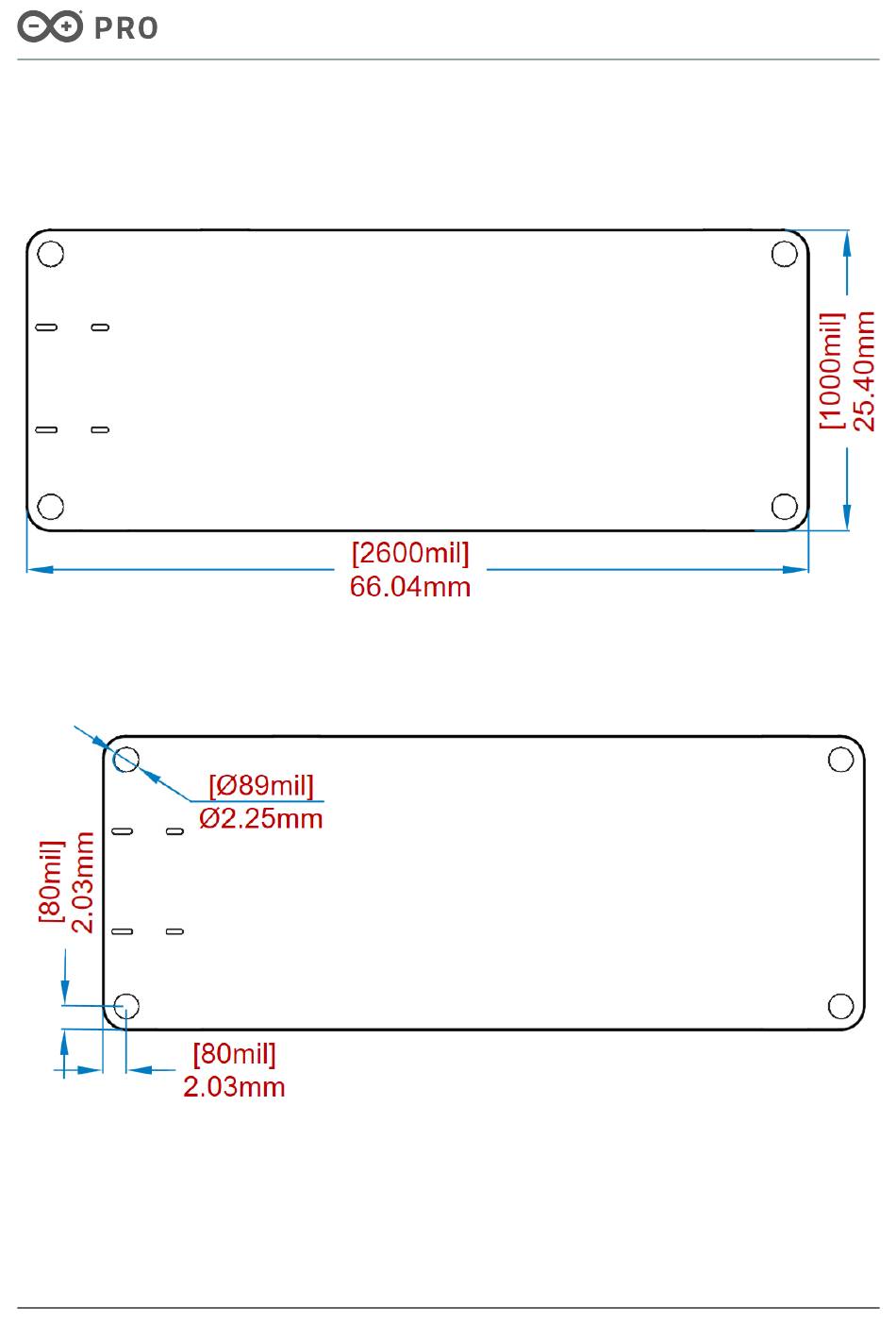

6.1 Board Outline

Board outline

6.2 Mounting Holes

Mounting outline
15 / 21
Arduino® Portenta H7
Modified: 25/11/2022
