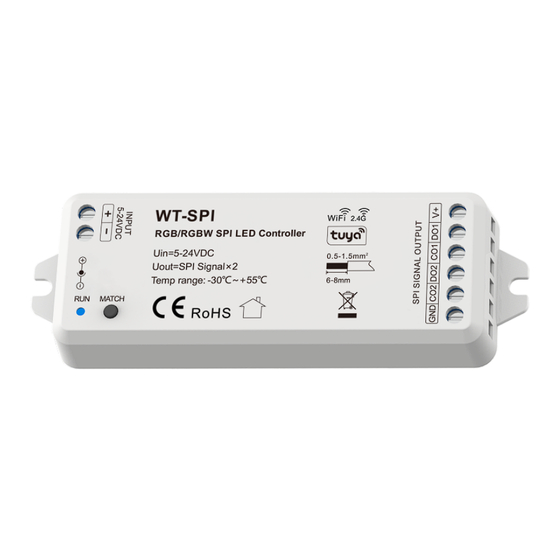

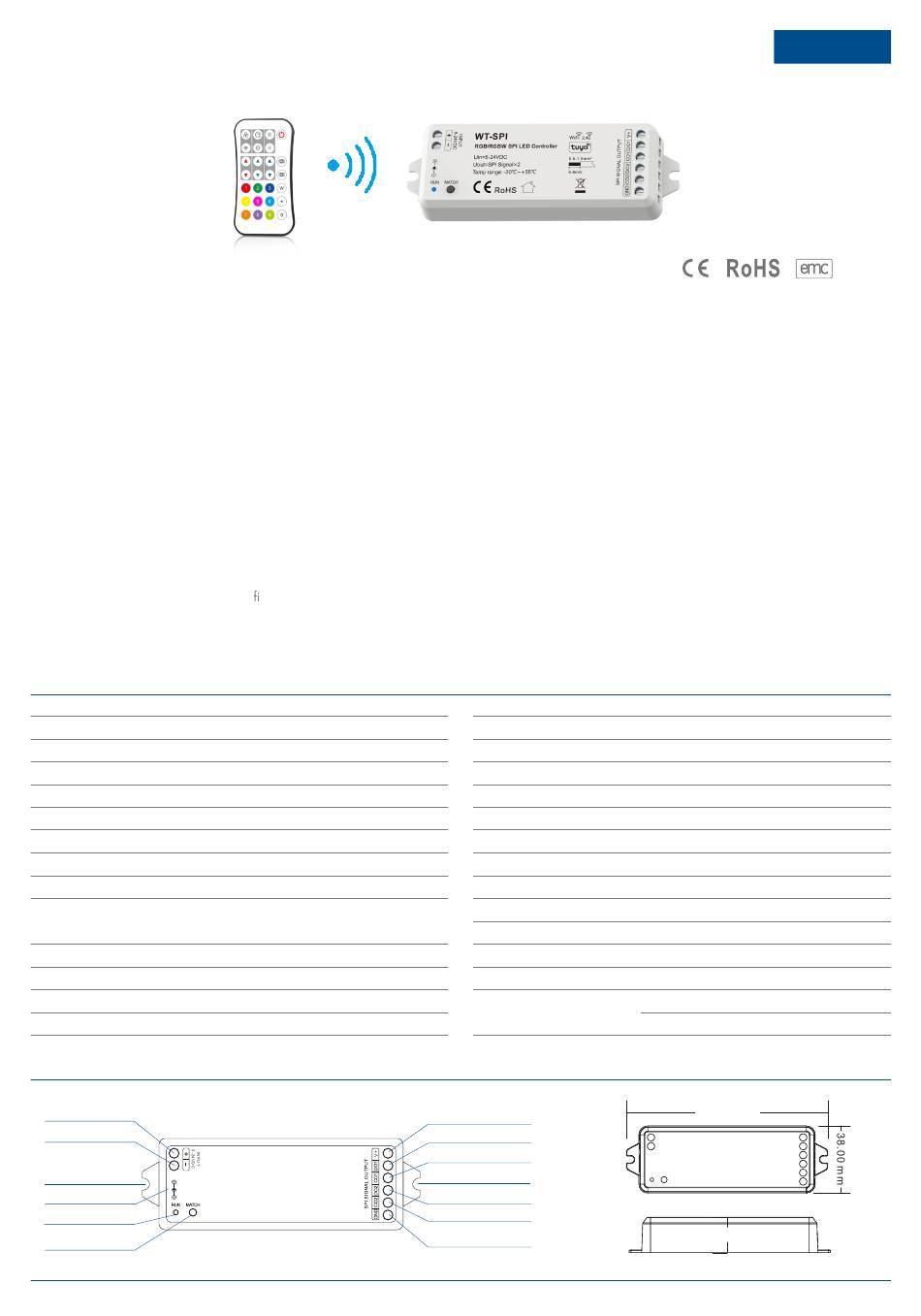

WT-SPI+R9
RGB/RGBW LED SPI Controller Set
WT-SPIcontrolleris compatiblewith49kindsofchips: TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, SK6813,
UCS2903, UCS2909, UCS2912, WS2811, WS2812, WS2813, WS2815, TM1829,TLS3001, TLS3002, GW6205, MBI6120, TM1814B(RGBW),
SK6812(RGBW), WS2813(RGBW), WS2814(RGBW), UCS8904B(RGBW), LPD6803, LPD1101,D705, UCS6909, UCS6912, LPD8803, LPD8806,
WS2801, WS2803, P9813, SK9822, TM1914A, GS8206, GS8208, UCS2904, SM16804, SM16825, SM16714(RGBW), UCS2603, UCS5603,
SM16714D, SM16703P, UCS7604(RGBW), UCS7804(RGBW).
By the RF remote controls you can select a variety of dynamic lighting effects, adjust changing speed and brightness, set control pixels quantity,
set the IC type and R/G/B/W color sequence, etc.
Or bytheTuya App/SmartlifeAPP, youcanperformvoice control, music rhythm, drawing style segmented color adjustmentof light strips,
select various dynamic or customscene modes, set the number of pixels, etc.
Features
● Multi-pixel RGB/RGBW LED strip controller with SPI signal output, RF 2.4G remote + Tuya smart APP cloud control.
● Compatible with 49 types of RGB or RGBW LED light strips, the chip type and R/G/B/W color order can be set through the R9 remote control.
● Set the 40 dynamic change modes through the R9 remote control, include horse-race, chase, flow, trail or gradual change style.
● Voice control, support for Amazon Alexa, Google Assistant, Tmall Genie and Xiaodu smart speakers.
● Painted segment color mixing: full color lling, color pencil segment painting, eraser segment light off.
● Rich dynamic effects: 44 default and 10+ custom dynamic scenarios, 16 variations.
● 3 APP music rhythms.
Technical Parameters
LEDRemote
Output signal
RF 2.4GHz
(
Work voltage
3VDC(CR2032)
＜5mA
Work current
Standby current
＜2μA
Standby time
2 years
Remote distance
30m(Barrier-free space)
Size
L107×W58.5×H9mm
SafetyandEMC
EN IEC 55015:2019+A11:2020
EN 61547:2009
EMCstandard(EMC)
EN IEC 61000-3-2:2019+A11:2021
EN 61000-3-3:2013+A11:2019
EN 61347-1:2015+A1:2021
Safetystandard
EN 61347-2-13:2014+A1:2017
Certification
CE,EMC,LVD
Warranty
Warranty
5 years
Mechanical Structures and Installations
Power input +
Power input -
Installation rack
DC socket input
LED indicator
Match/Set key
User Manual Ver 1.0.0
2024.5
)
LEDController
Input voltage
Input Current
Input signal
Output signal
Scenario Mode
Pixel Dots
Size
Environment
Operationtemperature
Casetemperature(Max.)
IP rating
Package
Size/Grossweight
Output +
DATA1
CLK1
Installation rack
DATA2
CLK2
GND
SPI
5-24VDC
8A
WiFi + RF 2.4GHz
SPI(TTL) x 2
44 default and 10+ customizations
Max.1000
L114×W38×H20mm
O
O
Ta: -30
C ~ +55
C
O
Tc: +65
C
IP20
Color Box: L128 x W128 x H27mm
Suction molding: L265 x H195mm
114.00 mm
20.00 mm
LVD
0.285kg
0.300kg
