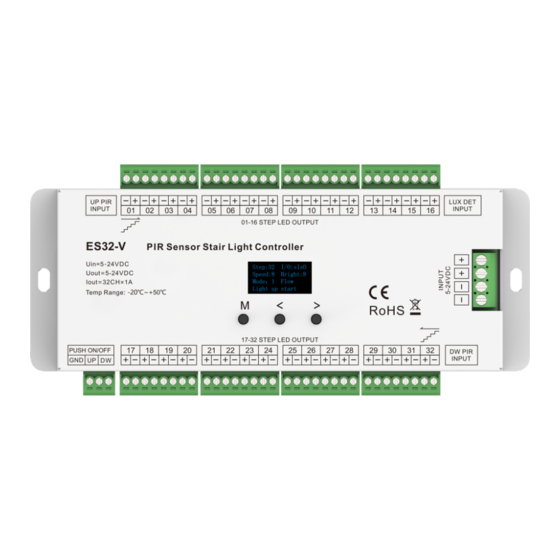

ES32-V
PIR Sensor Stair Light Controller
● Dual PIR sensing + dual push switch 32 step stair light controller with daylight detection function.
●
32 channels constant voltage output drive low voltage LED strip, Max. 1A current per channel.
● OLED display screen, 3-buttons operate.
● 6 run modes are available: flow, chase, trail, float, five-step and one-step,
with 1-8 levels of adjustable speed and brightness.
● Multiple steps can be set to synchronize or sequence on/off.
● 0-3 seconds on/off fade time selectable,
● 5 seconds -10 minutes auto-off delay time selectable.
●
Two push switch can be connected for use as manual switch input.
●
With fast self-testing function.
● Any damaged LED channel in 32 channels can be set disable.
Technical Parameters
Input and Output
Input voltage
5-24VDC
Output voltage
32 x (5-24)VDC
Output current
32CH,1A/CH
Output power
32 x (5-24)W
Output type
Constant voltage
Warranty
Warranty
5 years
Mechanical Structures and Installations
01-16 step constant voltage LED output
Up PIR sensor input
UP PIR
INPUT
01
02
PUSH ON/OFF
17
18
GND UP DW
UP/DW Push switch input
17-32 step constant voltage LED output
Wiring Diagram
Up direction
PIR sensor
UP PIR
INPUT
DW Push switch
PUSH ON/OFF
GND UP DW
UP Push switch
User Manual Ver 1.0.0
2023.11
Sensor data
Sensitive eld
Sensitivity angle
Environment
Operation temperature
Case temperature (Max.)
IP rating
03
04
05
06
07
08
09
10
11
12
13
14
15
01-16 STEP LED OUTPUT
<
<
M
17-32 STEP LED OUTPUT
19
20
21
22
23
24
25
26
27
28
29
30
31
16 x Single color LED strip
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
01-16 STEP LED OUTPUT
<
<
M
17-32 STEP LED OUTPUT
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
16 x Single color LED strip
≤3m
30°(±10°)
O
O
Ta: -20
C ~ +55
C
O
Tc: +85
C
IP20
Daylight sensor input
LUX DET
16
INPUT
OLED Digital display
Power Input +
Power Input -
Setting key
32
DW PIR
INPUT
Down PIR sensor input
Daylight sensor
LUX DET
INPUT
Power Supply
5-24VDC
Constant Voltage
DW PIR
INPUT
Down direction
PIR sensor
Safety and EMC
ETSI EN 301 489-1 V2.2.3
EMC standard (EMC)
ETSI EN 301 489-17 V3.2.4
Safety standard
EN 62368-1:2020+A11:2020
CE,EMC,LVD
Certi cation
Package
Size
W213 x L130 x H45mm
Gross weight
0.65kg
186.00 mm
25.50 mm
186.00 mm
AC100-240V
Note:
The PIR sensor can replace with IR re ection induction
probe(ES-T) or other sensor with 5V level output.
Sensor
Page1
Advertisement
Related Manuals for SKYDANCE ES32-V
Summary of Contents for SKYDANCE ES32-V
- Page 1 ES32-V Sensor PIR Sensor Stair Light Controller ● Dual PIR sensing + dual push switch 32 step stair light controller with daylight detection function. ● 32 channels constant voltage output drive low voltage LED strip, Max. 1A current per channel.
- Page 2 OLED screen and key operations ● Long press M key for 2s, enter system parameters setting state: setting PWM frequency, ON/OFF fade time, daylight sensor threshold, sensor off delay time, push switchoff delay time, system language selection. ●Short press M key, enter light effect parameter setting state: setting step number, turn on/off light mode, brightness and speed level, run mode. ●When in parameters setting state, short press M key to switch multiple parameters, press <...
- Page 3 Factory set default parameters Number of steps is 32, sequential light on, sequential light off, speed level is 6, brightness level is 8, run mode is Flow, PWM freq is 2KHz, on and off fade time is 0s, disable daylight sensor, sensor auto-off delay time is 10s, cancel push auto-off delay time, system language is English. Induction switch control Up direction Connect two PIR sensors to realize staircase light automatic sensing control:...
