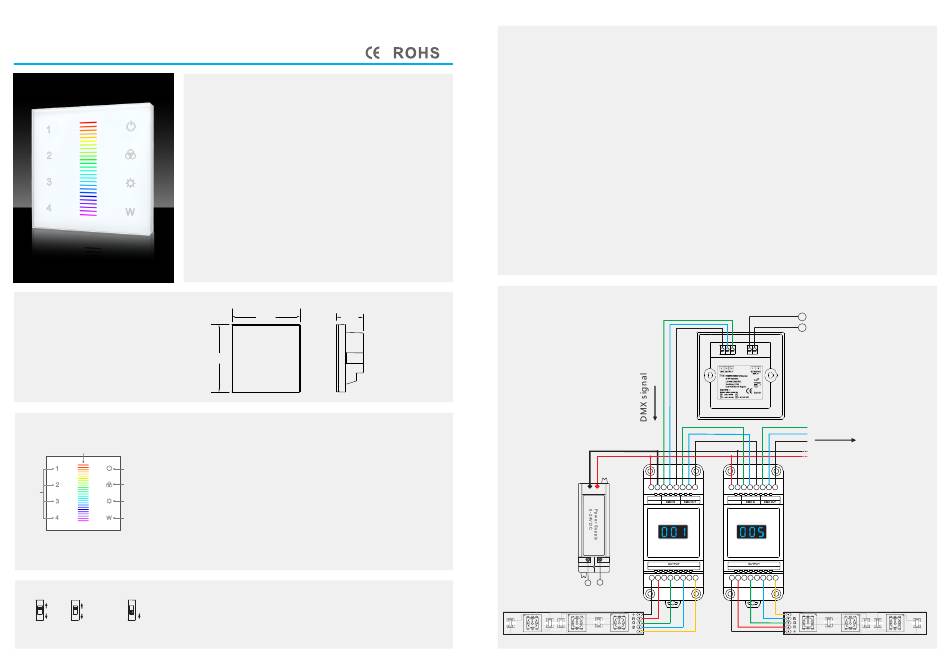

SKYDANCE T14 Instructions

Wall Mounted Touch Panel
RGB/RGBW (2 in 1) LED
DMX512 Master & RF 2.4G Remote
Summar y
● Touch panel RGB/RGBW DMX master,
● Select RGB or RGBW light type, single zone or 4 zone,
whether as a remoter through 3bit DIP switch.
● Output international standard DMX512/1990 signal,
can connect more than one DMX decoder.
● Ultra sensitive high strength glass touch panel with touch
color slide in the middle and backlighting.
● Smooth and accurate color adjustment by touching the
color wheel.
● Independent brightness adjustment of each RGBW channel
to achieve millions of colors.
● Built in 30 change mode optional, adjustable speed and
brightness.
● Adopt 2.4GHz wireless technology, when used as controller,
can accept up to 10 remoter control. when used as remoter,
can remote control multiple RGBW controller.
● Support single zone independent adjustment,
T14
multiple zone synchronous adjustment.
Dimension
Technical Parameters
● Input voltage : AC85~265V
● : DMX+RF(2.4G)
Output type
● Grey levels: 256/CH
● Remote distance: 30m
● Working temperature: -30℃~55℃
● : L86×W86×H36.5mm
Product size
● Net weight: 169g
Key function On/Off : For Single zone turn on/off light.
For 4 Zone: Short press turn on/off current zone light
Color slide Color slide: Touch to change color.
Mode : Short press run next mode, long press 2s run mode-cycle
Bright/Speed
On/Off
Mode
4 Zone
/Scene
Bright
:
W For RGB light
/Speed
long press 1-5s continuous 256 levels adjust saturation.
White
For RGBW light
long press 1-5s continuous 256 levels adjust
1，2，3，4 Zone / Scene:
When used as 4 zone: Short press select and turn on zone light, long press 2s turn off zone light.
When used as 4 scene: Short press run the scene, long press 2s save.
Dip switch setting
ON ON
ON
RGBW 1,2,3,4 ZONE
RGB 1,2,3,4 SCENE RF OUT OFF
1 2 3
Caution: before power on, you must confirm the selection of dip switch.
can also used as RGB/RGBW remoter.
86mm
36.5mm
86mm
:
,
long press 2s turn off all zone light .
.
: Static color, adjust bright, short press 10 levels,
long press 1-5s continuous 256 levels adjustment.
Dynamic mode, adjust speed,short press 10 levels,
long press s the fastest speed.
2
, short press gets white (RGB mix),
, short press turn on/off W channel,
.
W channel brightness
Continuous short press multiple zone key, can synchronous
● Dip switch 1st bit: set downside is RGB type,
set upside("ON") is RGBW type.
● Dip switch 2nd bit: set downside is single zone(4 scene),
set upside("ON") is 4 zone.
● Dip switch 3rd bit: set downside disable remoter,
set upside("ON") enable remoter.
Panel controller match remoter method
● Match: Turn on light, turn off, immediately press on/off key for 5s,
within 5s, press any key of the remoter.
● Delete: Turn on light, turn off, immediately press on/off key for 10s,
delete all matched remoters.
Panel remoter match receiver method
For controller with match key
● Match: Short press match key, within 5s, press on/off or zone key of the panel.
● Delete: Long press match key for 5s, delete all matched remoters.
For smart lamp
● Match: Switch off the power, then switch on power again,
short press on/off or zone key 3 times of the panel within 5s after power on,
the link is done once the light blinks 3 times.
● Delete: Switch off the power, then switch on power again,
short press on/off or zone key 5 times of the panel within 5s after power on,
the unlink is done once the light blinks 5 times.
Wiring diagram
select multiple zone.
RGBW LED strip
V+ V- DI+ DI- GND DO+ DO- GND V+ V- DI+ DI- GND DO+ DO- GND
POWER POWER
DMX decoder DMX decoder
V+ CH1 V+ CH2 V+ CH3 V+ CH4 V+ CH1 V+ CH2 V+
L N
AC110-230V
W
Power input
L
AC85-265V
N
DMX signal
● RGB light type, each zone 3 channel,
Order is red, green, blue, namely
zone 1 is channel 1 ~ 3,
zone 2 is channel 4 ~ 6 ,
zone 3 is channel 7 ~ 9 ,
zone 4 is channel 10 ~ 12.
● RGBW light type, each zone 4 channel,
Order is red, green, blue, white, namely
zone 1 is channel 1 ~ 4,
zone 2 is channel 5 ~ 8,
CH3 V+ CH4
zone 3 is channel 9 ~ 12,
zone 4 is channel 13 ~ 16.
RGBW LED strip
W
