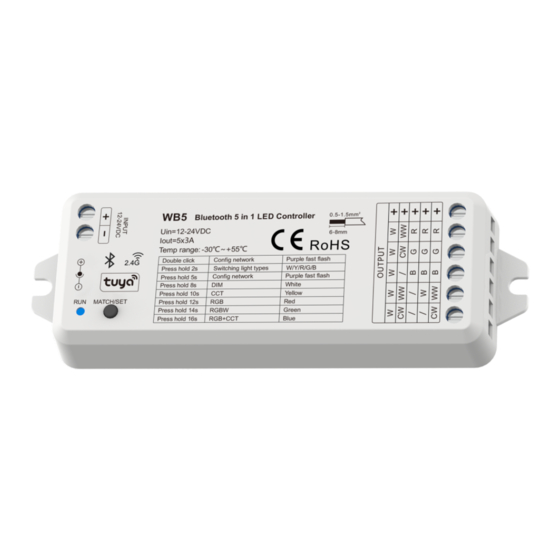

Bluetooth & RF 5 in1 LED Controller
Model No.: WB5
Tuya APP cloud control 5 Channels/1-5 color/DC power socket input/Wireless remote control
/
Features
● 5 in 1 function, used for control RGB, RGBW, RGB+CCT,
color temperature or single color LED strip.
● DC power socket input and 5 channel constant voltage output.
● Tuya APP cloud control, support on/off, RGB color, color temperature
and brightness adjust, delay turn on/off light,timer run, scene edit
and music play function.
● Voice control, support amazon ECHO and TmallGenie smart speaker.
● Match with RF 2.4G remote control optional.
● User need set light type by press key before Tuya APP network connection and match RF remote of the same light type.
● Each WB5 controller can also work as Bluetooth-RF converter, then use Tuya APP to control one or more RF LED controller
or RF LED dimming driver synchronously.
● Light on/off fade time 3s selectable.
Technical Parameters
Input and Output
Input voltage
12-24VDC
Input current
15.5A
5 x (12-24)VDC
Output voltage
Output current
5CH, 3A/CH
5 x (36-72)W
Output power
Output type
Constant voltage
Environment
Operation temperature
Ta: -30
Case temperature (Max.)
Tc: +85
Systemwiring
3G/4G/5G
WiFi
15m
WiFi Router
Mobile Phone
Amazon ECHO
RFRemote(Optional)
PanelRFRemote(Optional)
Note:
he
1. T
above distance is measured in spacious(noobstacle) environment, please refer to the actual test distance before installation.
2.Users can also use the Tuya Bluetooth gateway to realize remote control and voice control.
User Manual Ver 2.0.0
Dimming data
Input signal
Control distance
Dimming gray scale
Dimming range
Dimming curve
PWM frequency
Package
O
O
C ~ +55
C
Size
Gross weight
O
C
Tuya Cloud
15m
Tuya Bluetooth Gateway
30m
SCENE
POWER
MODE
SCENE
30m
SCENE
BRT/SPEED
SCENE
WHITE
Tuya APP+RF 2.4GHz
30m(Barrier-free space)
4096 (2^12) levels
0 -100%
Logarithmic
1000Hz (default)
L120 x W43 x H35mm
0.055kg
30m
DIM
30m
CCT
30m
RGB
30m
RGBW
30m
RFRGB+CCT Controller
RGB+CCT
WB5
1
Safety and EMC
ETSI EN 301 489-1 V2.2.3
EMC standard (EMC)
ETSI EN 301 489-17 V3.2.4
Safety standard(LVD)
EN 62368-1:2020+A11:2020
Radio Equipment(RED)
ETSI EN 300 328 V2.2.2
Certi cation
CE,EMC,LVD,RED
Warranty and Protection
5 years
Warranty
Reverse polarity
Protection
Over-heat
Short circuit
Wired connection
Wireless connection
RFDIM Controller
DIM
RFCCT Controller
CCT
RGB
RFRGB Controller
RFRGBW Controller
RGBW
RGB+CCT
(Optional)
LVD RED
