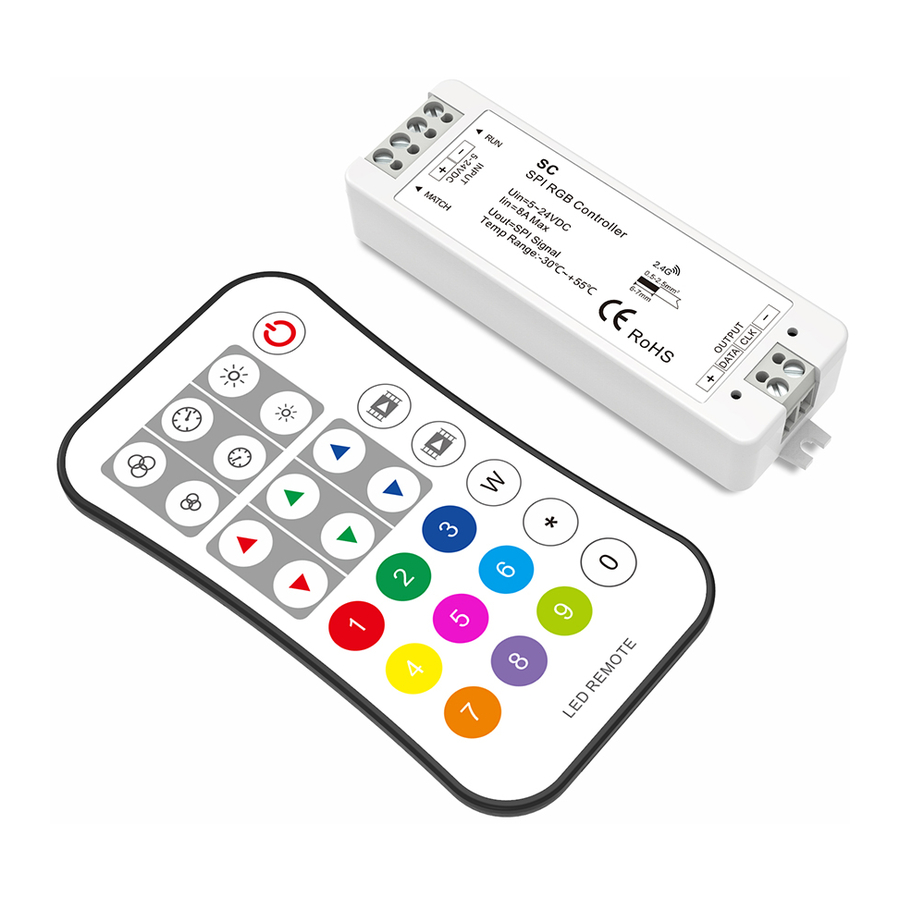

SKYDANCE SC + R9 - RF 2.4G RGB/RGBW LED SPI Controller Set Manual

SC control LED lights with the following 45 kinds of compatible ICs: TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, SK6813, UCS2903, UCS2909, UCS2912, WS2811, WS2812, WS2813, WS2815, TM1829,TLS3001, TLS3002, GW6205, MBI6120, TM1814B(RGBW), SK6812(RGBW), WS2813(RGBW), WS2814(RGBW), UCS8904B(RGBW), LPD6803, LPD1101,D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813, SK9822, TM1914A, GS8206, GS8208, UCS2904, SM16804, SM16825, SM16714(RGBW), UCS2603, UCS5603.

By RF remote controls you can select from a variety of dynamic lighting effects, adjust changing speed and brightness, set control pixels quantity, adjust RGB sequence, select IC type etc.

You can also customize two kinds of scene modes to bring you fantastic color.

Feature

• Mini-style RF 2.4G multi-pixel RGB/RGBW controller with SPI signal output.
• Output SPI signal to control a variety of digital LED lights with the compatible ICs listed above. IC type and R/G/B order can be set through the Remote.
• Adopt 2.4GHz wireless technology, remote distance up to 30m.
• Built in 32 dynamic mode, include horse-race, chase, flow, trail, gradual change style.

Technical parameter

LED Remote

• Output signal: RF(2.4GHz)
• Working voltage: 3VDC(CR2032)
• Standby time: 2 years
• Remote distance: 30m
• Size: L107×W58.5×H9mm

LED Receiver

• Input voltage: 5-24VDC
• Output signal: SPI (DATA / CLK)
• Output dots: 1024 Max
• Size: L97×W33×H18mm

Dimension

Interface instruction

Wiring diagram

SC connect with SPI spot light (TM1803)

SC connect with SPI pixel strip (LPD6803)

Remote function

Mode+/-: Short press switch dynamic mode built in controller, long press 2s Mode+ run mode cycle, long press 2s Mode- run the first mode.
The remote is default 10 dynamic mode, when match with SPI controller which have 32 dynamic mode, please long press 2s Mode+ key firstly.

Speed+/-: Adjust dynamic mode speed, short press 10 levels, long press 2s get the fastest / slowest speed.

Bright+/-: Adjust brightness, short press 10 levels, long press 1-5s for continuous 256 levels adjustment.

R/G/B+/-: Adjust R/G/B brightness respectively, short press 10 levels, long press 1-5s for continuous 256 levels adjustment.

White: Adjust white color, short press turn on/off white(RGB mix), long press 1-5s for continuous 256 levels saturation adjustment.

Scene: Two scene memory, short press recall the scene, long press 2s save current color into the scene.

Match guide

1. Match: Short press match key of the receiver, within 5s, press on/off key of the remote.
2. Delete: Long press match key of the receiver for 5s, delete all matched remote.

RGB change mode list

Compatible IC type

Use remote set SPI digital LED strip

• Set LED strip length [Pixel number(8~1024)]. * + 3 number + * for example:
  *032*, set pixel number to 32.
  *600*, set pixel number to 600.
  *1024*, set pixel number to 1024.
• Set LED strip chip type. * + 2 number + *
  *11*: TM1803
  *12*: TM1809, TM1804, TM1812, UCS1903, UCS1909, UCS1912, SK6813, UCS2903, UCS2909, UCS2912, WS2811, WS2812, WS2813, WS2815
  *13*: TM1829
  *14*: TLS3001,TLS3002
  *15*: GW6205
  *16*: MBI6120
  *17*: TM1814B(RGBW)
  *18*: SK6812(RGBW), WS2813(RGBW), WS2814(RGBW)
  *19*: UCS8904B(RGBW)
  *21*: LPD6803, LPD1101, D705, UCS6909, UCS6912
  *22*: LPD8803, LPD8806
  *23*: WS2801, WS2803
  *24*: P9813
  *25*: SK9822
  *31*: TM1914A
  *32*: GS8206, GS8208
  *33*: UCS2904
  *34*: SM16804
  *35*: SM16825
  *36*: SM16714(RGBW)
  *37*: UCS5603
  *38*: UCS2603
• Set LED strip RGB order. * + 1 number + *
  *1*: RGB, *2*: RBG, *3*: GRB, *4*: GBR, *5*: BRG, *6*: BGR.

Safety information

1. The product shall be installed and serviced by a qualified person.
2. This product is non-waterproof. Please avoid the sun and rain.
3. Good heat dissipation will prolong the working life of the controller, please ensure good ventilation.
4. Please check if the output voltage of any power supplies used comply with the working voltage of the product.
5. Ensure all wire connections and polarities are correct and secure before applying power to avoid any damages to the LED lights.
6. If a fault occurs please return the product to your supplier. Do not attempt to fix this product by yourself.
