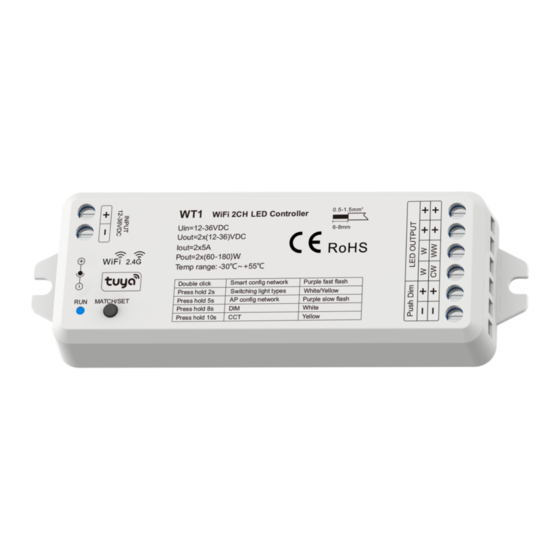

SKYDANCE WT1 Quick Start Manual

WiFi & RF 2CH LED Controller
Model No.: WT1
Tuya APP cloud control/ Voice control/

Features

● Used for control single color or color temperature LED strip.
● DC power socket input and 2 channel constant voltage output.
● Tuya APP cloud control, support on/off, color temperature and brightness adjust,
delay turn on/off light, timer run, scene edit function.
● Voice control, support amazon ECHO and TmallGenie smart speaker.
● Match with RF 2.4G remote control optional.
● User need set light type by press key before Tuya APP network connection and
match RF remote of the same light type.
● Each WT1 controller can also work as WiFi-RF converter, then use Tuya APP to
control one or more RF LED controller or RF LED dimming driver synchronously.
● Connect with external push switch to achieve on/off and 0-100% dimming function.
● Light on/off fade time 3s selectable.

Technical Parameters

Input and Output
Input voltage
12-36VDC
Input current
10.5A
2 x (12-36)VDC
Output voltage
Output current
2CH,5A/CH
2 x (60-180)W
Output power
Output type Constant voltage
Environment
Operation temperature
Ta: -30
Case temperature (Max.)
T c: +85
System
wiring
3G/4G/5G
WiFi
WiFi
Mobile Phone
WiFi Router
Amazon ECHO
RF
Remote(Optional)
ZONE
ZONE
ZONE
ZONE
Panel
RF
Remote(Optional)
Note:

1.
he
T above distance is measured in spacious
(no
obstacle) environment, Please refer to the actual test distance before installation.
2.
Please
check
if
the
WiFi router
net
in
2.4G
band, the
5G
band is
not
available, and do
not
hide
your
router
network.
3. Please
keep
the
distance
between
WT1 devices
and
router
close, and
check
the
WiFi
signals.
User Manual Ver 2.0.1
2 Channels/Push-Dim/DC power socket input/Wireless remote control
Dimming data
Input signal
Control distance
Dimming gray scale
Dimming range
Dimming curve
PWM frequency
Package
O C ~ +55 O C Size
Gross weight
O
C
Tuya Cloud
15m
WT1
WT1
30m
WT1
POWER
SCENE
30m
WT1
SCENE
SCENE
Tuya APP
+
RF 2.4GHz
+
Push
Dim
30m(Barrier-free space)
4096 (2^12) levels
0 -100%
Logarithmic
2000Hz (default)
L120 x W43 x H35mm
0.055kg
30m
DIM
RF
DIM Controller
30m
RF
DIM Controller
DIM
30m
CCT RF
CCT Controller
30m
RF
CCT Controller
CCT
1
Safety and EMC
ETSI EN 301 489-1 V2.2.3
EMC standard (EMC)
ETSI EN 301 489-17 V3.2.4
Safety standard(LVD)
EN 62368-1:2020+A11:2020
Radio Equipment(RED)
ETSI EN 300 328 V2.2.2
Certi cation CE,EMC,LVD,RED
Warranty and Protection
Warranty 5 years
Reverse polarity
Protection
Over-heat
Short circuit
Wired connection
Wireless connection
DIM
DIM
CCT
CCT
LVD RED
