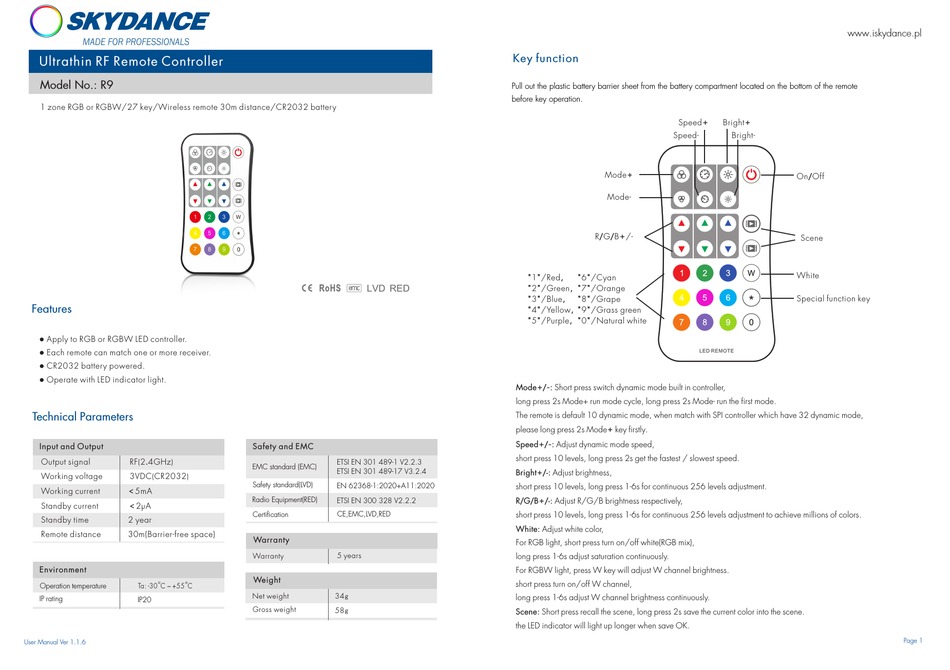

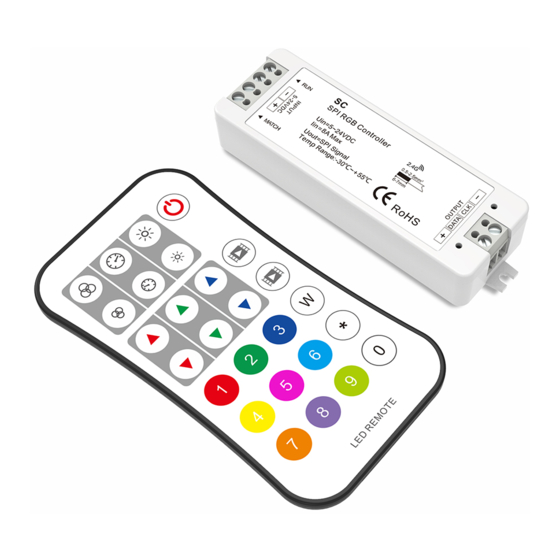

SKYDANCE R9 Instructions

Ultrathin RF Remote Controller
Model No.: R9
1 zone RGB or RGBW/27 key/Wireless remote 30m distance/CR2032 batter y

Features

● Apply to RGB or RGBW LED controller.
● Each remote can match one or more receiver.
● C 2032 atter y powered. R b
● Operate with LED indicator light.

Technical Parameters

Input and Output

Output signal RF 2.4GHz ( )
Working voltage 3VDC CR2032 ( )
Working current ＜5mA
Standby current ＜2μA
Standby time 2 year
Remote distance 30m(Barrier-free space)
Environment
O O
Operation temperature Ta: -30 C ~ +55 C
IP rating
IP20
User Manual Ver 1.1.6
LVD RED

Safety and EMC

ETSI EN 301 489-1 V2.2.3
EMC standard (EMC)
ETSI EN 301 489-17 V3.2.4
Safety standard(LVD)
EN 62368-1:2020+A11:2020
Radio Equipment(RED)
ETSI EN 300 328 V2.2.2
CE,EMC,LVD,RED

Certification

Warranty
5 years
Warranty
Weight
Net weight 34g
Gross weight 58g

Key function

Pull out the plastic battery barrier sheet from the battery compartment located on the bottom of the remote
before key operation.
Speed+
Speed-
Mode+
Mode-
R/G/B /- +
"1"/Red， "6"/Cyan
"2"/Green， "7"/Orange
"3"/Blue， "8"/Grape
"4"/Yellow， "9"/Grass green
"0"/Natural white
"5"/Purple，
Mode+/-: Short press switch dynamic mode built in controller
long press 2s Mode+ run mode cycle, long press 2s Mode- run the first mode.
The remote is default 10 dynamic mode, when match with SPI controller which have 32 dynamic mode,
please long press 2s Mode+ key firstly.
Speed+/-: Adjust dynamic mode speed,
short press 10 levels, long press 2s get the fastest / slowest speed.
Bright+/-: Adjust brightness,
short press 10 levels, long press 1-6s for continuous 256 levels adjustment.
R/G/B+/ : Adjust R/G/B brightness respectively, -
short press 10 levels, long press 1-6s for continuous 256 levels adjustment to achieve millions of colors.
White: Adjust white color,
For RGB light, short press turn on/off white(RGB mix),
long press 1-6s adjust saturation continuously.
For RGBW light, press W key will adjust W channel brightness.
short press turn on/off W channel,
long press 1-6s adjust W channel brightness continuously.
Scene: Short press recall the scene, long press 2s save
the LED indicator will light up longer when save OK.
www.iskydance.pl
Bright+
Bright-
On/Off

Scene

White
Special function key
,
the current color into the scene .
Page 1
