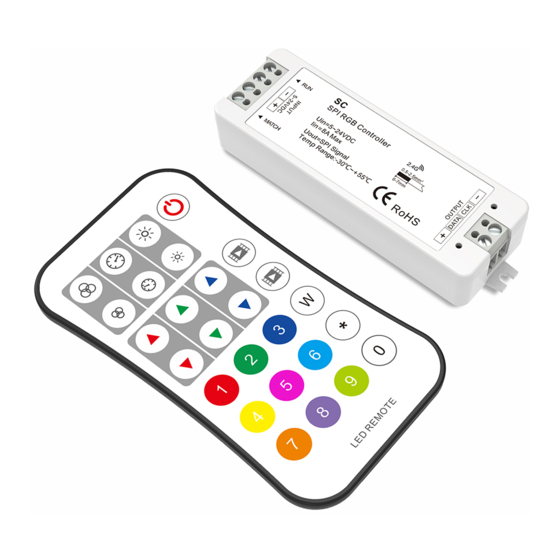

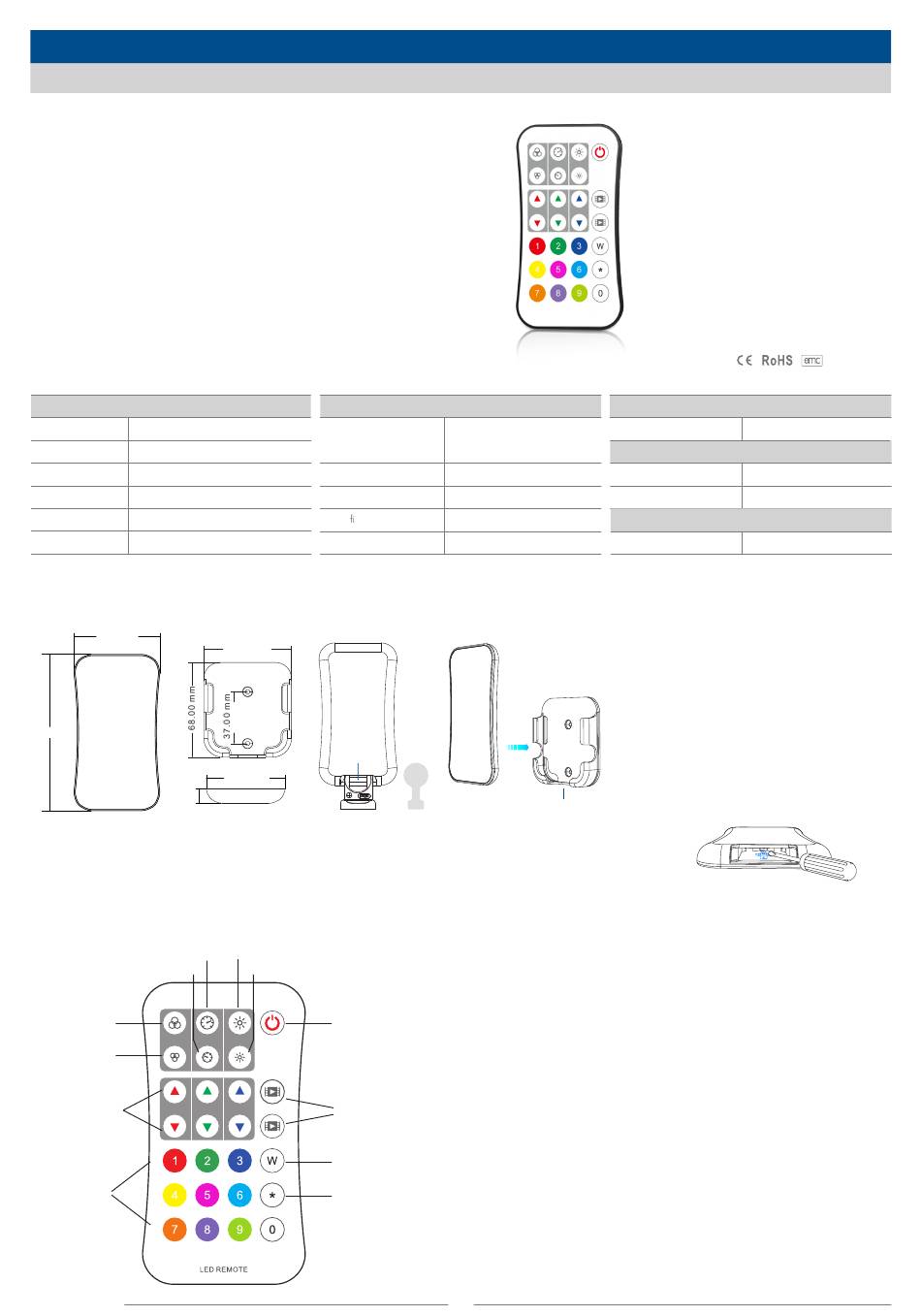

SKYDANCE R9 Quick Start Manual

Ultrathin RGB/RGBW RF Remote Controller
Model No.: R9
1 zone RGB or RGBW / 27 key / Wireless remote 30m distance / CR2032 batter y

Features

● Apply to RGB or RGBW LED controller.
● Each remote can match one or more receiver.
● C 2032 atter y powered. R b
● Operate with LED indicator light.

Technical Parameters

Input and Output
Output signal RF (2.4 GH z)
Working voltage 3 VDC( AAAx2)
Working current <5mA
Standby current <10μA
Standby time 1 year
Remote distance 30m(Barrier-free space)

Mechanical Structures and Installations

58.5mm
107mm
9mm

Key function

Pull out the plastic battery barrier sheet from the battery compartment located on the bottom of the remote before key operation.
Speed+
Speed-
Mode+
Mode-
R G/B+/-
/
"1"/Red,
"2"/Green,
"3"/Blue,
"4"/Yellow,
"5"/Purple,
"6"/Cyan
"7"/Orange
"8"/Grape
"9"/Grass green
"0"/Natural white
User Manual Ver 1.1.8
Safety and EMC
EMC standard (EMC)
Safety standard(LVD)
Radio Equipment(RED)
Certi cation
63.00 mm
C 2032 Battery R
58.5mm
Note: If the LED indicator is not on when press key,
it is due to dead battery or bad contact caused by multiple plugging,
please replace the battery, or raise the battery shrapnel with a screwdriver.
Bright+
Bright-
On/Off
Scene
White
Special
function key
ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-17 V3.2.4
EN 62368-1:2020+A11:2020
ETSI EN 300 328 V2.2.2
CE,EMC,LVD,RED
Back holder
Mode+/-: Short press switch dynamic mode built in controller, long press 2s
Mode+ run mode cycle, long press 2s Mode- run the first mode.
The remote is default 10 dynamic mode, when match with SPI controller which
have 32 dynamic mode, please long press 2s Mode+ key firstly.
Speed+/-: Adjust dynamic mode speed,
short press 10 levels, long press 2s get the fastest / slowest speed.
Bright+/-: Adjust brightness,
short press 10 levels, long press 1-6s for continuous 256 levels adjustment.
R/G/B+/-: Adjust R/G/B brightness respectively, short press 10 levels,
long press 1-6s for continuous 256 levels adjustment to achieve millions of colors.
White: Adjust white color, for RGB light, short press turn on/off white(RGB mix),
long press 1-6s adjust saturation continuously.
For RGBW light, press W key will adjust W channel brightness.
short press turn on/off W channel,
long press 1-6s adjust W channel brightness continuously.
Scene: Short press recall the scene, long press 2s save the current color into the scene.
The LED indicator will light up longer when save OK.
1
Environment
Operation temperature
O
Ta: -30 C ~ +55
Package
L114 x W65 x H20mm
Size
Gross weight 0.058kg
Warranty
Warranty 5 years
To fix the remote, two options are offered for selection:
Option 1:
fix the remote' back holder on the wall with two screws.
Option 2:
adhere the remote' back holder to the wall with paster.
LVD RED
O
C
