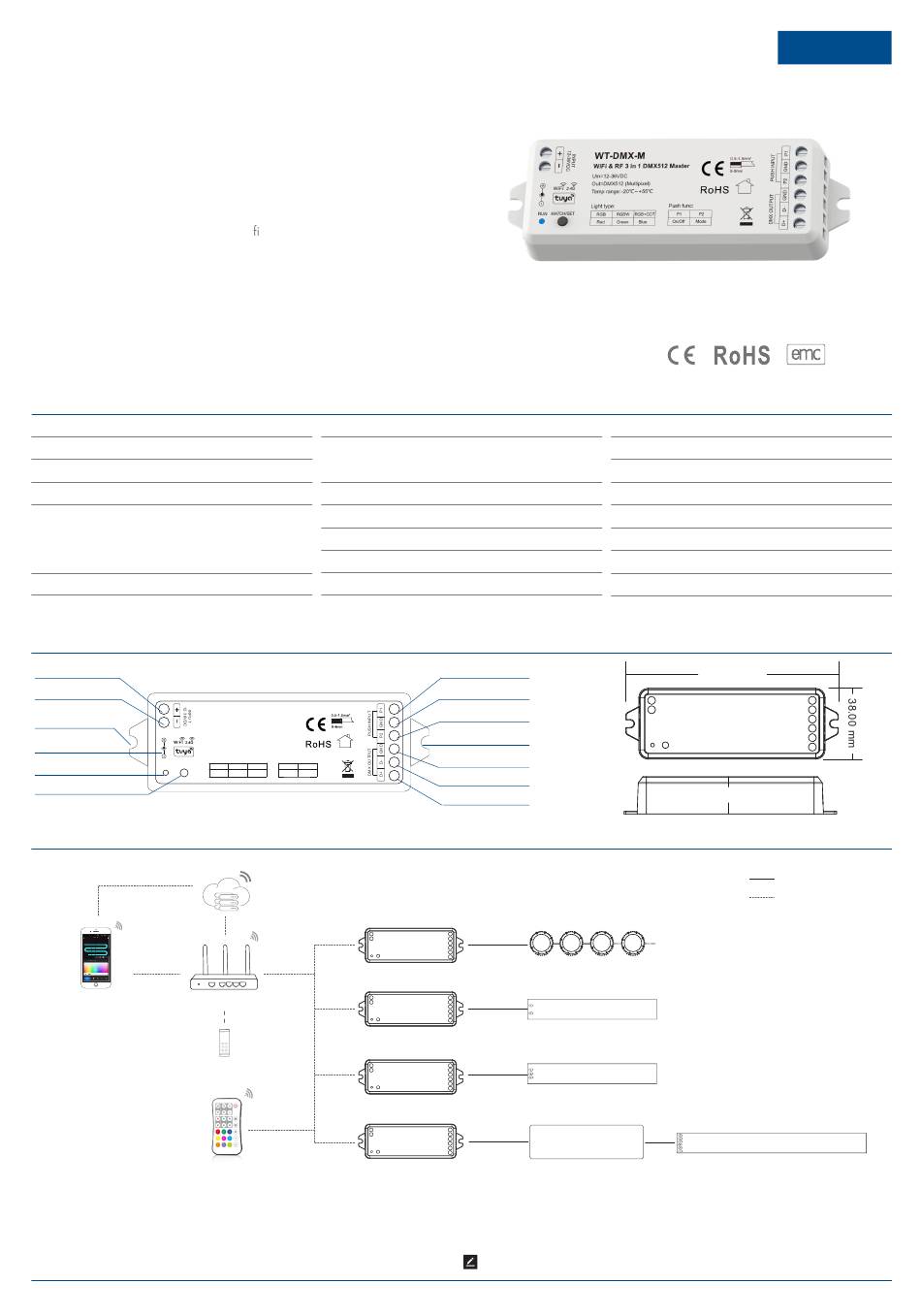

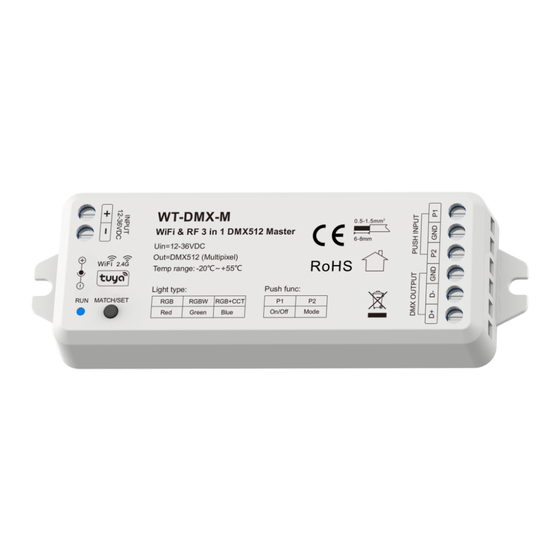

WT-DMX-M
WiFi& RF 3 in 1 DMX512Master
● WiFi & RF RGB/RGBW/RGB+CCT 3-in-1 DMX512 master, Max 512 channel output.
● Comply with the DMX512 standard protocols,
compatible with DMX decoder from other supplier.
● Tuya Smart APP cloud control.
● Voice control, support for Amazon Alexa, Google Assistant, Tmall Genie
and Xiaodu voice assistant.
● Painted segment color mixing: full color lling, color pencil segment painting,
eraser segment light off.
● Rich dynamic effects: 44 default and 10+ custom dynamic scenarios, 16 variations.
● 3 APP music rhythms.
● Connect with external two push switch, supports on/off, brightness adjustment,
dynamic mode change type and speed settings.
● Match with RF 2.4G remote control optional, such as R9.
Technical Parameters
Input and Output
Input voltage
12-36VDC
Input signal
WiFi, RF 2.4G, Push switch
Output signal
DMX512 (multipixel)
Max 512 Channel
RGB: 170 pixels
Channel number
RGBW: 128 pixels
(Pixel Dots)
RGB+CCT: 102 pixels
Mechanical Structures and Installations
Power input +
Power input -
Installation rack
DC socket input
LED indicator
RUN
MATCH/SET
Match/Set key
SystemWiring
3G/4G/5G
WiFi
RGB-SPI
WiFi
Mobile Phone
WiFi Router
Smart speaker
Note:
1.Theabovedistanceismeasuredinspacious(noobstacle)environment, Pleaserefertotheactualtestdistancebeforeinstallation.
2.PleasecheckiftheWiFi routernetin2.4Gband, the5Gband isnotavailable, and donothideyourrouternetwork.
3. PleasekeepthedistancebetweenWT-DMX-M devicesandrouterclose, andchecktheWiFisignals.
4. WiFi signal strength detection: open the main interface of social security, click
User Manual Ver 1.0.0
2024.4
Safety and EMC
EMC standard (EMC)
Radio Equipment (RED)
Certification
Warranty
Warranty
Protection
WT-DMX-M
WiFi & RF 3 in 1 DMX512 Master
Uin=12-36VDC
Out=DMX512 (Multipixel)
Temp range: -20℃~+55℃
Light type:
Push func:
RGB
RGBW
RGB+CCT
P1
P2
On/Off
Mode
Red
Green
Blue
Tuya Cloud
15m
WT-DMX-M
WT-DMX-M
WT-DMX-M
30m
WT-DMX-M
ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-17 V3.2.4
ETSI EN 300 328 V2.2.2
CE, EMC, RED
5 years
Reverse polarity
Pushswitch1
Pushswitchcom
Pushswitch2
Installation rack
GND
DMX output -
DMX output +
DMX spot light
DMX pixel strip
DMX digital light tube
DMX512Decoder
enter the device interface, click "check device network" for testing.
DMX512
Environment
Operation temperature
O
Ta: -20
C ~ +55
O
Case temperature (Max.)
Tc: +65
C
IPrating
IP20
Package
Size
L120xW43xH27mm
0.055kg
Gross weight
114.00 mm
20.00 mm
Wired connection
Wireless connection
RGB/RGBW/RGB+CCTLEDstrip
RED
O
C
Page 1
